GroveSpeaker Class Reference

API for the Grove Speaker. More...

Detailed Description

• ID: grovespeaker
• Name: Grove Speaker
• Category: sound
• Manufacturer: seeed
• Connection: gpio
• Kit: hak

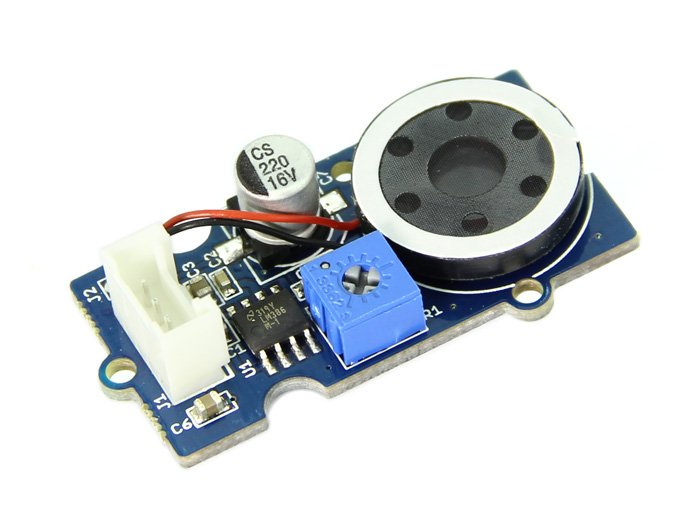

UPM module for the Grove Speaker. This sensor can generate different tones and sounds depending on the frequency of the input signal.

  // Instantiate a Grove Speaker on digital pin D2
  upm::GroveSpeaker* speaker = new upm::GroveSpeaker(2);

  // Play all 7 of the lowest notes
  speaker->playAll();

  // Play a medium C-sharp
  speaker->playSound('c', true, "med");

Public Member Functions
	GroveSpeaker (int pin)
	~GroveSpeaker ()
void	playAll ()
void	playSound (char letter, bool sharp, std::string vocalWeight)

Constructor & Destructor Documentation

GroveSpeaker

(

int

pin

)

Grove Speaker constructor

Parameters

pin	Digital pin to use

~GroveSpeaker

(

)

GroveSpeaker destructor

Member Function Documentation

void playAll

(

)

Plays all alto notes (lowest notes)

Here is the call graph for this function:

void playSound	(	char	letter,
		bool	sharp,
		std::string	vocalWeight
	)

Plays a sound and a note whether it's sharp or not

Parameters

letter	Character name of the note ('a', 'b', 'c', 'd', 'e', 'f', or 'g')
sharp	If true, plays a sharp version of the note; otherwise, does not play the note
vocalWeight	String to determine whether to play a low ("low"), a medium ("med"), or a high ("high") note

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/grovespeaker/grovespeaker.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/grovespeaker/grovespeaker.cxx
