mraa_pininfo_t Struct Reference

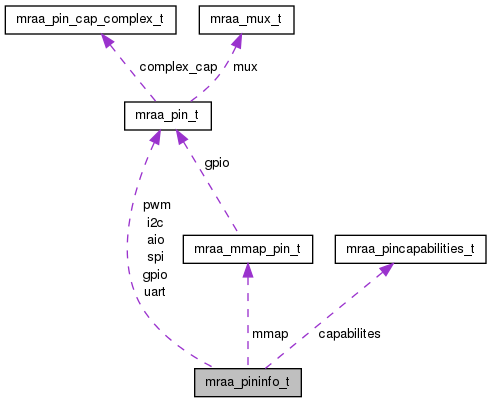

Collaboration diagram for mraa_pininfo_t:

Detailed Description

A Structure representing a physical Pin.

Data Fields
char	name [8]
mraa_pincapabilities_t	capabilites
mraa_pin_t	gpio
mraa_pin_t	pwm
mraa_pin_t	aio
mraa_mmap_pin_t	mmap
mraa_pin_t	i2c
mraa_pin_t	spi
mraa_pin_t	uart

Field Documentation

char name[8]

Pin's real world name

mraa_pincapabilities_t capabilites

Pin Capabiliites

mraa_pin_t gpio

GPIO structure

mraa_pin_t pwm

PWM structure

mraa_pin_t aio

Anaglog Pin

mraa_mmap_pin_t mmap

GPIO through memory

mraa_pin_t i2c

i2c bus/pin

mraa_pin_t spi

spi bus/pin

mraa_pin_t uart

uart module/pin

---

The documentation for this struct was generated from the following file:

• /var/lib/jenkins/workspace/mraa-doc/api/mraa/common.h
