TH02 Class Reference

API for th02 temperature & humidity sensor library. More...

Detailed Description

• ID: th02

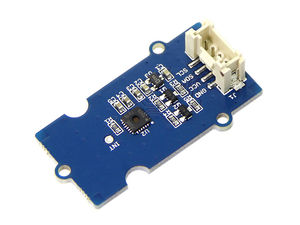

• Name: TH02 Temperature & Humidity Sensor
• Other Names: Grove Temperature & Humidity Sensor (High Accuracy & Mini)
• Category: temp
• Manufacturer: seeed
• Link: http://www.seeedstudio.com/wiki/Grove_-_Tempture%26Humidity_Sensor_(High-Accuracy_%26Mini)_v1.0
• Connection: i2c

This file defines the TH02 interface for libth02

NOTE: For use on the Edison with the Arduino breakout board, the Edison must be set to 3v rather than 5v.

    float temperature = 0.0;
    float humidity = 0.0;
    sensor = new upm::TH02 ();

    while (!doWork) {
        temperature = sensor->getTemperature ();
        humidity = sensor->getHumidity ();
        std::cout << "Temperature = " << temperature << ", Humidity = " << humidity << std::endl;
        usleep (500000);
    }

Public Member Functions
	TH02 (int bus=0, uint8_t addr=TH02_ADDR)
	~TH02 ()
float	getTemperature ()
float	getHumidity ()
bool	getStatus ()
std::string	name ()

Constructor & Destructor Documentation

TH02	(	int	bus = 0,
		uint8_t	addr = TH02_ADDR
	)

Instanciates a TH02 object

~TH02

(

)

TH02 object destructor, basicaly it close i2c connection.

Member Function Documentation

float getTemperature

(

void

)

Get the temperature value from sensor.

Here is the call graph for this function:

float getHumidity

(

void

)

Get the humidity value from sensor.

Here is the call graph for this function:

bool getStatus

(

)

Get the sensor's status.

Here is the caller graph for this function:

std::string name ( )

inline

Return name of the component

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/th02/th02.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/th02/th02.cxx
