API for the AdafruitMS1438 Motor Shield. More...

Detailed Description

ID: adafruitms1438

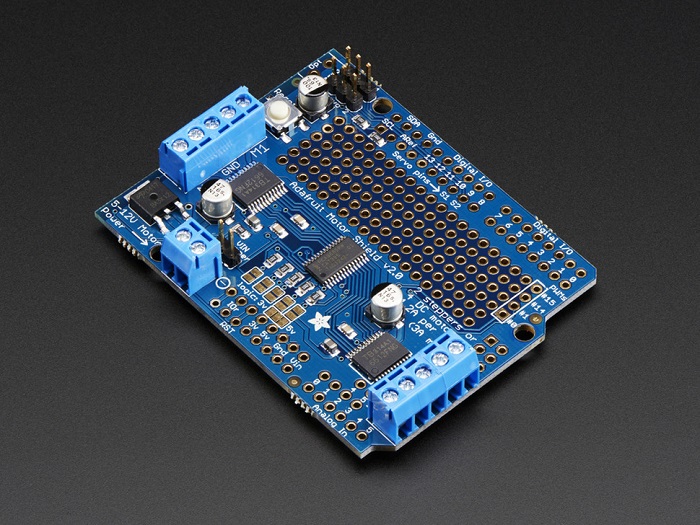

Name: Adafruit Motor Shield
Category: motor
Manufacturer: adafruit
Link: http://www.adafruit.com/products/1438
Connection: i2c

This class implements support for the stepper and DC motors that can be connected to this Motor Shield. Note: the two servo connections are not controlled by the PCA9685 controller (or this class). They are connected directly to digital PWM pins 9 and 10 on the Arduino* breakout board.

An example using a DC motor connected to M3

  // Instantiate an Adafruit MS 1438 on I2C bus 0
  upm::AdafruitMS1438 *ms =
    new upm::AdafruitMS1438(ADAFRUITMS1438_I2C_BUS,
                            ADAFRUITMS1438_DEFAULT_I2C_ADDR);
  // Setup for use with a DC motor connected to the M3 port
  // set a PWM period of 50Hz
  ms->setPWMPeriod(50);
  // disable first, to be safe
  ms->disableMotor(AdafruitMS1438::MOTOR_M3);
  // set speed at 50%
  ms->setMotorSpeed(AdafruitMS1438::MOTOR_M3, 50);
  ms->setMotorDirection(AdafruitMS1438::MOTOR_M3, AdafruitMS1438::DIR_CW);
  cout << "Spin M3 at half speed for 3 seconds, then reverse for 3 seconds."
       << endl;
  ms->enableMotor(AdafruitMS1438::MOTOR_M3);
  sleep(3);
  cout << "Reversing M3" << endl;
  ms->setMotorDirection(AdafruitMS1438::MOTOR_M3, AdafruitMS1438::DIR_CCW);
  sleep(3);
  cout << "Stopping M3" << endl;
  ms->disableMotor(AdafruitMS1438::MOTOR_M3);
  cout << "Exiting" << endl;

An example using a stepper motor connected to M1 & M2

  // Instantiate an Adafruit MS 1438 on I2C bus 0
  upm::AdafruitMS1438 *ms =
    new upm::AdafruitMS1438(ADAFRUITMS1438_I2C_BUS,
                            ADAFRUITMS1438_DEFAULT_I2C_ADDR);
  // Setup for use with a stepper motor connected to the M1 & M2 ports
  // set a PWM period of 50Hz
  // disable first, to be safe
  ms->disableStepper(AdafruitMS1438::STEPMOTOR_M12);
  // configure for a NEMA-17, 200 steps per revolution
  ms->stepConfig(AdafruitMS1438::STEPMOTOR_M12, 200);
  // set speed at 10 RPM's
  ms->setStepperSpeed(AdafruitMS1438::STEPMOTOR_M12, 10);
  ms->setStepperDirection(AdafruitMS1438::STEPMOTOR_M12,
                          AdafruitMS1438::DIR_CW);
  // enable
  cout << "Enabling..." << endl;
  ms->enableStepper(AdafruitMS1438::STEPMOTOR_M12);
  cout << "Rotating 1 full revolution at 10 RPM speed." << endl;
  ms->stepperSteps(AdafruitMS1438::STEPMOTOR_M12, 200);
  cout << "Sleeping for 2 seconds..." << endl;
  sleep(2);
  cout << "Rotating 1/2 revolution in opposite direction at 10 RPM speed."
       << endl;
  ms->setStepperDirection(AdafruitMS1438::STEPMOTOR_M12,
                          AdafruitMS1438::DIR_CCW);
  ms->stepperSteps(AdafruitMS1438::STEPMOTOR_M12, 100);
  cout << "Disabling..." << endl;
  ms->disableStepper(AdafruitMS1438::STEPMOTOR_M12);
  cout << "Exiting" << endl;

Public Types
enum	DIRECTION_T { DIR_NONE = 0x00, DIR_CW = 0x01, DIR_CCW = 0x02 }

enum	DCMOTORS_T { MOTOR_M1 = 0, MOTOR_M2 = 1, MOTOR_M3 = 2, MOTOR_M4 = 3 }

enum	STEPMOTORS_T { STEPMOTOR_M12 = 0, STEPMOTOR_M34 = 1 }

Public Member Functions
	AdafruitMS1438 (int bus, uint8_t address=ADAFRUITMS1438_DEFAULT_I2C_ADDR)

	~AdafruitMS1438 ()

uint32_t	getMillis (STEPMOTORS_T motor)

void	initClock (STEPMOTORS_T motor)

void	setPWMPeriod (float hz)

void	enableMotor (DCMOTORS_T motor)

void	disableMotor (DCMOTORS_T motor)

void	enableStepper (STEPMOTORS_T motor)

void	disableStepper (STEPMOTORS_T motor)

void	setMotorSpeed (DCMOTORS_T motor, int speed)

void	setStepperSpeed (STEPMOTORS_T motor, int speed)

void	setMotorDirection (DCMOTORS_T motor, DIRECTION_T dir)

void	setStepperDirection (STEPMOTORS_T motor, DIRECTION_T dir)

void	stepConfig (STEPMOTORS_T motor, unsigned int stepsPerRev)

void	stepperSteps (STEPMOTORS_T motor, unsigned int steps)

Constructor & Destructor Documentation

AdafruitMS1438	(	int	bus,
		uint8_t	address = `ADAFRUITMS1438_DEFAULT_I2C_ADDR`
	)

AdafruitMS1438 constructor

Parameters

bus	I2C bus to use
address	Address for this sensor

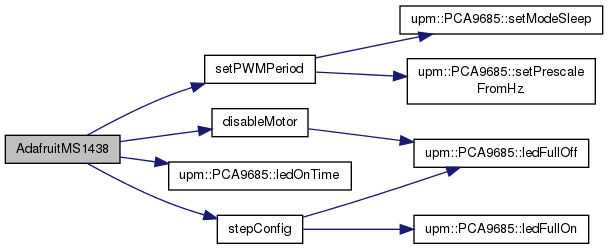

Here is the call graph for this function:

~AdafruitMS1438 ( )

AdafruitMS1438 destructor

Member Function Documentation

uint32_t getMillis ( STEPMOTORS_T motor )

Returns the number of milliseconds elapsed since initClock(...) was last called.

Returns: Elapsed milliseconds

Here is the caller graph for this function:

void initClock ( STEPMOTORS_T motor )

Resets the clock

Here is the caller graph for this function:

void setPWMPeriod ( float hz )

Sets the PWM period. Note: this applies to all PWM channels.

Parameters

hz	Sets the PWM period

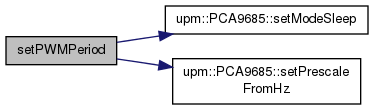

Here is the call graph for this function:

Here is the caller graph for this function:

void enableMotor ( DCMOTORS_T motor )

Enables PWM output for a motor

Parameters

motor DC motor to enable

Here is the call graph for this function:

void disableMotor ( DCMOTORS_T motor )

Disables PWM output for a motor

Parameters

motor DC motor to disable

Here is the call graph for this function:

Here is the caller graph for this function:

void enableStepper ( STEPMOTORS_T motor )

Enables output for a stepper motor

Parameters

motor Stepper motor to enable

Here is the call graph for this function:

void disableStepper ( STEPMOTORS_T motor )

Disable output for a stepper motor

Parameters

motor Stepper motor to disable

Here is the call graph for this function:

void setMotorSpeed	(	DCMOTORS_T	motor,
		int	speed
	)

set the speed of a DC motor. Values can range from 0 (off) to 100 (full speed).

Parameters

motor	the DC motor to configure
speed	speed to set the motor to

Here is the call graph for this function:

void setStepperSpeed	(	STEPMOTORS_T	motor,
		int	speed
	)

Sets the speed of a stepper in revolutions per minute (RPM)

Parameters

motor	DC motor to configure
speed	Speed to set the motor to

void setMotorDirection	(	DCMOTORS_T	motor,
		DIRECTION_T	dir
	)

Sets the direction of a DC motor, clockwise or counterclockwise

Parameters

motor	DC motor to configure
dir	Direction to set the motor in

Here is the call graph for this function:

void setStepperDirection	(	STEPMOTORS_T	motor,
		DIRECTION_T	dir
	)

Sets the direction of a stepper motor, clockwise or counterclockwise

Parameters

motor	Stepper motor to configure
dir	Direction to set the motor in

void stepConfig	(	STEPMOTORS_T	motor,
		unsigned int	stepsPerRev
	)

Sets a stepper motor configuration

Parameters

motor	Stepper motor to configure
stepsPerRev	Number of steps to complete a full revolution

Here is the call graph for this function:

Here is the caller graph for this function:

void stepperSteps	(	STEPMOTORS_T	motor,
		unsigned int	steps
	)

Steps a stepper motor a specified number of steps

Parameters

motor	Stepper motor to step
steps	Number of steps to move the stepper motor

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/var/lib/jenkins/workspace/upm-doc-stable/src/adafruitms1438/adafruitms1438.h
/var/lib/jenkins/workspace/upm-doc-stable/src/adafruitms1438/adafruitms1438.cxx
