GFX Class Reference

GFX helper class. More...

Detailed Description

This file is used by the screen.

Public Member Functions
	GFX (int width, int height, uint8_t *screenBuffer, const unsigned char *font)
	~GFX ()
virtual void	setAddrWindow (uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1)=0
virtual void	drawPixel (int16_t x, int16_t y, uint16_t color)=0
virtual void	refresh ()=0
void	drawChar (int16_t x, int16_t y, uint8_t data, uint16_t color, uint16_t bg, uint8_t size)
void	print (std::string msg)
mraa_result_t	setPixel (int x, int y, uint16_t color)
void	fillScreen (uint16_t color)
void	fillRect (int16_t x, int16_t y, int16_t w, int16_t h, uint16_t color)
void	drawFastVLine (int16_t x, int16_t y, int16_t h, uint16_t color)
void	drawLine (int16_t x0, int16_t y0, int16_t x1, int16_t y1, uint16_t color)
void	drawTriangle (int16_t x0, int16_t y0, int16_t x1, int16_t y1, int16_t x2, int16_t y2, uint16_t color)
void	drawCircle (int16_t x, int16_t y, int16_t r, uint16_t color)
void	setCursor (int16_t x, int16_t y)
void	setTextColor (uint16_t textColor, uint16_t textBGColor)
void	setTextSize (uint8_t size)
void	setTextWrap (uint8_t wrap)

Data Fields
int	m_height
int	m_width
int	m_textSize
int	m_textColor
int	m_textBGColor
int	m_cursorX
int	m_cursorY
int	m_wrap
uint8_t *	m_map

Protected Attributes
const int16_t	WIDTH
const int16_t	HEIGHT
const unsigned char *	m_font

Constructor & Destructor Documentation

GFX	(	int	width,
		int	height,
		uint8_t *	screenBuffer,
		const unsigned char *	font
	)

Instantiates a GFX object

Parameters

width	Screen width
height	Screen height
screenBuffer	Pointer to the screen buffer
font	Pointer to the font map

~GFX

(

)

GFX object destructor

Member Function Documentation

virtual void setAddrWindow ( uint8_t  x0, uint8_t  y0, uint8_t  x1, uint8_t  y1  )

pure virtual

Sets the window address

Parameters

x0	First coordinate
y0	First coordinate
x1	Second coordinate
y1	Second coordinate

Implemented in ST7735.

virtual void drawPixel ( int16_t  x, int16_t  y, uint16_t  color  )

pure virtual

Sends a pixel color (RGB) to the chip. Must be implemented by the inherited class.

Parameters

x	Axis on the horizontal scale
y	Axis on the vertical scale
color	RGB value

Implemented in ST7735.

virtual void refresh ( )

pure virtual

Copies the buffer to the chip via the SPI.

Implemented in ST7735.

void drawChar	(	int16_t	x,
		int16_t	y,
		uint8_t	data,
		uint16_t	color,
		uint16_t	bg,
		uint8_t	size
	)

Parameters

x	Axis on the horizontal scale
y	Axis on the vertical scale
data	Character to write
color	Character color
bg	Character background color
size	Size of the font

Here is the call graph for this function:

Here is the caller graph for this function:

void print

(

std::string

msg

)

Prints a message on the screen

Parameters

msg	Message to print

Here is the call graph for this function:

mraa_result_t setPixel	(	int	x,
		int	y,
		uint16_t	color
	)

Prints a message on the screen

Parameters

x	Axis on the horizontal scale
y	Axis on the vertical scale
color	Pixel color

Here is the caller graph for this function:

void fillScreen

(

uint16_t

color

)

Fills the screen with a selected color

Parameters

color

Selected color

Here is the call graph for this function:

Here is the caller graph for this function:

void fillRect	(	int16_t	x,
		int16_t	y,
		int16_t	w,
		int16_t	h,
		uint16_t	color
	)

Fills a rectangle with a selected color

Parameters

x	Axis on the horizontal scale (top-left corner)
y	Axis on the vertical scale (top-left corner)
w	Distanse from x
h	Distanse from y
color	Selected color

Here is the call graph for this function:

Here is the caller graph for this function:

void drawFastVLine	(	int16_t	x,
		int16_t	y,
		int16_t	h,
		uint16_t	color
	)

Draws a line on the vertical scale

Parameters

x	Axis on the horizontal scale
y	Axis on the vertical scale
h	Distanse from y
color	Selected color

Here is the call graph for this function:

Here is the caller graph for this function:

void drawLine	(	int16_t	x0,
		int16_t	y0,
		int16_t	x1,
		int16_t	y1,
		uint16_t	color
	)

Draws a line from coordinate C0 to coordinate C1

Parameters

x0	First coordinate
y0	First coordinate
x1	Second coordinate
y1	Second coordinate
color	selected color

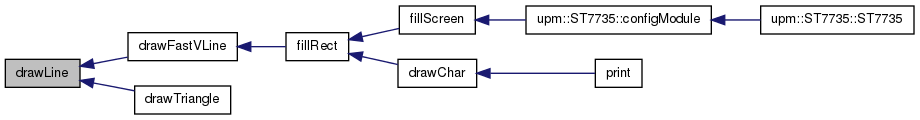

Here is the call graph for this function:

Here is the caller graph for this function:

void drawTriangle	(	int16_t	x0,
		int16_t	y0,
		int16_t	x1,
		int16_t	y1,
		int16_t	x2,
		int16_t	y2,
		uint16_t	color
	)

Draws a triangle

Parameters

x0	First coordinate
y0	First coordinate
x1	Second coordinate
y1	Second coordinate
x2	Third coordinate
y2	Third coordinate
color	Selected color

Here is the call graph for this function:

void drawCircle	(	int16_t	x,
		int16_t	y,
		int16_t	r,
		uint16_t	color
	)

Draws a circle

Parameters

x	Center of the circle on the horizontal scale
y	Center of the circle on the vertical scale
r	Radius of the circle
color	Color of the circle

Here is the call graph for this function:

void setCursor	(	int16_t	x,
		int16_t	y
	)

Sets the cursor for a text message

Parameters

x	Axis on the horizontal scale
y	Axis on the vertical scale

void setTextColor	(	uint16_t	textColor,
		uint16_t	textBGColor
	)

Sets a text color for a message

Parameters

textColor	Font color
textBGColor	Background color

void setTextSize

(

uint8_t

size

)

Sets the size of the font

Parameters

size

Font size

void setTextWrap

(

uint8_t

wrap

)

Wraps a printed message

Parameters

wrap	True (0x1) or false (0x0)

Field Documentation

int m_height

Screen height

int m_width

Screen width

int m_textSize

Printed text size

int m_textColor

Printed text color

int m_textBGColor

Printed text background color

int m_cursorX

Cursor X coordinate

int m_cursorY

Cursor Y coordinate

int m_wrap

Wrapper flag (true or false)

uint8_t* m_map

Screens buffer

Inheritance diagram for GFX:

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/st7735/gfx.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/st7735/gfx.cxx
