GroveButton Class Reference

API for the Grove Button. More...

Detailed Description

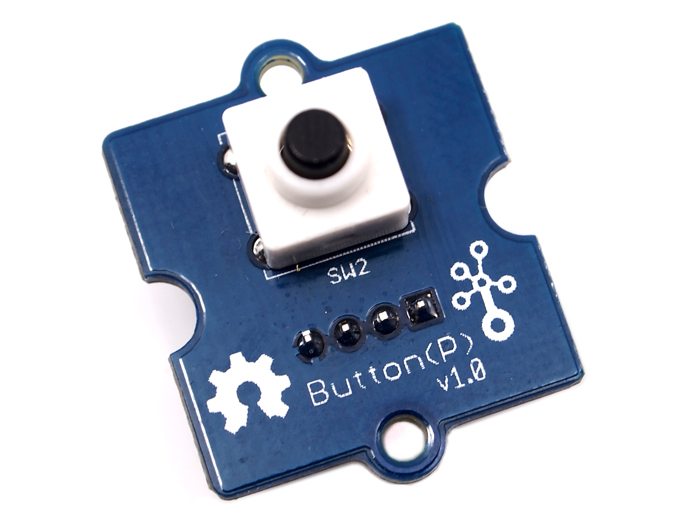

Basic UPM module for the Grove button

    // Create the button object using GPIO pin 0
    upm::GroveButton* button = new upm::GroveButton(0);

    // Read the input and print, waiting one second between readings
    while( 1 ) {
        std::cout << button->name() << " value is " << button->value() << std::endl;
        sleep(1);
    }

    // Delete the button object
    delete button;

Public Member Functions
	GroveButton (unsigned int pin)
	~GroveButton ()
std::string	name ()
int	value ()
Public Member Functions inherited from Grove
std::string	name ()

Additional Inherited Members
Protected Attributes inherited from Grove
std::string	m_name

Constructor & Destructor Documentation

GroveButton

(

unsigned int

pin

)

Grove button constructor

Parameters

gpio	Pin to use

~GroveButton

(

)

Grove button destructor

Member Function Documentation

std::string name

(

)

Gets the name of the sensor

Returns

Name of this sensor

int value

(

)

Gets the value from the GPIO pin

Returns

Value from the GPIO pin

Inheritance diagram for GroveButton:

Collaboration diagram for GroveButton:

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/grove/grove.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/grove/grove.cxx
