Lcm1602 Class Reference

API for the LCM1602 I2C controller for HD44780-based displays. More...

Detailed Description

• ID: lcm1602
• Name: LCM1602 Display
• Category: display
• Manufacturer: adafruit sparkfun
• Link: https://www.adafruit.com/datasheets/TC1602A-01T.pdf
• Connection: i2c

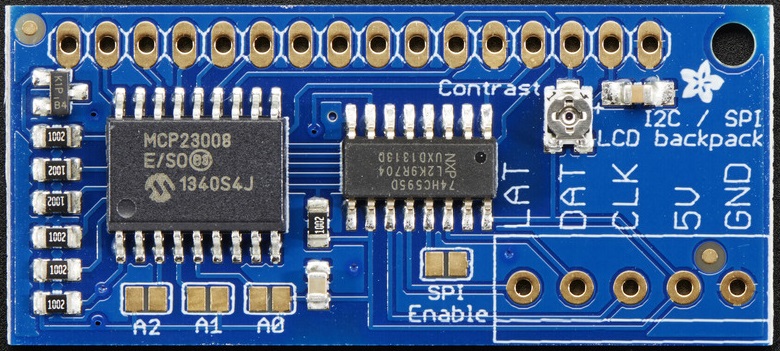

This supports all sizes of HD44780 displays, from 16x2 to 4x20. The controller has no idea of the actual display hardware, so it lets you write farther than you can see. These displays with such controllers are available from various manufacturers with different I2C addresses. Adafruit* TC1602A-01T seems to be a well-documented example.

    upm::Lcm1602* lcd = new upm::Lcm1602(0, 0x27);
    lcd->setCursor(0,0);
    lcd->write("Hello World");

Public Member Functions
	Lcm1602 (int bus, int address, bool isExpander=true)
	Lcm1602 (uint8_t rs, uint8_t enable, uint8_t d0, uint8_t d1, uint8_t d2, uint8_t d3)
	~Lcm1602 ()
mraa_result_t	write (std::string msg)
mraa_result_t	setCursor (int row, int column)
mraa_result_t	clear ()
mraa_result_t	home ()
mraa_result_t	createChar (uint8_t charSlot, uint8_t charData[])
mraa_result_t	displayOn ()
mraa_result_t	displayOff ()
mraa_result_t	cursorOn ()
mraa_result_t	cursorOff ()
mraa_result_t	cursorBlinkOn ()
mraa_result_t	cursorBlinkOff ()
mraa_result_t	scrollDisplayLeft ()
mraa_result_t	scrollDisplayRight ()
mraa_result_t	entryLeftToRight ()
mraa_result_t	entryRightToLeft ()
mraa_result_t	autoscrollOn ()
mraa_result_t	autoscrollOff ()
Public Member Functions inherited from LCD
mraa_result_t	write (int x, int y, std::string msg)
std::string	name ()

Protected Member Functions
mraa_result_t	send (uint8_t value, int mode)
mraa_result_t	write4bits (uint8_t value)
mraa_result_t	expandWrite (uint8_t value)
mraa_result_t	pulseEnable (uint8_t value)
virtual mraa_result_t	command (uint8_t cmd)
virtual mraa_result_t	data (uint8_t data)

Protected Attributes
uint8_t	m_displayControl
uint8_t	m_entryDisplayMode
int	m_lcd_control_address
mraa::I2c *	m_i2c_lcd_control
Protected Attributes inherited from LCD
std::string	m_name

Constructor & Destructor Documentation

Lcm1602	(	int	bus,
		int	address,
		bool	isExpander = true
	)

Lcm1602 constructor; calls libmraa initialisation functions

Parameters

bus	I2C bus to use
address	Slave address the LCD is registered on
isExpander	True if we are dealing with an I2C expander, false otherwise. Default is true.

Here is the call graph for this function:

Lcm1602	(	uint8_t	rs,
		uint8_t	enable,
		uint8_t	d0,
		uint8_t	d1,
		uint8_t	d2,
		uint8_t	d3
	)

Lcm1602 alternate constructor, used for GPIO based hd44780 controllers supporting RS, Enable, and 4 data pins in 4-bit mode.

Parameters

rs	Register select pin
enable	Enable pin
d0	Data 0 pin
d1	Data 1 pin
d2	Data 2 pin
d3	Data 3 pin

Here is the call graph for this function:

~Lcm1602

(

)

Lcm1602 destructor

Member Function Documentation

mraa_result_t write ( std::string  msg )

virtual

Writes a string to the LCD

Parameters

msg	std::string to write to the display; note: only ASCII characters are supported

Returns

Result of the operation

Implements LCD.

mraa_result_t setCursor ( int  row, int  column  )

virtual

Sets the cursor to specified coordinates

Parameters

row	Row to set the cursor to
column	Column to set the cursor to

Returns

Result of the operation

Implements LCD.

mraa_result_t clear ( )

virtual

Clears the display of all characters

Returns

Result of the operation

Implements LCD.

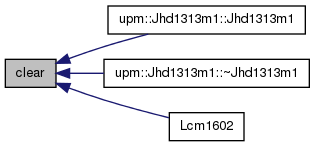

Here is the caller graph for this function:

mraa_result_t home ( )

virtual

Returns to the original coordinates (0,0)

Returns

Result of the operation

Implements LCD.

Here is the caller graph for this function:

mraa_result_t createChar	(	uint8_t	charSlot,
		uint8_t	charData[]
	)

Create a custom character

Parameters

charSlot	the character slot to write, only 8 are available
charData	The character data (8 bytes) making up the character

Returns

Result of operation

mraa_result_t displayOn

(

)

Turn the display on

Returns

Result of operation

Here is the caller graph for this function:

mraa_result_t displayOff

(

)

Turn the display off

Returns

Result of operation

mraa_result_t cursorOn

(

)

Turn the cursor on

Returns

Result of operation

mraa_result_t cursorOff

(

)

Turn the cursor off

Returns

Result of operation

mraa_result_t cursorBlinkOn

(

)

Turn cursor blink on

Returns

Result of operation

mraa_result_t cursorBlinkOff

(

)

Turn cursor blink off

Returns

Result of operation

mraa_result_t scrollDisplayLeft

(

)

Scroll the display left, without changing the character RAM

Returns

Result of operation

Here is the caller graph for this function:

mraa_result_t scrollDisplayRight

(

)

Scroll the display right, without changing the character RAM

Returns

Result of operation

Here is the caller graph for this function:

mraa_result_t entryLeftToRight

(

)

set the entry mode so that characters are added left to right

Returns

Result of operation

mraa_result_t entryRightToLeft

(

)

set the entry mode so that characters are added right to left

Returns

Result of operation

mraa_result_t autoscrollOn

(

)

Right justify text entered from the cursor

Returns

Result of operation

mraa_result_t autoscrollOff

(

)

Left justify text entered from the cursor

Returns

Result of operation

Inheritance diagram for Lcm1602:

Collaboration diagram for Lcm1602:

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/lcd/lcm1602.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/lcd/lcm1602.cxx
