MAX31855 Class Reference

API for the MAX31855 Thermocouple Amplifier. More...

Detailed Description

• ID: max31855
• Name: MAX31855 Thermocouple Amplifier
• Category: other
• Manufacturer: maxim adafruit
• Connection: spi

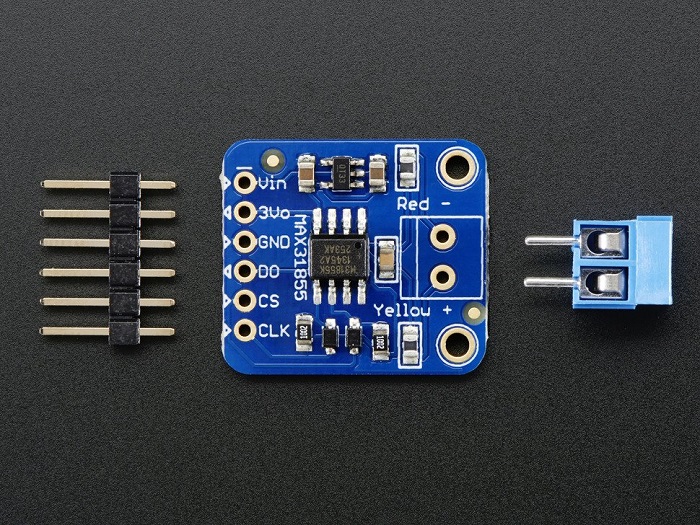

Maxim Integrated* MAX31855 is a cold-junction compensated thermocouple-to-digital converter. This module was tested on the Maxim Integrated MAX31855PMB1 PMOD module from the analog PMOD kit.

#include "max31855.h"

int
main(int argc, char **argv)
{
    upm::MAX31855 *temp = new upm::MAX31855(0, 8);

    std::cout << temp->getTemp() << std::endl;

    return 0;
}

Public Member Functions
	MAX31855 (int bus, int cs)
	[Constructor] More...
	~MAX31855 ()
	[Constructor] More...
double	getTemp ()
	[Interesting] More...

Constructor & Destructor Documentation

MAX31855	(	int	bus,
		int	cs
	)

Instantiates an MAX31855 object

Parameters

bus	SPI bus to use
cs	Chip select pin

~MAX31855

(

)

MAX31855 object destructor

[Destructor]

Member Function Documentation

double getTemp

(

)

[Destructor]

Gets the distance from the sensor

Returns

Value in Celsius

[spi]

[spi]

[conversion]

[conversion]

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/max31855/max31855.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/max31855/max31855.cxx
