MHZ16 Class Reference

API support for the Grove CO2 sensor. More...

Detailed Description

• ID: mhz16
• Name: Grove CO2 Sensor
• Other Names: MHZ16 Serial CO2 Sensor
• Category: gaseous
• Manufacturer: seeed
• Connection: uart

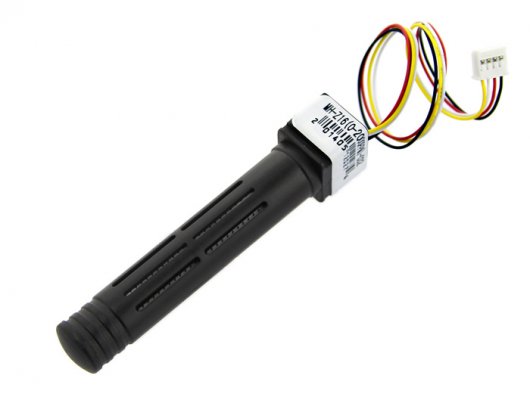

This class implements support for the Grove CO2 sensor.

Its CO2 detection range is 0-2,000 ppm. It requires a 2-3 minute warm-up time before reporting valid data.

  // Instantiate a MHZ16 serial CO2 sensor on uart 0.
  // This example was tested on the Grove CO2 sensor module.

  upm::MHZ16* co2 = new upm::MHZ16(0);

  // make sure port is initialized properly.  9600 baud is the default.
  if (!co2->setupTty(B9600))
    {
      cerr << "Failed to setup tty port parameters" << endl;
      return 1;
    }

  cout << "Make sure that the sensor has had at least 3 minutes to warm up"
       << endl;
  cout << "or you will not get valid results." << endl;
  cout << "The temperature reported is not the ambient temperature, " << endl;
  cout << "but rather the temperature of the sensor elements." << endl;

  sleep(1);

  int gas;
  int temp;

  while (shouldRun)
    {
      co2->getData(&gas, &temp);
      cout << "CO2 concentration: " << gas << " PPM, "
           << "Temperature (in C): " << temp <<endl;

      sleep(2);
    }

Public Member Functions
	MHZ16 (int uart)
	~MHZ16 ()
bool	dataAvailable (unsigned int millis)
int	readData (char *buffer, size_t len)
int	writeData (char *buffer, size_t len)
bool	setupTty (speed_t baud=B9600)
bool	verifyPacket (unsigned char *pkt)
bool	getData (int *gas, int *temp)
void	calibrateZeroPoint ()

Protected Member Functions
int	ttyFd ()
int	setTtyFd (int fd)

Constructor & Destructor Documentation

MHZ16

(

int

uart

)

MHZ16 constructor

Parameters

uart	Default UART to use (0 or 1)

~MHZ16

(

)

MHZ16 destructor

Member Function Documentation

bool dataAvailable

(

unsigned int

millis

)

Checks to see if there is data available for reading

Parameters

millis

Number of milliseconds to wait; 0 means no waiting.

Returns

True if there is data available for reading

int readData	(	char *	buffer,
		size_t	len
	)

Reads any available data in a user-supplied buffer. Note: the call blocks until data is available to be read. Use dataAvailable() to determine whether there is data available beforehand, to avoid blocking.

Parameters

buffer	Buffer to hold the data read
len	Length of the buffer

Returns

Number of bytes read

int writeData	(	char *	buffer,
		size_t	len
	)

Writes the data in the buffer to the device

Parameters

buffer	Buffer to hold the data read
len	Length of the buffer

Returns

Number of bytes written

bool setupTty

(

speed_t

baud = B9600

)

Sets up proper tty I/O modes and the baud rate. The default baud rate is 9,600 (B9600).

Parameters

baud	Desired baud rate.

Returns

True if successful

bool verifyPacket

(

unsigned char *

pkt

)

Verifies the packet header and indicates its validity

Parameters

pkt	Packet to check

Returns

True if the checksum is valid, false otherwise

bool getData	(	int *	gas,
		int *	temp
	)

Queries the sensor and returns gas (CO2) concentration and temperature data.

Parameters

gas	Returned gas concentration
temp	Returned temperature in Celsius

Returns

True if successful

void calibrateZeroPoint

(

)

Sets the zero point of the sensor

---
