API for the SM130 RFID Reader Module. More...

Detailed Description

This file defines the SM130 interface for the sm130 RFID library

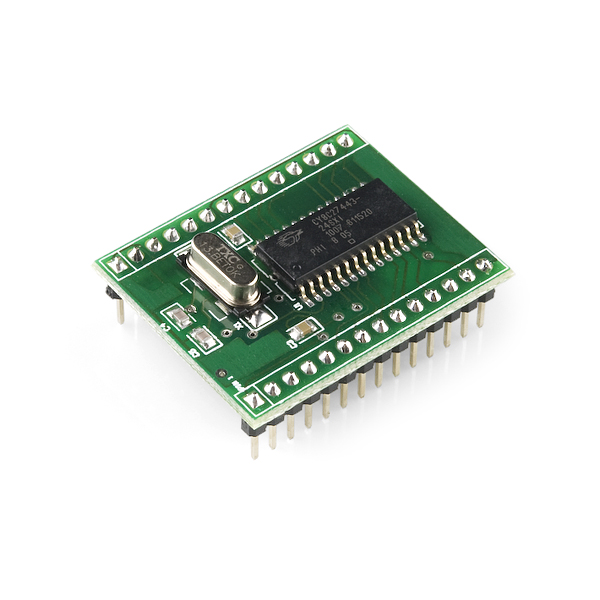

SM130 RFID Reader image provided by SparkFun* under CC BY-NC-SA-3.0.

Public Member Functions
	SM130 (int bus, int devAddr, int rst, int dready)

	~SM130 ()

const char *	getFirmwareVersion ()

uint8_t	available ()

uint8_t	getPacketLength ()

uint8_t	getCommand ()

std::string	name ()

Constructor & Destructor Documentation

Instantiates an SM130 object

Parameters

di	Data pin
dcki	Clock pin

~SM130 ( )

SM130 object destructor

const char * getFirmwareVersion ( )

Gets the firmware version string.

Here is the call graph for this function:

uint8_t available ( )

Checks for availability of a valid response packet.

This function should always be called and return true prior to using the results of a command.

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t getPacketLength ( )

inline

Returns the packet length, excluding the checksum

Here is the caller graph for this function:

uint8_t getCommand ( )

inline

Returns the last executed command

Here is the caller graph for this function:

std::string name ( )

inline

Returns the name of the component

The documentation for this class was generated from the following files:
