SSD1308 Class Reference

API for SSD1308 I2C-controlled OLED displays. More...

Detailed Description

• ID: ssd1308
• Name: SSD1308 OLED Display
• Other Names: Grove OLED Display 0.96"
• Category: display
• Manufacturer: seeed adafruit
• Link: http://garden.seeedstudio.com/images/4/46/SSD1308_1.0.pdf
• Link: http://www.seeedstudio.com/wiki/Grove_-_OLED_Display_0.96%22
• Connection: i2c

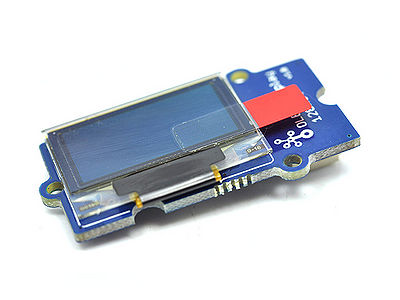

SSD1308 is a 128x64 dot-matrix OLED/PLED segment driver with a controller. This implementation was tested using the Grove LED 128×64 Display module, which is an OLED monochrome display.

    upm::SSD1308 *lcd = new upm::SSD1308(BUS_NUMBER, DEVICE_ADDRESS);

    lcd->clear();
    lcd->draw(intel_logo, 1024);

    delete lcd;

Public Member Functions
	SSD1308 (int bus, int address=0x3C)
	~SSD1308 ()
mraa_result_t	draw (uint8_t *data, int bytes)
mraa_result_t	write (std::string msg)
mraa_result_t	setCursor (int row, int column)
mraa_result_t	clear ()
mraa_result_t	home ()
Public Member Functions inherited from LCD
mraa_result_t	write (int x, int y, std::string msg)
std::string	name ()

Additional Inherited Members
Protected Attributes inherited from LCD
std::string	m_name

Constructor & Destructor Documentation

SSD1308	(	int	bus,
		int	address = 0x3C
	)

SSD1308 constructor; calls libmraa initialisation functions

Parameters

bus	I2C bus to use
address	Slave address the LCD is registered on

Here is the call graph for this function:

~SSD1308

(

)

SSD1308 destructor

Member Function Documentation

mraa_result_t draw	(	uint8_t *	data,
		int	bytes
	)

Draws an image; see examples/python/make_oled_pic.py for an explanation of how pixels are mapped to bytes

Parameters

data	Buffer to read
bytes	Number of bytes to read from the pointer

Returns

Result of the operation

mraa_result_t write ( std::string  msg )

virtual

Writes a string to the LCD

Parameters

msg	std::string to write to the display; note: only ASCII characters are supported

Returns

Result of the operation

Implements LCD.

mraa_result_t setCursor ( int  row, int  column  )

virtual

Sets the cursor to specified coordinates

Parameters

row	Row to set the cursor to
column	Column to set the cursor to

Returns

Result of the operation

Implements LCD.

Here is the caller graph for this function:

mraa_result_t clear ( )

virtual

Clears the display of all characters

Returns

Result of the operation

Implements LCD.

Here is the call graph for this function:

Here is the caller graph for this function:

mraa_result_t home ( )

virtual

Returns to the original coordinates (0,0)

Returns

Result of the operation

Implements LCD.

Here is the call graph for this function:

Here is the caller graph for this function:

Inheritance diagram for SSD1308:

Collaboration diagram for SSD1308:

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/lcd/ssd1308.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/lcd/ssd1308.cxx
