YG1006 Class Reference

API for the YG1006 Flame Sensor. More...

Detailed Description

• ID: yg1006

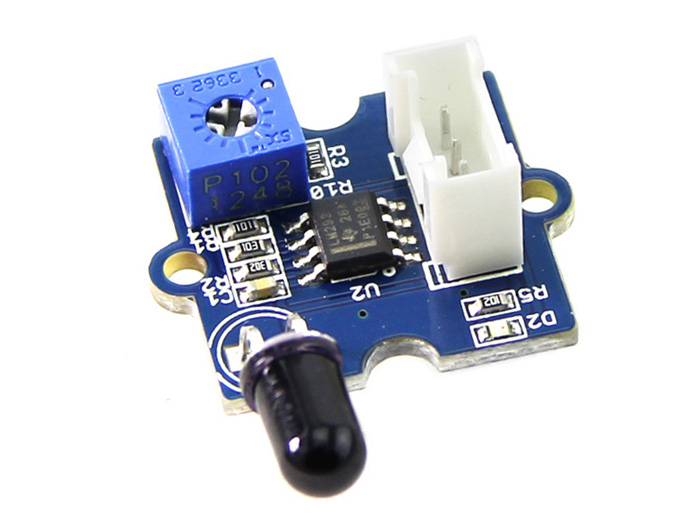

• Name: YG1006 Flame Sensor
• Other Names: Grove Flame Sensor
• Category: light
• Manufacturer: seeed
• Link: http://www.seeedstudio.com/wiki/Grove_-_Flame_Sensor
• Connection: gpio
• Kit: hak

UPM module for the YG1006 flame sensor. It detects a flame or any other light source in the 760-1,100 nm wavelength range.

  // Instantiate a yg1006 flame sensor on digital pin D2
  upm::YG1006* flame = new upm::YG1006(2);

  // check every second for the presence of a flame
  while (shouldRun)
    {
      bool val = flame->flameDetected();
      if (val)
        cout << "Flame detected." << endl;
      else
        cout << "No flame detected." << endl;

      sleep(1);
    }

Public Member Functions
	YG1006 (int pin)
	~YG1006 ()
bool	flameDetected ()

Constructor & Destructor Documentation

YG1006

(

int

pin

)

YG1006 constructor

Parameters

pin	Digital pin to use

~YG1006

(

)

YG1006 destructor

Member Function Documentation

bool flameDetected

(

)

Determines whether a flame has been detected

Returns

True if a flame or another comparable light source has been detected

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/yg1006/yg1006.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/yg1006/yg1006.cxx
