API for the Atmel AT42QT1070 QTouch Sensor. More...

Detailed Description

ID: at42qt1070
Name: AT42QT1070 QTouch Sensor
Other Names: Grove QTouch Sensor
Category: touch
Manufacturer: seeed
Connection: i2c

This class implements support for the Atmel AT42QT1070 QTouch sensor, which supports 7 capacitive buttons.

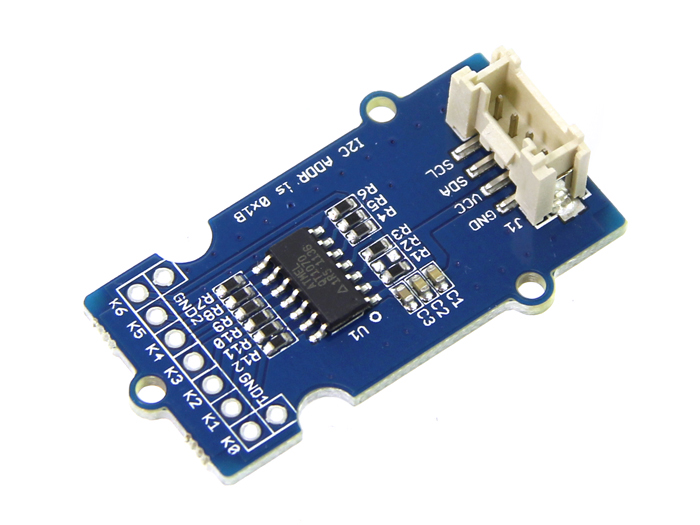

It was developed using a Grove-Q Touch Sensor board.

  // Instantiate an AT42QT1070 on I2C bus 0
  upm::AT42QT1070 *touch = new upm::AT42QT1070(AT42QT1070_I2C_BUS,
                                               AT42QT1070_DEFAULT_I2C_ADDR);
  while (shouldRun)
    {
      touch->updateState();
      printButtons(touch);
      usleep(100000);
    }

Public Types
enum	AT42QT1070_REG_T { REG_CHIPID = 0, REG_FWVERS = 1, REG_DETSTATUS = 2, REG_KEYSTATUS = 3, REG_KEYSIG0_H = 4, REG_KEYSIG0_L = 5, REG_KEYSIG1_H = 6, REG_KEYSIG1_L = 7, REG_KEYSIG2_H = 8, REG_KEYSIG2_L = 9, REG_KEYSIG3_H = 10, REG_KEYSIG3_L = 11, REG_KEYSIG4_H = 12, REG_KEYSIG4_L = 13, REG_KEYSIG5_H = 14, REG_KEYSIG5_L = 15, REG_KEYSIG6_H = 16, REG_KEYSIG6_L = 17, REG_REFDATA0_H = 18, REG_REFDATA0_L = 19, REG_REFDATA1_H = 20, REG_REFDATA1_L = 21, REG_REFDATA2_H = 22, REG_REFDATA2_L = 23, REG_REFDATA3_H = 24, REG_REFDATA3_L = 25, REG_REFDATA4_H = 26, REG_REFDATA4_L = 27, REG_REFDATA5_H = 28, REG_REFDATA5_L = 29, REG_REFDATA6_H = 30, REG_REFDATA6_L = 31, REG_NTHR0 = 32, REG_NTHR1 = 33, REG_NTHR2 = 34, REG_NTHR3 = 35, REG_NTHR4 = 36, REG_NTHR5 = 37, REG_NTHR6 = 38, REG_AVE0 = 39, REG_AVE1 = 40, REG_AVE2 = 41, REG_AVE3 = 42, REG_AVE4 = 43, REG_AVE5 = 44, REG_AVE6 = 45, REG_DI0 = 46, REG_DI1 = 47, REG_DI2 = 48, REG_DI3 = 49, REG_DI4 = 50, REG_DI5 = 51, REG_DI6 = 52, REG_GUARD = 53, REG_LP = 54, REG_MAXON = 55, REG_CALIBRATE = 56, REG_RESET = 57 }

enum	AT42QT1070_DET_T { DET_TOUCH = 0x01, DET_OVERFLOW = 0x40, DET_CALIBRATE = 0x80 }

Public Member Functions
	AT42QT1070 (int bus, uint8_t address=AT42QT1070_DEFAULT_I2C_ADDR)

	~AT42QT1070 ()

bool	writeByte (uint8_t reg, uint8_t byte)

bool	writeWord (uint8_t reg, uint16_t word)

uint8_t	readByte (uint8_t reg)

uint16_t	readWord (uint8_t reg)

uint8_t	readChipID (void)

void	updateState ()

uint8_t	getLPMode (void)

uint8_t	setLPMode (uint8_t mode)

uint8_t	getAVE (uint8_t key)

uint8_t	setAVE (uint8_t key, uint8_t ave)

uint8_t	getAKSGroup (uint8_t key)

uint8_t	setAKSGroup (uint8_t key, uint8_t group)

bool	isOverflowed ()

bool	isCalibrating ()

bool	reset ()

bool	calibrate ()

uint8_t	getButtons ()

Constructor & Destructor Documentation

AT42QT1070	(	int	bus,
		uint8_t	address = `AT42QT1070_DEFAULT_I2C_ADDR`
	)

AT42QT1070 constructor

Parameters

bus	I2C bus to use
address	Address for this sensor

~AT42QT1070 ( )

AT42QT1070 destructor

Member Function Documentation

bool writeByte	(	uint8_t	reg,
		uint8_t	byte
	)

Writes a byte value into the register

Parameters

reg	Register location to write into
byte	Byte to write

Returns: True if successful

bool writeWord	(	uint8_t	reg,
		uint16_t	word
	)

Writes a word value into the register. Note: the device must have the auto-increment bit set in the MODE1 register to work.

Parameters

reg	Register location to write into
word	Word to write

Returns: True if successful

uint8_t readByte ( uint8_t reg )

Read a byte value from the register

Parameters

reg	Register location to read from

Returns: Value in the specified register

uint16_t readWord ( uint8_t reg )

Read a word value from the register. Note: the device must have the auto-increment bit set in the MODE1 register to work.

Parameters

reg	Register location to read from

Returns: Value in the specified register

uint8_t readChipID ( void )

Reads the Chip ID register on the sensor

Returns: Value of the Chip ID register

void updateState ( )

Reads the current touch status and detection state

Returns: Key status bits for all keys (0-6)

uint8_t getLPMode ( void )

Reads the current low-power mode setting

Returns: Low-power mode setting from the sensor

uint8_t setLPMode ( uint8_t mode )

Changes the low-pomer mode setting on the sensor

Parameters

mode	dDsired new mode

Returns: New setting on the sensor

uint8_t getAVE ( uint8_t key )

Reads the current averaging factor setting for a key

Parameters

key	Key being read

Returns: Averaging factor

uint8_t setAVE	(	uint8_t	key,
		uint8_t	ave
	)

Changes the averaging factor setting for a key

Parameters

key	Key being changed
ave	New averaging factor

Returns: New averaging factor as read from the device

uint8_t getAKSGroup ( uint8_t key )

Reads the AKS group of which a key is part

Parameters

key	Key (0-6) being queried

Returns: AKS group of which the key is part

uint8_t setAKSGroup	(	uint8_t	key,
		uint8_t	group
	)

Changes the AKS group of which a key is part

Parameters

key	Key (0-6) being changed
group	New group for the key

Returns: New value on the sensor

bool isOverflowed ( )

inline

Returns the overflow indicator

Returns: True if overflow is indicated

bool isCalibrating ( )

inline

Returns the calibrating indicator

Returns: True if calibration is in progress

bool reset ( )

Issues a reset command

Returns: True if successful

bool calibrate ( )

Issues a calibrate command

Returns: True if successful

uint8_t getButtons ( )

inline

Gets the current button states

Returns: Button states

The documentation for this class was generated from the following files:

/var/lib/jenkins/workspace/upm-doc-stable/src/at42qt1070/at42qt1070.h
/var/lib/jenkins/workspace/upm-doc-stable/src/at42qt1070/at42qt1070.cxx
