BISS0001 Class Reference

API for the BISS0001 Motion Sensor. More...

Detailed Description

• ID: biss0001

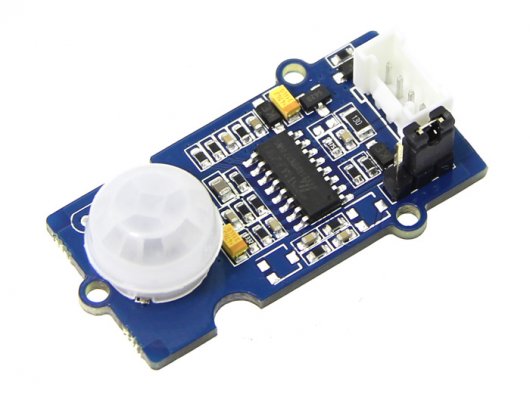

• Name: BISS0001 Motion Sensor
• Other Names: Grove PIR Motion Sensor
• Category: light
• Manufacturer: seeed
• Link: http://www.seeedstudio.com/depot/Grove-PIR-Motion-Sensor-p-802.html
• Connection: gpio
• Kit: tsk

UPM module for the BISS0001 Motion Sensor

  // Instantiate a Grove Motion sensor on GPIO pin D2
  upm::BISS0001* motion = new upm::BISS0001(2);

  while (shouldRun)
  {
      bool val = motion->value();

      if (val)
        cout << "Detecting moving object";
      else
        cout << "No moving objects detected";

      cout << endl;

      sleep(1);
  }

Public Member Functions
	BISS0001 (int pin)
	~BISS0001 ()
bool	value ()

Constructor & Destructor Documentation

BISS0001

(

int

pin

)

BISS0001 motion sensor constructor

Parameters

pin	Digital pin to use

~BISS0001

(

)

BISS0001 destructor

Member Function Documentation

bool value

(

)

Gets the motion value from the sensor

Returns

Motion reading

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/biss0001/biss0001.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/biss0001/biss0001.cxx
