GroveLineFinder Class Reference

API for the Grove Line Finder Sensor. More...

Detailed Description

• ID: grovelinefinder
• Name: Grove Line Finder
• Category: color
• Manufacturer: seeed
• Connection: gpio
• Kit: robok

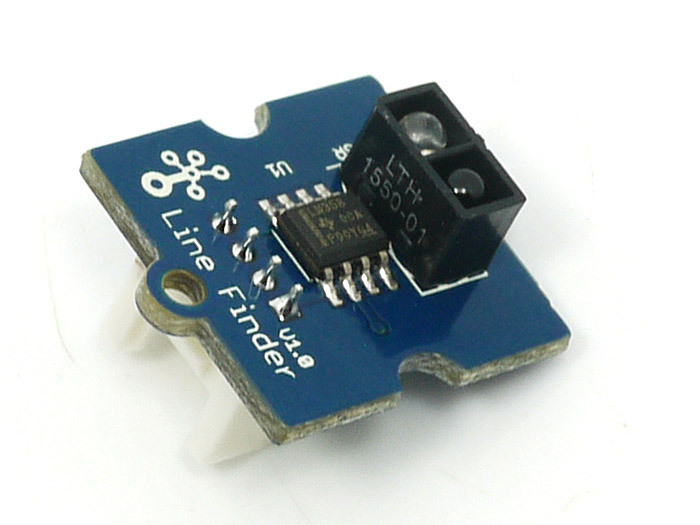

UPM module for the Grove Line Finder sensor. It outputs a digital signal indicating whether it is detecting black on a white background, or white on a black background.

  // Instantiate a Grove Line Finder sensor on digital pin D2
  upm::GroveLineFinder* finder = new upm::GroveLineFinder(2);

  // check every second for the presence of white detection
  while (shouldRun)
    {
      bool val = finder->whiteDetected();
      if (val)
        cout << "White detected." << endl;
      else
        cout << "Black detected." << endl;

      sleep(1);
    }

Public Member Functions
	GroveLineFinder (int pin)
	~GroveLineFinder ()
bool	whiteDetected ()
bool	blackDetected ()

Constructor & Destructor Documentation

GroveLineFinder

(

int

pin

)

Grove Line Finder digital sensor constructor

Parameters

pin	Digital pin to use

~GroveLineFinder

(

)

GroveLineFinder destructor

Member Function Documentation

bool whiteDetected

(

)

Determines whether white has been detected

Returns

True if white is detected

bool blackDetected

(

)

Determines whether black has been detected

Returns

True if black is detected

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/grovelinefinder/grovelinefinder.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/grovelinefinder/grovelinefinder.cxx
