API for the Grove Relay. More...

Detailed Description

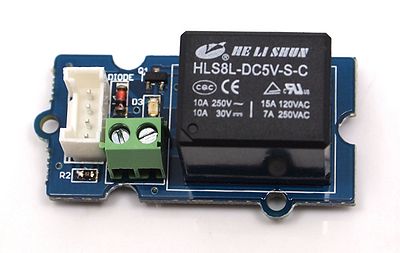

UPM module for the Grove relay switch. Grove relay is a digital normally-open switch that uses low voltage or current to control a higher voltage and/or higher current. When closed, the indicator LED lights up and current is allowed to flow.

    // Create the relay switch object using GPIO pin 0
    upm::GroveRelay* relay = new upm::GroveRelay(0);
    // Close and then open the relay switch 3 times,
    // waiting one second each time.  The LED on the relay switch
    // will light up when the switch is on (closed).
    // The switch will also make a noise between transitions.
    for ( int i = 0; i < 3; i++ ) {
        relay->on();
        if ( relay->isOn() )
            std::cout << relay->name() << " is on" << std::endl;
        sleep(1);
        relay->off();
        if ( relay->isOff() )
            std::cout << relay->name() << " is off" << std::endl;
        sleep(1);
    }
    // Delete the relay switch object
    delete relay;

Public Member Functions
	GroveRelay (unsigned int pin)

	~GroveRelay ()

mraa_result_t	on ()

mraa_result_t	off ()

bool	isOn ()

bool	isOff ()

Public Member Functions inherited from Grove
std::string	name ()
