API for the HP20X-based Grove Barometer (High-Accuracy) More...

Detailed Description

ID: hp20x
Name: Grove Barometer (High-Accuracy)
Other Names: HP20X Barometer (High-Accuracy)
Category: pressure
Manufacturer: seeed
Link: http://www.seeedstudio.com/depot/Grove-Barometer-HighAccuracy-p-1865.html
Connection: i2c

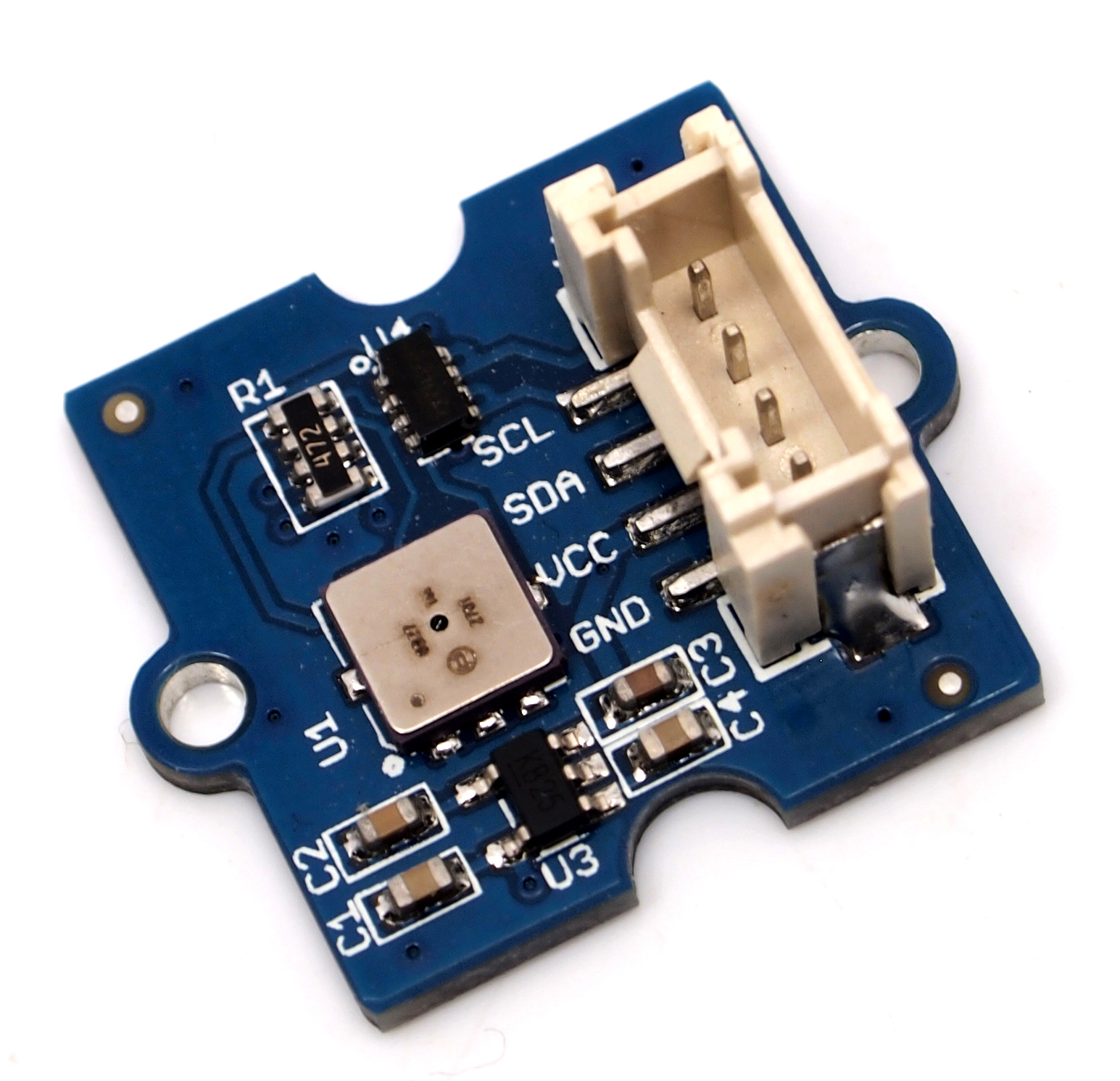

This is a high-accuracy barometer providing pressure, altitude, and temperature data. It can be calibrated for a given altitude offset, and a wide range of interrupt generating capabilities are supported. As usual, see the HP20X datasheet for more details.

This module was developed using a Grove Barometer (High-Accuracy) based on an HP206C chip.

  // Instantiate an HP20X on default I2C bus and address
  upm::HP20X *bar = new upm::HP20X();
  // Initialize the device with default values
  bar->init();
  // Output data every second until interrupted
  while (shouldRun)
    {
      printf("Temperature: %f Celcius\n", bar->getTemperature());
      printf("Pressure:    %f Millibars\n", bar->getPressure());
      printf("Altitude:    %f Meters\n", bar->getAltitude());
      printf("\n");
      sleep(1);
    }

Public Types
enum	HP20X_CMD_T { CMD_SOFT_RST = 0x06, CMD_ADC_CVT = 0x40, CMD_READ_PT = 0x10, CMD_READ_AT = 0x11, CMD_READ_P = 0x30, CMD_READ_A = 0x31, CMD_READ_T = 0x32, CMD_ANA_CAL = 0x28, CMD_READ_REG = 0x80, CMD_WRITE_REG = 0xc0 }

enum	CHNL_BITS_T { CHNL_PT = 0x00, CHNL_T = 0x02, CHNL_SHIFT = 0 }

enum	DSR_BITS_T { DSR_4096 = 0x00, DSR_2048 = 0x01, DSR_1024 = 0x02, DSR_512 = 0x03, DSR_256 = 0x04, DSR_128 = 0x05, DSR_SHIFT = 2 }

enum	HP20X_REG_T { REG_ALT_OFF_LSB = 0x00, REG_ALT_OFF_MSB = 0x01, REG_PA_H_TH_LSB = 0x02, REG_PA_H_TH_MSB = 0x03, REG_PA_M_TH_LSB = 0x04, REG_PA_M_TH_MSB = 0x05, REG_PA_L_TH_LSB = 0x06, REG_PA_L_TH_MSB = 0x07, REG_T_H_TH = 0x08, REG_T_M_TH = 0x09, REG_T_L_TH = 0x0a, REG_INT_EN = 0x0b, REG_INT_CFG = 0x0c, REG_INT_SRC = 0x0d, REG_PARA = 0x0e }

enum	INT_EN_BITS_T { INT_EN_T_WIN_EN = 0x01, INT_EN_PA_WIN_EN = 0x02, INT_EN_T_TRAV_EN = 0x04, INT_EN_PA_TRAV_EN = 0x08, INT_EN_T_RDY_EN = 0x10, INT_EN_PA_RDY_EN = 0x20 }

enum	INT_CFG_BITS_T { INT_CFG_T_WIN_CFG = 0x01, INT_CFG_PA_WIN_CFG = 0x02, INT_CFG_T_TRAV_CFG = 0x04, INT_CFG_PA_TRAV_CFG = 0x08, INT_CFG_T_RDY_CFG = 0x10, INT_CFG_PA_RDY_CFG = 0x20, INT_CFG_PA_MODE = 0x40 }

enum	INT_SRC_BITS_T { INT_SRC_T_WIN = 0x01, INT_SRC_PA_WIN = 0x02, INT_SRC_T_TRAV = 0x04, INT_SRC_PA_TRAV = 0x08, INT_SRC_T_RDY = 0x10, INT_SRC_PA_RDY = 0x20, INT_SRC_DEV_RDY = 0x40, INT_SRC_TH_ERR = 0x80 }

enum	PARA_BITS_T { PARA_CMPS_EN = 0x80 }

Public Member Functions
	HP20X (int bus=HP20X_I2C_BUS, uint8_t address=HP20X_DEFAULT_I2C_ADDR)

	~HP20X ()

bool	init (DSR_BITS_T dsr=DSR_4096)

bool	writeCmd (uint8_t cmd)

bool	writeReg (HP20X_REG_T reg, uint8_t data)

uint8_t	readReg (HP20X_REG_T reg)

int	readData ()

bool	isReady ()

bool	waitforDeviceReady ()

float	getTemperature ()

float	getPressure ()

float	getAltitude ()

void	compensationEnable (bool enable)

bool	setInterruptEnable (uint8_t bits)

bool	setInterruptConfig (uint8_t bits)

uint8_t	getInterruptSource ()

void	setDSR (DSR_BITS_T dsr)

void	recalibrateInternal ()

void	softReset ()

void	setAltitudeOffset (int16_t off)

void	setPAThreshholds (int16_t low, int16_t med, int16_t high)

void	setTemperatureThreshholds (int8_t low, int8_t med, int8_t high)

Protected Attributes
mraa::I2c	m_i2c

Constructor & Destructor Documentation

HP20X	(	int	bus = `HP20X_I2C_BUS`,
		uint8_t	address = `HP20X_DEFAULT_I2C_ADDR`
	)

HP20X constructor

Parameters

bus	I2C bus to use
address	Address for this device

~HP20X ( )

HP20X destructor

Member Function Documentation

bool init ( DSR_BITS_T dsr = DSR_4096 )

Sets up initial values and starts operation

Parameters

dsr	Data sampling rate; one of the DSR_BITS_T values

Returns: True if successful

Here is the call graph for this function:

bool writeCmd ( uint8_t cmd )

Sends a command to the device

Parameters

cmd	Command to send; usually, one of the HP20X_CMD_T values

Returns: True if successful

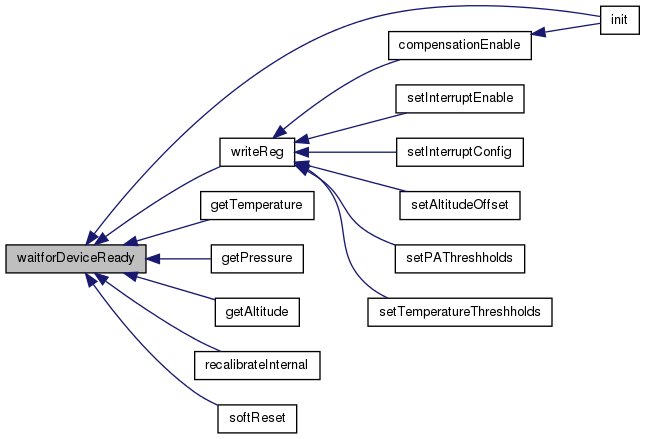

Here is the caller graph for this function:

bool writeReg	(	HP20X_REG_T	reg,
		uint8_t	data
	)

Writes a value to a register

Parameters

reg	Register to write to; one of the HP20X_REG_T values
data	Value to write

Returns: True if successful

Here is the call graph for this function:

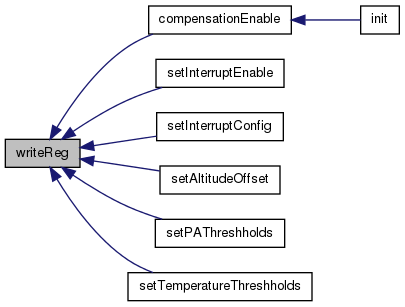

Here is the caller graph for this function:

uint8_t readReg ( HP20X_REG_T reg )

Reads a register and returns its value

Parameters

reg	Register to read; one of the HP20X_REG_T values

Returns: Value of a specified register

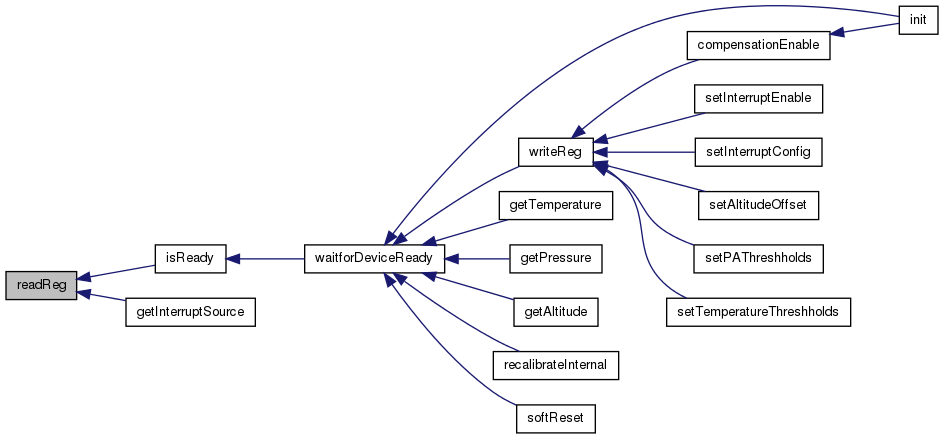

Here is the caller graph for this function:

int readData ( )

Reads 3 bytes of data in response to a conversion request, and converts it to an integer

Returns: Value read back (temperature, pressure, etc.)

Here is the caller graph for this function:

bool isReady ( )

Checks to see if the DR_RDY bit is set, indicating the device can accept commands

Returns: True if the device is ready, false otherwise

Here is the call graph for this function:

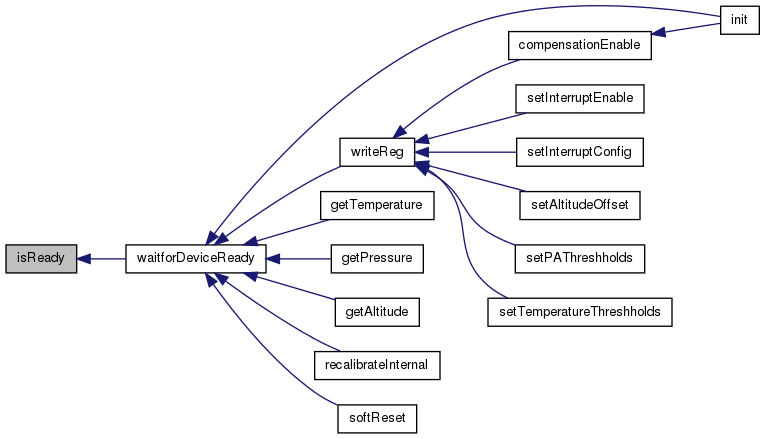

Here is the caller graph for this function:

bool waitforDeviceReady ( )

Checks to see if the device is ready, and sleeps/retries if not. Returns once the device indicates it's ready.

Returns: True if the device is ready; false if retries are exhausted

Here is the call graph for this function:

Here is the caller graph for this function:

float getTemperature ( void )

Returns the temperature in Celsius

Returns: Temperature

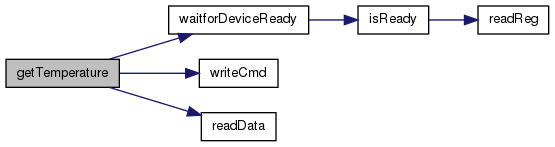

Here is the call graph for this function:

float getPressure ( )

Returns the pressure in millibars

Returns: Pressure

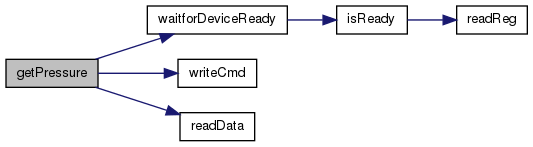

Here is the call graph for this function:

float getAltitude ( )

Returns the computed altitude in meters

Returns: Altitude

Here is the call graph for this function:

void compensationEnable ( bool enable )

Enables or disables the on-chip compensator. This allows the chip to filter and clean up the output data.

Parameters

enable True to enable, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setInterruptEnable ( uint8_t bits )

Sets up the interrupt enable register. This register defines which events can cause a hardware interrupt pin to be pulled high (active).

Parameters

bits	One or more of the INT_EN_BITS_T bits

Returns: True if successful, false otherwise

Here is the call graph for this function:

bool setInterruptConfig ( uint8_t bits )

Sets up the interrupt configuration register. This register defines which events can cause an interrupt to be indicated.

Parameters

bits	One or more of the INT_EN_BITS_T bits

Returns: True if successful, false otherwise

Here is the call graph for this function:

uint8_t getInterruptSource ( )

Gets the interrupt source register. This register indicates which interrupts have been triggered. In addition, it indicates when certain operations have been completed.

Returns: One of more of the INT_SRC_BITS_T values

Here is the call graph for this function:

void setDSR ( DSR_BITS_T dsr )

Sets the data sampling rate. Higher rates are more precise, but take more time per measurement.

Parameters

dsr	One of the DSR_BITS_T values

void recalibrateInternal ( )

Starts an internal recalibration of analog blocks. This is faster than a soft reset.

Here is the call graph for this function:

void softReset ( )

Executes a soft reset. All register values are reset to power-on defaults. This function returns when the reset is complete and the device reports it is ready.

Here is the call graph for this function:

void setAltitudeOffset ( int16_t off )

Sets the altitude offset for your region. See the datasheet for more details. Setting this correctly for your region is required for accurate altitude data.

Parameters

off Offset

Here is the call graph for this function:

void setPAThreshholds	(	int16_t	low,
		int16_t	med,
		int16_t	high
	)

Sets pressure/altitude thresholds for interrupt generation

Parameters

low	Low threshold to generate an interrupt
med	Medium threshold to generate an interrupt
high	High threshold to generate an interrupt

Here is the call graph for this function:

void setTemperatureThreshholds	(	int8_t	low,
		int8_t	med,
		int8_t	high
	)

Sets temperature thresholds for interrupt generation

Parameters

low	Low threshold to generate an interrupt
med	Medium threshold to generate an interrupt
high	High threshold to generate an interrupt

Here is the call graph for this function:

The documentation for this class was generated from the following files:
