LoL Class Reference

API for the Olimex LoL array. More...

Detailed Description

• ID: lol

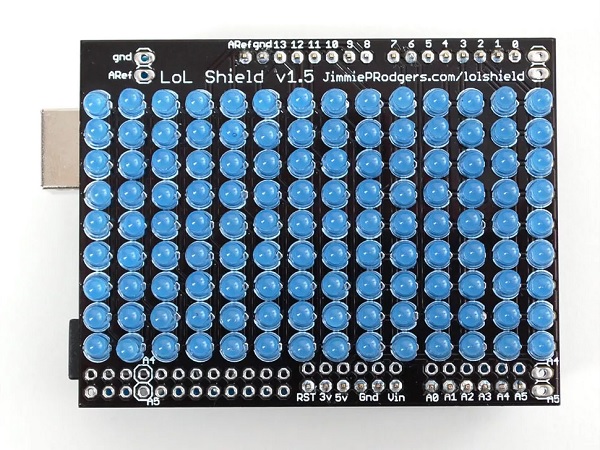

• Name: Olimex LoL Array
• Category: display
• Manufacturer: adafruit
• Connection: gpio

This module defines the LoL API and implementation for a simple framebuffer.

int
main(int argc, char **argv)
{
    sensor = new upm::LoL();
    signal(SIGINT, sig_handler);

    unsigned char *buffer;
    //buffer = sensor->getFramebuffer();
    int x = 0, y = 0;
    while (!is_running) {
        sensor->setPixel(x, y, !(sensor->getPixel(x, y)));
        if (++x == 13) { x = 0; y++; }
        if (y == 9) y = 0;
        usleep(10000);
    }

    std::cout << "exiting application" << std::endl;

    delete sensor;

    return 0;
}

Public Member Functions
	LoL ()
	~LoL ()
unsigned char *	getFramebuffer ()
unsigned char	getPixel (int x, int y)
unsigned char	setPixel (int x, int y, unsigned char pixel)

Constructor & Destructor Documentation

LoL

(

)

Instantiates an LoL object singleton

~LoL

(

)

LoL object destructor

Member Function Documentation

unsigned char * getFramebuffer

(

)

Gets a framebuffer pointer

Returns

0 if successful

unsigned char getPixel	(	int	x,
		int	y
	)

Gets a pixel at specified coordinates

Parameters

x	Coordinate x
y	Coordinate y

Returns

1 if the pixel is on, 0 if off, -1 on error

unsigned char setPixel	(	int	x,
		int	y,
		unsigned char	pixel
	)

Sets a pixel at specified coordinates

Parameters

x	Coordinate x
y	Coordinate y
pixel	0 is off, 1 is on

Returns

0 if successful, -1 on error

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/lol/lol.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/lol/lol.cxx
