TH02 Class Reference

API for the TH02 Temperature & Humidity Sensor. More...

Detailed Description

• ID: th02

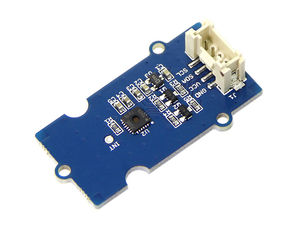

• Name: TH02 Temperature & Humidity Sensor
• Other Names: Grove Temperature & Humidity Sensor (High-Accuracy & Mini)
• Category: temp
• Manufacturer: seeed
• Link: http://www.seeedstudio.com/wiki/Grove_-_Tempture%26Humidity_Sensor_(High-Accuracy_%26Mini)_v1.0
• Connection: i2c

This module defines the TH02 interface for libth02

Note: For use on Intel(R) Edison with an Arduino* breakout board, Intel Edison must be set to 3 V rather than 5 V.

    float temperature = 0.0;
    float humidity = 0.0;
    sensor = new upm::TH02 ();

    while (!doWork) {
        temperature = sensor->getTemperature ();
        humidity = sensor->getHumidity ();
        std::cout << "Temperature = " << temperature << ", Humidity = " << humidity << std::endl;
        usleep (500000);
    }

Public Member Functions
	TH02 (int bus=0, uint8_t addr=TH02_ADDR)
	~TH02 ()
float	getTemperature ()
float	getHumidity ()
bool	getStatus ()
std::string	name ()

Constructor & Destructor Documentation

TH02	(	int	bus = 0,
		uint8_t	addr = TH02_ADDR
	)

Instantiates a TH02 object

~TH02

(

)

TH02 object destructor; basically, it closes the I2C connection.

Member Function Documentation

float getTemperature

(

void

)

Gets the temperature value from the sensor.

Here is the call graph for this function:

float getHumidity

(

void

)

Gets the humidity value from the sensor.

Here is the call graph for this function:

bool getStatus

(

)

Gets the sensor status.

Here is the caller graph for this function:

std::string name ( )

inline

Returns the name of the component

---

The documentation for this class was generated from the following files:

• /var/lib/jenkins/workspace/upm-doc-stable/src/th02/th02.h
• /var/lib/jenkins/workspace/upm-doc-stable/src/th02/th02.cxx
