TSL2561 Class Reference

API for the TSL2561 Digital Light Sensor. More...

Detailed Description

• ID: tsl2561

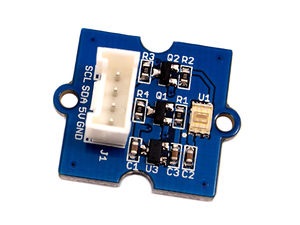

• Name: TSL2561 Light Sensor
• Other Names: Grove Digital Light Sensor
• Category: light
• Manufacturer: seeed
• Link: http://www.seeedstudio.com/wiki/Grove_-_Digital_Light_Sensor
• Connection: i2c
• Kit: eak

TSL2560 and TSL2561 are light-to-digital converters that transform light intensity to a digital signal output capable of a direct I2C (TSL2561) interface

    if (argc < 2) {
        printf("Provide loop count \n");
    } else {
        loopCount = atoi(argv[1]);
    }
    sensor = new upm::TSL2561();

    for(int i=0; i< loopCount; i++){
        fprintf(stdout, "Lux = %d\n", sensor->getLux());
    }

Public Member Functions
	TSL2561 (int bus=0, uint8_t devAddr=TSL2561_Address, uint8_t gain=GAIN_0X, uint8_t integrationTime=INTEGRATION_TIME1_101MS)
	~TSL2561 ()
int	getLux ()

Constructor & Destructor Documentation

TSL2561	(	int	bus = 0,
		uint8_t	devAddr = TSL2561_Address,
		uint8_t	gain = GAIN_0X,
		uint8_t	integrationTime = INTEGRATION_TIME1_101MS
	)

Instantiates a TSL2561 object

Parameters

bus	Number of the used bus
devAddr	Address of the used I2C device
gain	Correct gain to use
integration	Time to use

~TSL2561

(

)

GY65 object destructor; powers down TSL2561 and closes the I2C connection.

Member Function Documentation

int getLux

(

)

Gets the calculated lux reading from TSL2561

Returns

Calculated lux value from the sensor

---
