libupm-sx1276

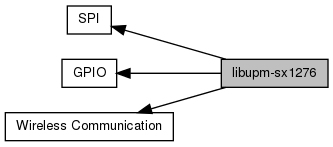

Connection Type » SPIConnection Type » | GPIOSensor Categories » | Wireless Communication

SX1276 LoRa/FSK modem. More...

Data Structures

class  SX1276
 API for the SX1276 LoRa/FSK modem. More...


Enumerations

enum  RADIO_MODEM_T { MODEM_LORA = 0, MODEM_FSK }

enum  RADIO_EVENT_T { REVENT_DONE = 0, REVENT_EXEC, REVENT_ERROR, REVENT_TIMEOUT }

enum  SX1276_REGS_T {
  COM_RegFifo = 0x00, COM_RegOpMode = 0x01, FSK_RegBitrateMsb = 0x02, LOR_Reserved02 = 0x02,
  FSK_RegBitrateLsb = 0x03, LOR_Reserved03 = 0x03, FSK_RegFdevMsb = 0x04, LOR_Reserved04 = 0x04,
  FSK_RegFdevLsb = 0x05, LOR_Reserved05 = 0x05, COM_RegFrfMsb = 0x06, COM_RegFrfMid = 0x07,
  COM_RegFrfLsb = 0x08, COM_RegPaConfig = 0x09, COM_RegPaRamp = 0x0a, COM_RegOcp = 0x0b,
  COM_RegLna = 0x0c, FSK_RegRxConfig = 0x0d, LOR_RegFifoAddrPtr = 0x0d, FSK_RegRssiConfg = 0x0e,
  LOR_RegFifoTxBaseAddr = 0x0e, FSK_RegRssiCollision = 0x0f, LOR_RegFifoRxBaseAddr = 0x0f, FSK_RegRssiThresh = 0x10,
  LOR_RegFifoRxCurrentAddr = 0x10, FSK_RegRssiValue = 0x11, LOR_RegIrqFlagsMask = 0x11, FSK_RegRxBw = 0x12,
  LOR_RegIrqFlags = 0x12, FSK_RegAfcBw = 0x13, LOR_RegRxNbBytes = 0x13, FSK_RegOokPeak = 0x14,
  LOR_RegRxHeaderCntValueMsb = 0x14, FSK_RegOokFix = 0x15, LOR_RegRxHeaderCntValueLsb = 0x15, FSK_RegOokAvg = 0x16,
  LOR_RegRxPacketCntValueMsb = 0x16, FSK_Reserved17 = 0x17, LOR_RegRxPacketCntValueLsb = 0x17, FSK_Reserved18 = 0x18,
  LOR_RegModemStat = 0x18, FSK_Reserved19 = 0x19, LOR_RegPktSnrValue = 0x19, FSK_RegAfcFei = 0x1a,
  LOR_RegPktRssiValue = 0x1a, FSK_RegAfcMsb = 0x1b, LOR_RegRssiValue = 0x1b, FSK_RegAfcLsb = 0x1c,
  LOR_RegHopChannel = 0x1c, FSK_RegFeiMsb = 0x1d, LOR_RegModemConfig1 = 0x1d, FSK_RegFeiLsb = 0x1e,
  LOR_RegModemConfig2 = 0x1e, FSK_RegPreambleDetect = 0x1f, LOR_RegSymbTimeoutLsb = 0x1f, FSK_RegRxTimeout1 = 0x20,
  LOR_RegPreambleMsb = 0x20, FSK_RegRxTimeout2 = 0x21, LOR_RegPreambleLsb = 0x21, FSK_RegRxTimeout3 = 0x22,
  LOR_RegPayloadLength = 0x22, FSK_RegRxDelay = 0x23, LOR_RegMaxPayloadLength = 0x23, FSK_RegOsc = 0x24,
  LOR_RegHopPeriod = 0x24, FSK_RegPreambleMsb = 0x25, LOR_RegFifoRxByteAddr = 0x25, FSK_RegPreambleLsb = 0x26,
  LOR_RegModemConfig3 = 0x26, FSK_RegSyncConfig = 0x27, LOR_Reserved27 = 0x27, FSK_RegSyncValue1 = 0x28,
  LOR_RegFeiMsb = 0x28, FSK_RegSyncValue2 = 0x29, LOR_RegFeiMid = 0x29, FSK_RegSyncValue3 = 0x2a,
  LOR_RegFeiLsb = 0x2a, FSK_RegSyncValue4 = 0x2b, LOR_Reserved2b = 0x2b, FSK_RegSyncValue5 = 0x2c,
  LOR_RegRssiWideband = 0x2c, FSK_RegSyncValue6 = 0x2d, LOR_Reserved2d = 0x2d, FSK_RegSyncValue7 = 0x2e,
  LOR_Reserved2e = 0x2e, FSK_RegSyncValue8 = 0x2f, LOR_Reserved2f = 0x2f, FSK_RegPacketConfig1 = 0x30,
  LOR_Reserved30 = 0x30, FSK_RegPacketConfig2 = 0x31, LOR_RegDetectOptimize = 0x31, FSK_RegPayloadLength = 0x32,
  LOR_Reserved32 = 0x32, FSK_RegNodeAddr = 0x33, LOR_RegInvertIQ = 0x33, FSK_RegBroadcastAddr = 0x34,
  LOR_Reserved34 = 0x34, FSK_RegFifoThresh = 0x35, LOR_Reserved35 = 0x35, FSK_RegSeqConfig1 = 0x36,
  LOR_Reserved36 = 0x36, FSK_RegSeqConfig2 = 0x37, LOR_RegDetectionThreshold = 0x37, FSK_RegTimerResol = 0x38,
  LOR_Reserved38 = 0x38, FSK_RegTimer1Coeff = 0x39, LOR_RegSyncWord = 0x39, FSK_RegTimer2Coeff = 0x3a,
  LOR_Reserved3a = 0x3a, FSK_RegImageCal = 0x3b, LOR_Reserved3b = 0x3b, LOR_RegInvertIQ2 = 0x3b,
  FSK_RegTemp = 0x3c, LOR_Reserved3c = 0x3c, FSK_RegLowBat = 0x3d, LOR_Reserved3d = 0x3d,
  FSK_RegIrqFlags1 = 0x3e, LOR_Reserved3e = 0x3e, FSK_RegIrqFlags2 = 0x3f, LOR_Reserved3f = 0x3f,
  COM_RegDioMapping1 = 0x40, COM_RegDioMapping2 = 0x41, COM_RegVersion = 0x42, FSK_Reserved44 = 0x44,
  LOR_RegPllHop = 0x44, COM_RegTcxo = 0x4b, COM_RegPaDac = 0x4d, COM_RegFormerTemp = 0x5b,
  FSK_RegBitRateFrac = 0x5d, LOR_Reserved5d = 0x5d, COM_RegAgcRef = 0x61, COM_RegAgcThresh1 = 0x62,
  COM_RegAgcThresh2 = 0x63, COM_RegAgcThresh3 = 0x64, COM_RegPll = 0x70
}

enum  OPMODE_BITS_T {
  OPMODE_Mode0 = 0x01, OPMODE_Mode1 = 0x02, OPMODE_Mode2 = 0x04, _OPMODE_Mode_MASK = 7,
  _OPMODE_Mode_SHIFT = 0, OPMODE_LowFrequencyModeOn = 0x08, OPMODE_FSK_ModulationType0 = 0x20, OPMODE_FSK_ModulationType1 = 0x40,
  _OPMODE_FSK_ModulationType_MASK = 3, _OPMODE_FSK_ModulationType_SHIFT = 5, OPMODE_LOR_Reserved0x20 = 0x20, OPMODE_LOR_AccessSharedReg = 0x40,
  OPMODE_LongRangeMode = 0x80
}

enum  MODE_T {
  MODE_Sleep = 0, MODE_Standby = 1, MODE_FSTX = 2, MODE_TxMode = 3,
  MODE_FSRX = 4, MODE_FSK_RxMode = 5, MODE_LOR_RxContinuous = 5, MODE_FSK_Reserved6 = 6,
  MODE_LOR_RxSingle = 6, MODE_FSK_Reserved7 = 7, MODE_LOR_CAD = 7
}

enum  FSK_MODULATION_TYPE_T { MODULATION_FSK = 0, MODULATION_OOK = 1 }

enum  PACONFIG_BITS_T {
  PACONFIG_OutputPower0 = 0x01, PACONFIG_OutputPower1 = 0x02, PACONFIG_OutputPower2 = 0x04, PACONFIG_OutputPower3 = 0x08,
  _PACONFIG_OutputPower_MASK = 15, _PACONFIG_OutputPower_SHIFT = 0, PACONFIG_MaxPower0 = 0x10, PACONFIG_MaxPower1 = 0x20,
  PACONFIG_MaxPower2 = 0x40, _PACONFIG_MaxPower_MASK = 7, _PACONFIG_MaxPower_SHIFT = 4, PACONFIG_PaSelect = 0x80
}

enum  PARAMP_BITS_T {
  PARAMP_PaRamp0 = 0x01, PARAMP_PaRamp1 = 0x02, PARAMP_PaRamp2 = 0x04, PARAMP_PaRamp3 = 0x08,
  _PARAMP_PaRamp_MASK = 15, _PARAMP_PaRamp_SHIFT = 0, PARAMP_FSK_ModulationShaping0 = 0x20, PARAMP_FSK_ModulationShaping1 = 0x40,
  _PARAMP_FSK_ModulationShaping_MASK = 3, _PARAMP_FSK_ModulationShaping_SHIFT = 5
}

enum  PARAMP_T {
  PARAMP_3_4MS = 0, PARAMP_2MS = 1, PARAMP_1MS = 2, PARAMP_500US = 3,
  PARAMP_250US = 4, PARAMP_125US = 5, PARAMP_100US = 6, PARAMP_62US = 7,
  PARAMP_50US = 8, PARAMP_40US = 9, PARAMP_31US = 10, PARAMP_25US = 11,
  PARAMP_20US = 12, PARAMP_15US = 13, PARAMP_12US = 14, PARAMP_10US = 15
}

enum  MODSHAPING_T {
  MODSHAPING_NOSHAPING = 0, MODSHAPING_FSK_GaussianFilterBT1 = 1, MODSHAPING_FSK_GaussianFilterBT05 = 2, MODSHAPING_FSK_GaussianFilterBT03 = 3,
  MODSHAPING_OOK_FCutoffBitRate = 1, MODSHAPING_OOK_FCutoffBitRate2 = 2
}

enum  OCP_BITS_T {
  OCP_OcpTrim0 = 0x01, OCP_OcpTrim1 = 0x02, OCP_OcpTrim2 = 0x04, OCP_OcpTrim3 = 0x08,
  _OCP_OcpTrim_MASK = 15, _OCP_OcpTrim_SHIFT = 0, OCP_OcpOn = 0x10
}

enum  LNA_BITS_T {
  LNA_LnaBoostHf0 = 0x01, LNA_LnaBoostHf1 = 0x02, _LNA_LnaBoostHf_MASK = 3, _LNA_LnaBoostHf_SHIFT = 0,
  LNA_LnaBoostLf0 = 0x08, LNA_LnaBoostLf1 = 0x10, _LNA_LnaBoostLf_MASK = 3, _LNA_LnaBoostLf_SHIFT = 3,
  LNA_LnaGain0 = 0x20, LNA_LnaGain1 = 0x40, LNA_LnaGain2 = 0x80, _LNA_LnaGain_MASK = 7,
  _LNA_LnaGain_SHIFT = 5
}

enum  LNABOOSTHF_T { LNABOOSTHF_Default = 0, LNABOOSTHF_BoostOn = 3 }

enum  LNABOOSTLF_T { LNABOOSTLF_Default = 0 }

enum  LNAGAIN_T {
  LNAGAIN_G1 = 1, LNAGAIN_G2 = 2, LNAGAIN_G3 = 3, LNAGAIN_G4 = 4,
  LNAGAIN_G5 = 5, LNAGAIN_G6 = 6
}

enum  RXCONFIG_BITS_T {
  RXCONFIG_RxTrigger0 = 0x01, RXCONFIG_RxTrigger1 = 0x02, RXCONFIG_RxTrigger2 = 0x04, _RXCONFIG_RxTrigger_MASK = 7,
  _RXCONFIG_RxTrigger_SHIFT = 0, RXCONFIG_AgcAutoOn = 0x08, RXCONFIG_AfcAutoOn = 0x10, RXCONFIG_RestartRxWithPllLock = 0x20,
  RXCONFIG_RestartRxWithoutPllLock = 0x40, RXCONFIG_RestartRxOnCollision = 0x80
}

enum  RSSICONFIG_BITS_T {
  RSSICONFIG_RssiSmoothing0 = 0x01, RSSICONFIG_RssiSmoothing1 = 0x02, RSSICONFIG_RssiSmoothing2 = 0x04, _RSSICONFIG_RssiSmoothing_MASK = 7,
  _RSSICONFIG_RssiSmoothing_SHIFT = 0, RSSICONFIG_RssiOffset0 = 0x08, RSSICONFIG_RssiOffset1 = 0x10, RSSICONFIG_RssiOffset2 = 0x20,
  RSSICONFIG_RssiOffset3 = 0x40, RSSICONFIG_RssiOffset4 = 0x80, _RSSICONFIG_RssiOffset_MASK = 31, _RSSICONFIG_RssiOffset_SHIFT = 3
}

enum  RSSISMOOTHING_T {
  RSSISMOOTHING_2 = 0, RSSISMOOTHING_4 = 1, RSSISMOOTHING_8 = 2, RSSISMOOTHING_16 = 3,
  RSSISMOOTHING_32 = 4, RSSISMOOTHING_64 = 5, RSSISMOOTHING_128 = 6, RSSISMOOTHING_256 = 7
}

enum  LOR_IRQFLAG_BITS_T {
  LOR_IRQFLAG_CadDetected = 0x01, LOR_IRQFLAG_FhssChangeChannel = 0x02, LOR_IRQFLAG_CadDone = 0x04, LOR_IRQFLAG_TxDone = 0x08,
  LOR_IRQFLAG_ValidHeader = 0x10, LOR_IRQFLAG_PayloadCrcError = 0x20, LOR_IRQFLAG_RxDone = 0x40, LOR_IRQFLAG_RxTimeout = 0x80
}

enum  RXBW_BITS_T {
  RXBW_RxBwExp0 = 0x01, RXBW_RxBwExp1 = 0x02, RXBW_RxBwExp2 = 0x04, _RXBW_RxBwExp_MASK = 7,
  _RXBW_RxBwExp_SHIFT = 0, RXBW_RxBwMant0 = 0x08, RXBW_RxBwMant1 = 0x10, _RXBW_RxBwMant_MASK = 3,
  _RXBW_RxBwMant_SHIFT = 3
}

enum  RXBWMANT_T { RXBWMANT_0 = 0, RXBWMANT_1 = 1, RXBWMANT_2 = 2 }

enum  RXBWEXP_T {
  RXBWEXP_1 = 1, RXBWEXP_2 = 2, RXBWEXP_3 = 3, RXBWEXP_4 = 4,
  RXBWEXP_5 = 5, RXBWEXP_6 = 6, RXBWEXP_7 = 7
}

enum  OOKPEAK_BITS_T {
  OOKPEAK_OokPeakThreshStep0 = 0x01, OOKPEAK_OokPeakThreshStep1 = 0x02, OOKPEAK_OokPeakThreshStep2 = 0x04, _OOKPEAK_OokPeakThreshStep_MASK = 7,
  _OOKPEAK_OokPeakThreshStep_SHIFT = 0, OOKPEAK_OokThreshType0 = 0x08, OOKPEAK_OokThreshType1 = 0x10, _OOKPEAK_OokThreshType_MASK = 3,
  _OOKPEAK_OokThreshType_SHIFT = 3, OOKPEAK_BitSyncOn = 0x20
}

enum  OOKPEAKTHRESHSTEP_T {
  OOKPEAKTHRESHSTEP_05dB = 0, OOKPEAKTHRESHSTEP_1dB = 1, OOKPEAKTHRESHSTEP_15dB = 2, OOKPEAKTHRESHSTEP_2dB = 3,
  OOKPEAKTHRESHSTEP_3dB = 4, OOKPEAKTHRESHSTEP_4dB = 5, OOKPEAKTHRESHSTEP_5dB = 6, OOKPEAKTHRESHSTEP_6dB = 7
}

enum  OOKTHRESHTYPE_T { OOKTHRESHTYPE_FIXED = 0, OOKTHRESHTYPE_PEAK = 1, OOKTHRESHTYPE_AVERAGE = 2 }

enum  OOKAVG_BITS_T {
  OOKAVG_OokAvgThreshFilt0 = 0x01, OOKAVG_OokAvgThreshFilt1 = 0x02, _OOKAVG_OokAvgThreshFilt_MASK = 3, _OOKAVG_OokAvgThreshFilt_SHIFT = 0,
  OOKAVG_OokAvgOffset0 = 0x04, OOKAVG_OokAvgOffset1 = 0x08, _OOKAVG_OokAvgOffset_MASK = 3, _OOKAVG_OokAvgOffset_SHIFT = 2,
  OOKAVG_OokPeakThreshDec0 = 0x20, OOKAVG_OokPeakThreshDec1 = 0x40, OOKAVG_OokPeakThreshDec2 = 0x80, _OOKAVG_OokPeakThreshDec_MASK = 7,
  _OOKAVG_OokPeakThreshDec_SHIFT = 5
}

enum  OOKAVGTHRESHFILT_T { OOKAVGTHRESHFILT_32 = 0, OOKAVGTHRESHFILT_8 = 1, OOKAVGTHRESHFILT_4 = 2, OOKAVGTHRESHFILT_2 = 3 }

enum  OOKAVGOFFSET_T { OOKAVGOFFSET_0 = 0, OOKAVGOFFSET_2 = 1, OOKAVGOFFSET_4 = 2, OOKAVGOFFSET_6 = 3 }

enum  OOKPEAKTHRESHDEC_T {
  OOKPEAKTHRESHDEC_1_1 = 0, OOKPEAKTHRESHDEC_1_2 = 1, OOKPEAKTHRESHDEC_1_4 = 2, OOKPEAKTHRESHDEC_1_8 = 3,
  OOKPEAKTHRESHDEC_2_1 = 4, OOKPEAKTHRESHDEC_4_1 = 5, OOKPEAKTHRESHDEC_8_1 = 6, OOKPEAKTHRESHDEC_16_1 = 7
}

enum  MODEMSTAT_BITS_T {
  MODEMSTAT_SignalDetected = 0x01, MODEMSTAT_SignalSynchronized = 0x02, MODEMSTAT_RxOngoing = 0x04, MODEMSTAT_HeaderInfoValid = 0x08,
  MODEMSTAT_ModemClear = 0x10, MODEMSTAT_RxCodingRate0 = 0x20, MODEMSTAT_RxCodingRate1 = 0x40, MODEMSTAT_RxCodingRate2 = 0x80,
  _MODEMSTAT_RxCodingRate_MASK = 7, _MODEMSTAT_RxCodingRate_SHIFT = 5
}

enum  AFCFEI_BITS_T { AFCFEI_AfcAutoClearOn = 0x01, AFCFEI_AfcClear = 0x02, AFCFEI_AgcStart = 0x10 }

enum  HOPCHANNEL_BITS_T {
  HOPCHANNEL_FhssPresentChannel0 = 0x01, HOPCHANNEL_FhssPresentChannel1 = 0x02, HOPCHANNEL_FhssPresentChannel2 = 0x04, HOPCHANNEL_FhssPresentChannel3 = 0x08,
  HOPCHANNEL_FhssPresentChannel4 = 0x10, HOPCHANNEL_FhssPresentChannel5 = 0x20, _HOPCHANNEL_FhssPresentChannel_MASK = 63, _HOPCHANNEL_FhssPresentChannel_SHIFT = 0,
  HOPCHANNEL_CrcOnPayload = 0x40, HOPCHANNEL_PllTimeout = 0x80
}

enum  MODEMCONFIG1_BITS_T {
  MODEMCONFIG1_ImplicitHeaderModeOn = 0x01, MODEMCONFIG1_CodingRate0 = 0x02, MODEMCONFIG1_CodingRate1 = 0x04, MODEMCONFIG1_CodingRate2 = 0x08,
  _MODEMCONFIG1_CodingRate_MASK = 7, _MODEMCONFIG1_CodingRate_SHIFT = 0, MODEMCONFIG1_Bw0 = 0x10, MODEMCONFIG1_Bw1 = 0x20,
  MODEMCONFIG1_Bw2 = 0x40, MODEMCONFIG1_Bw3 = 0x80, _MODEMCONFIG1_Bw_MASK = 15, _MODEMCONFIG1_Bw_SHIFT = 4
}

enum  CODINGRATE_T { CODINGRATE_4_5 = 1, CODINGRATE_4_6 = 2, CODINGRATE_4_7 = 3, CODINGRATE_4_8 = 4 }

enum  BW_T {
  BW_7_8 = 0, BW_10_4 = 1, BW_15_6 = 2, BW_20_8 = 3,
  BW_31_25 = 4, BW_41_7 = 5, BW_62_5 = 6, BW_125 = 7,
  BW_250 = 8, BW_500 = 9
}

enum  MODEMCONFIG2_BITS_T {
  MODEMCONFIG2_SymbTimeoutMsb0 = 0x01, MODEMCONFIG2_SymbTimeoutMsb1 = 0x02, _MODEMCONFIG2_SymbTimeoutMsb_MASK = 3, _MODEMCONFIG2_SymbTimeoutMsb_SHIFT = 0,
  MODEMCONFIG2_RxPayloadCrcOn = 0x04, MODEMCONFIG2_TxContinuousMode = 0x08, MODEMCONFIG2_SpreadingFactor0 = 0x10, MODEMCONFIG2_SpreadingFactor1 = 0x20,
  MODEMCONFIG2_SpreadingFactor2 = 0x40, MODEMCONFIG2_SpreadingFactor3 = 0x80, _MODEMCONFIG2_SpreadingFactor_MASK = 15, _MODEMCONFIG2_SpreadingFactor_SHIFT = 4
}

enum  SPREADINGFACTOR_T {
  SPREADINGFACTOR_64 = 6, SPREADINGFACTOR_128 = 7, SPREADINGFACTOR_256 = 8, SPREADINGFACTOR_512 = 9,
  SPREADINGFACTOR_1024 = 10, SPREADINGFACTOR_2048 = 11, SPREADINGFACTOR_4096 = 12
}

enum  PREAMBLEDETECT_BITS_T {
  PREABLEDETECT_PreambleDetectorTol0 = 0x01, PREABLEDETECT_PreambleDetectorTol1 = 0x02, PREABLEDETECT_PreambleDetectorTol2 = 0x04, PREABLEDETECT_PreambleDetectorTol3 = 0x08,
  PREABLEDETECT_PreambleDetectorTol4 = 0x10, _PREABLEDETECT_PreambleDetectorTol4_MASK = 31, _PREABLEDETECT_PreambleDetectorTol4_SHIFT = 0, PREABLEDETECT_PreambleDetectorSize0 = 0x20,
  PREABLEDETECT_PreambleDetectorSize1 = 0x40, _PREABLEDETECT_PreambleDetectorSize_MASK = 3, _PREABLEDETECT_PreambleDetectorSize_SHIFT = 5, PREABLEDETECT_PreambleDetectorOn = 0x80
}

enum  PREAMBLEDETECTORSIZE_T { PREAMBLEDETECTORSIZE_1 = 0, PREAMBLEDETECTORSIZE_2 = 1, PREAMBLEDETECTORSIZE_3 = 2 }

enum  OSC_BITS_T {
  OSC_ClkOut0 = 0x01, OSC_ClkOut1 = 0x02, OSC_ClkOut2 = 0x04, _OSC_ClkOut_MASK = 7,
  _OSC_ClkOut_SHIFT = 0, OSC_RcCalStart = 0x08
}

enum  CLKOUT_T {
  CLKOUT_1 = 0, CLKOUT_2 = 1, CLKOUT_4 = 2, CLKOUT_8 = 3,
  CLKOUT_16 = 4, CLKOUT_32 = 5, CLKOUT_RC = 6, CLKOUT_OFF = 7
}

enum  MODEMCONFIG3_BITS_T { MODEMCONFIG3_AgcAutoOn = 0x04, MODEMCONFIG3_LowDataRateOptimize = 0x08 }

enum  SYNCCONFIG_BITS_T {
  SYNCCONFIG_SyncSize0 = 0x01, SYNCCONFIG_SyncSize1 = 0x02, SYNCCONFIG_SyncSize2 = 0x04, _SYNCCONFIG_SyncSize_MASK = 7,
  _SYNCCONFIG_SyncSize_SHIFT = 0, SYNCCONFIG_SyncOn = 0x10, SYNCCONFIG_PreamblePolarity = 0x20, SYNCCONFIG_AutoRestartMode0 = 0x40,
  SYNCCONFIG_AutoRestartMode1 = 0x80, _SYNCCONFIG_AutoRestartMode_MASK = 3, _SYNCCONFIG_AutoRestartMode_SHIFT = 6
}

enum  AUTORESTARTMODE_T { AUTORESTARTMODE_OFF = 0, AUTORESTARTMODE_ON_NOPLL = 1, AUTORESTARTMODE_ON_PLL = 2 }

enum  FEIMSB_BITS_T {
  FEIMSB_FreqError0 = 0x01, FEIMSB_FreqError1 = 0x02, FEIMSB_FreqError2 = 0x04, FEIMSB_FreqError3 = 0x08,
  _FEIMSB_FreqError_MASK = 15, _FEIMSB_FreqError_SHIFT = 0
}

enum  PACKETCONFIG1_BITS_T {
  PACKETCONFIG1_CrcWhiteningType = 0x01, PACKETCONFIG1_AddressFiltering0 = 0x02, PACKETCONFIG1_AddressFiltering1 = 0x04, _PACKETCONFIG1_AddressFiltering_MASK = 3,
  _PACKETCONFIG1_AddressFiltering_SHIFT = 1, PACKETCONFIG1_CrcAutoClearOff = 0x08, PACKETCONFIG1_CrcOn = 0x10, PACKETCONFIG1_DcFree0 = 0x20,
  PACKETCONFIG1_DcFree1 = 0x40, _PACKETCONFIG1_DcFree_MASK = 3, _PACKETCONFIG1_DcFree_SHIFT = 5, PACKETCONFIG1_PacketFormat = 0x80
}

enum  ADDRESSFILTERING_T { ADDRESSFILTERING_NONE = 0, ADDRESSFILTERING_NODE = 1, ADDRESSFILTERING_NODE_BROADCAST = 2 }

enum  DCFREE_T { DCFREE_NONE = 0, DCFREE_MANCHESTER = 1, DCFREE_WHITENING = 2 }

enum  PACKETCONFIG2_BITS_T {
  PACKETCONFIG2_PayloadLengthMsb0 = 0x01, PACKETCONFIG2_PayloadLengthMsb1 = 0x02, PACKETCONFIG2_PayloadLengthMsb2 = 0x04, _PACKETCONFIG2_PayloadLengthMsb_MASK = 7,
  _PACKETCONFIG2_PayloadLengthMsb_SHIFT = 0, PACKETCONFIG2_BeaconOn = 0x08, PACKETCONFIG2_IoHomeOn = 0x20, PACKETCONFIG2_DataMode = 0x40
}

enum  DETECTOPTIMIZE_BITS_T {
  DETECTOPTIMIZE_DetectionOptimize0 = 0x01, DETECTOPTIMIZE_DetectionOptimize1 = 0x02, DETECTOPTIMIZE_DetectionOptimize2 = 0x04, _DETECTOPTIMIZE_DetectionOptimize_MASK = 7,
  _DETECTOPTIMIZE_DetectionOptimize_SHIFT = 0
}

enum  DETECTIONOPTIMIZE_T { DETECTIONOPTIMIZE_SF7_SF12 = 3, DETECTIONOPTIMIZE_SF6 = 5 }

enum  INVERTIQ_BITS_T { INVERTIQ_InvertIQTxOff = 0x01, INVERTIQ_InvertIQRx = 0x40 }

enum  FIFOTHRESH_BITS_T {
  FIFOTHRESH_FifoThreshold0 = 0x01, FIFOTHRESH_FifoThreshold1 = 0x02, FIFOTHRESH_FifoThreshold2 = 0x04, FIFOTHRESH_FifoThreshold3 = 0x08,
  FIFOTHRESH_FifoThreshold4 = 0x10, FIFOTHRESH_FifoThreshold5 = 0x20, _FIFOTHRESH_FifoThreshold_MASK = 63, _FIFOTHRESH_FifoThreshold_SHIFT = 0,
  FIFOTHRESH_TxStartCondition = 0x80
}

enum  SEQCONFIG1_BITS_T {
  SEQCONFIG1_FromTransit = 0x01, SEQCONFIG1_FromIdle = 0x02, SEQCONFIG1_LowPowerSelection = 0x04, SEQCONFIG1_FromStart0 = 0x08,
  SEQCONFIG1_FromStart1 = 0x10, _SEQCONFIG1_FromStart_MASK = 3, _SEQCONFIG1_FromStart_SHIFT = 3, SEQCONFIG1_IdleMode = 0x20,
  SEQCONFIG1_SequencerStop = 0x40, SEQCONFIG1_SequencerStart = 0x80
}

enum  FROMSTART_T { FROMSTART_ToLowPowerSelection = 0, FROMSTART_ToReceiveState = 1, FROMSTART_ToTransmitState = 2, FROMSTART_ToTransmitStateOnFifoLevel = 3 }

enum  SEQCONFIG2_BITS_T {
  SEQCONFIG2_FromPacketReceived0 = 0x01, SEQCONFIG2_FromPacketReceived1 = 0x02, SEQCONFIG2_FromPacketReceived2 = 0x04, _SEQCONFIG2_FromPacketReceived_MASK = 7,
  _SEQCONFIG2_FromPacketReceived_SHIFT = 0, SEQCONFIG2_FromRxTimeout0 = 0x08, SEQCONFIG2_FromRxTimeout1 = 0x10, _SEQCONFIG2_FromRxTimeout_MASK = 3,
  _SEQCONFIG2_FromRxTimeout_SHIFT = 3, SEQCONFIG2_FromReceive0 = 0x20, SEQCONFIG2_FromReceive1 = 0x40, SEQCONFIG2_FromReceive2 = 0x80,
  _SEQCONFIG2_FromReceive_MASK = 3, _SEQCONFIG2_FromReceive_SHIFT = 5
}

enum  FROMPACKETRECEIVED_T {
  FROMPACKETRECEIVED_ToSequencerOff = 0, FROMPACKETRECEIVED_ToTransmitStateOnFifoEmpty = 1, FROMPACKETRECEIVED_ToLowPowerSelection = 2, FROMPACKETRECEIVED_ToReceiveViaFS = 3,
  FROMPACKETRECEIVED_ToReceive = 4
}

enum  FROMRXTIMEOUT_T { FROMRXTIMEOUT_ToReceiveViaReceiveStart = 0, FROMRXTIMEOUT_ToTransmitState = 1, FROMRXTIMEOUT_ToLowPowerSelection = 2, FROMRXTIMEOUT_ToSequencerOffState = 3 }

enum  FROMRECEIVE_T {
  FROMRECEIVE_ToPcketReceived = 1, FROMRECEIVE_ToLowPowerSelection = 2, FROMRECEIVE_ToPacketReceived = 3, FROMRECEIVE_ToSequencerOffOnRSSI = 4,
  FROMRECEIVE_ToSequencerOffOnSync = 5, FROMRECEIVE_ToSequencerOffOnPreambleDetect = 6
}

enum  TIMERRESOL_BITS_T {
  TIMERRESOL_Timer2Resolution0 = 0x01, TIMERRESOL_Timer2Resolution1 = 0x02, _TIMERRESOL_Timer2Resolution_MASK = 3, _TIMERRESOL_Timer2Resolution_SHIFT = 0,
  TIMERRESOL_Timer1Resolution0 = 0x04, TIMERRESOL_Timer1Resolution1 = 0x08, _TIMERRESOL_Timer1Resolution_MASK = 3, _TIMERRESOL_Timer1Resolution_SHIFT = 2
}

enum  TIMERRESOLUTION_T { TIMERRESOLUTION_DISABLED = 0, TIMERRESOLUTION_64us = 1, TIMERRESOLUTION_4_1ms = 2, TIMERRESOLUTION_262ms = 3 }

enum  IMAGECAL_BITS_T {
  IMAGECAL_TempMonitorOff = 0x01, IMAGECAL_TempThreshold0 = 0x02, IMAGECAL_TempThreshold1 = 0x04, _IMAGECAL_TempThreshold_MASK = 3,
  _IMAGECAL_TempThreshold_SHIFT = 1, IMAGECAL_TenpChange = 0x08, IMAGECAL_ImageCalRunning = 0x20, IMAGECAL_ImageCalStart = 0x40,
  IMAGECAL_AutoImageCalOn = 0x80
}

enum  TEMPTHRESHOLD_T { TEMPTHRESHOLD_5C = 0, TEMPTHRESHOLD_10C = 1, TEMPTHRESHOLD_15C = 2, TEMPTHRESHOLD_20C = 3 }

enum  LOWBAT_BITS_T {
  LOWBAT_LowBatTrim0 = 0x01, LOWBAT_LowBatTrim1 = 0x02, LOWBAT_LowBatTrim2 = 0x04, _LOWBAT_LowBatTrim_MASK = 7,
  _LOWBAT_LowBatTrim_SHIFT = 0, LOWBAT_LowBatOn = 0x08
}

enum  LOWBATTRIM_T {
  LOWBATTRIM_1_695 = 0, LOWBATTRIM_1_764 = 1, LOWBATTRIM_1_835 = 2, LOWBATTRIM_1_905 = 3,
  LOWBATTRIM_1_976 = 4, LOWBATTRIM_2_045 = 5, LOWBATTRIM_2_116 = 6, LOWBATTRIM_2_185 = 7
}

enum  IRQFLAGS1_BITS_T {
  IRQFLAGS1_SyncAddressMatch = 0x01, IRQFLAGS1_PreambleDetect = 0x02, IRQFLAGS1_Timeout = 0x04, IRQFLAGS1_Rssi = 0x08,
  IRQFLAGS1_PllLock = 0x10, IRQFLAGS1_TxReady = 0x20, IRQFLAGS1_RxReady = 0x40, IRQFLAGS1_ModeReady = 0x80
}

enum  IRQFLAGS2_BITS_T {
  IRQFLAGS2_LowBat = 0x01, IRQFLAGS2_CrcOk = 0x02, IRQFLAGS2_PayloadReady = 0x04, IRQFLAGS2_PacketSent = 0x08,
  IRQFLAGS2_FifoOverrun = 0x10, IRQFLAGS2_FifoLevel = 0x20, IRQFLAGS2_FifoEmpty = 0x40, IRQFLAGS2_FifoFull = 0x80
}

enum  DIOMAPPING1_BITS_T {
  DOIMAPPING1_Dio3Mapping0 = 0x01, DOIMAPPING1_Dio3Mapping1 = 0x02, DOIMAPPING1_Dio3Mapping_MASK = 3, DOIMAPPING1_Dio3Mapping_SHIFT = 0,
  DOIMAPPING1_Dio2Mapping0 = 0x04, DOIMAPPING1_Dio2Mapping1 = 0x08, DOIMAPPING1_Dio2Mapping_MASK = 3, DOIMAPPING1_Dio2Mapping_SHIFT = 2,
  DOIMAPPING1_Dio1Mapping0 = 0x10, DOIMAPPING1_Dio1Mapping1 = 0x20, DOIMAPPING1_Dio1Mapping_MASK = 3, DOIMAPPING1_Dio1Mapping_SHIFT = 4,
  DOIMAPPING1_Dio0Mapping0 = 0x40, DOIMAPPING1_Dio0Mapping1 = 0x80, DOIMAPPING1_Dio0Mapping_MASK = 3, DOIMAPPING1_Dio0Mapping_SHIFT = 6
}

enum  DIOMAPPING2_BITS_T {
  DOIMAPPING2_MapPreambleDetect = 0x01, DOIMAPPING2_Dio5Mapping0 = 0x10, DOIMAPPING2_Dio5Mapping1 = 0x20, DOIMAPPING2_Dio5Mapping_MASK = 3,
  DOIMAPPING2_Dio5Mapping_SHIFT = 4, DOIMAPPING2_Dio4Mapping0 = 0x40, DOIMAPPING2_Dio4Mapping1 = 0x80, DOIMAPPING2_Dio4Mapping_MASK = 3,
  DOIMAPPING2_Dio4Mapping_SHIFT = 6
}

enum  DIOMAPPING_T { DIOMAPPING_00 = 0, DIOMAPPING_01 = 1, DIOMAPPING_10 = 2, DIOMAPPING_11 = 3 }

enum  PLLHOP_BITS_T { PLLHOP_FastHopOn = 0x80 }

enum  TCXO_BITS_T { TCXO_TcxoOn = 0x10 }

enum  PADAC_BITS_T {
  PADAC_PaDac0 = 0x01, PADAC_PaDac1 = 0x02, PADAC_PaDac2 = 0x04, _PADAC_PaDac_MASK = 7,
  _PADAC_PaDac_SHIFT = 0
}

enum  PADAC_T { PADAC_DEFAULT = 4, PADAC_BOOST = 7 }

enum  BITRATEFRAC_BITS_T {
  BITRATEFRAC_BitRateFrac0 = 0x01, BITRATEFRAC_BitRateFrac1 = 0x02, BITRATEFRAC_BitRateFrac2 = 0x04, BITRATEFRAC_BitRateFrac3 = 0x08,
  _BITRATEFRAC_BitRateFrac_MASK = 15, _BITRATEFRAC_BitRateFrac_SHIFT = 0
}

enum  ACFREF_BITS_T {
  AGCREF_AgcReferenceLevel0 = 0x01, AGCREF_AgcReferenceLevel1 = 0x02, AGCREF_AgcReferenceLevel2 = 0x04, AGCREF_AgcReferenceLevel3 = 0x08,
  AGCREF_AgcReferenceLevel4 = 0x10, AGCREF_AgcReferenceLevel5 = 0x20, _AGCREF_AgcReferenceLevel_MASK = 63, _AGCREF_AgcReferenceLevel_SHIFT = 0
}

enum  ACGTHRESH1_BITS_T {
  AGCTHRESH1_AcgStep10 = 0x01, AGCTHRESH1_AcgStep11 = 0x02, AGCTHRESH1_AcgStep12 = 0x04, AGCTHRESH1_AcgStep13 = 0x08,
  _AGCTHRESH1_AcgStep1_MASK = 15, _AGCTHRESH1_AcgStep1_SHIFT = 0
}

enum  ACGTHRESH2_BITS_T {
  AGCTHRESH2_AcgStep30 = 0x01, AGCTHRESH2_AcgStep31 = 0x02, AGCTHRESH2_AcgStep32 = 0x04, AGCTHRESH2_AcgStep33 = 0x08,
  _AGCTHRESH2_AcgStep3_MASK = 15, _AGCTHRESH2_AcgStep3_SHIFT = 0, AGCTHRESH2_AcgStep20 = 0x10, AGCTHRESH2_AcgStep21 = 0x20,
  AGCTHRESH2_AcgStep22 = 0x40, AGCTHRESH2_AcgStep23 = 0x80, _AGCTHRESH2_AcgStep2_MASK = 15, _AGCTHRESH2_AcgStep2_SHIFT = 4
}

enum  LOR_DETECTIONTHRESHOLD_T { LOR_DetectionThreshold_SF7_SF12 = 0x0a, LOR_DetectionThreshold_SF6 = 0x0c }

enum  ACGTHRESH3_BITS_T {
  AGCTHRESH3_AcgStep50 = 0x01, AGCTHRESH3_AcgStep51 = 0x02, AGCTHRESH3_AcgStep52 = 0x04, AGCTHRESH3_AcgStep53 = 0x08,
  _AGCTHRESH3_AcgStep5_MASK = 15, _AGCTHRESH3_AcgStep5_SHIFT = 0, AGCTHRESH3_AcgStep40 = 0x10, AGCTHRESH3_AcgStep41 = 0x20,
  AGCTHRESH3_AcgStep42 = 0x40, AGCTHRESH3_AcgStep43 = 0x80, _AGCTHRESH3_AcgStep4_MASK = 15, _AGCTHRESH3_AcgStep4_SHIFT = 4
}

enum  RADIO_STATES_T { STATE_IDLE = 0, STATE_RX_RUNNING, STATE_TX_RUNNING, STATE_CAD }


Detailed Description

Enumeration Type Documentation

enum RADIO_MODEM_T

What modem we are configured for

enum RADIO_EVENT_T

Events that can occurr during a TX or RX operation.

When sending or receiving a packet (calling setTx()/send() or setRx()), the state will be initialized to ESTATE_EXEC to indicate the operation is in progress. Once an event has occurred, this state will be updated accordingly.

For receiving, if RX_DONE is set, then it is safe to retrieve the rx buffer (via getRxBuffer()/getRxBufferStr()) as well as query the RSSI and SNR. On RX_ERROR, these values will be the same as they were last set during the last RX_DONE event.

enum SX1276_REGS_T

SX1276 registers

NOTE: reserved registers must not be written into or read from. Reserved bitfields must always be 0.

This device has a set of "common" registers, as well as registers that represent different things depending on whether the device in in LoRa mode or FSK/OOK mode. So here, we will prefix the register names with COM (common), LOR (LoRa mode), and FSK (FSK/OOK mode) accordingly.

enum OPMODE_BITS_T

OpMode register (differing bitfields depending on mode)

enum MODE_T

Mode values

enum FSK_MODULATION_TYPE_T

FSK_ModulationType values

enum PACONFIG_BITS_T

RegPaConfig register

enum PARAMP_BITS_T

RegPaRamp register

enum PARAMP_T

PARAMP_PaRamp values

enum MODSHAPING_T

PARAMP_ModulationShaping values. Note, these mean different things depending on whether you are using FSK or OOK. Hence the FSK/OOK dups. We will also name these as 'MODSHAPING_', rather than the lengthy 'MODULATIONSHAPING... '

enum OCP_BITS_T

RegOcp register (see datasheet for OcpTrim values)

enum LNA_BITS_T

Lna register

enum LNABOOSTHF_T

LnaBoostHf values

enum LNABOOSTLF_T

LnaBoostLf values

enum LNAGAIN_T

LnaGain values

enum RXCONFIG_BITS_T

FSK_RxConfig register. See Table 24 in the data sheet for the meanings of the RxTrigger values.

enum RSSICONFIG_BITS_T

FSK_RssiConfig register

enum RSSISMOOTHING_T

RssiSmoothing values

enum LOR_IRQFLAG_BITS_T

LOR_RegIrqFlagsMask and LOR_RegIrqFlags registers

enum RXBW_BITS_T

FSK_RxBw register and FSK_RegAfcBw registers

enum RXBWMANT_T

RXBW_RxBwMant values

enum RXBWEXP_T

RXBW_RxBwExp values

enum OOKPEAK_BITS_T

FSK_OokPeak register

enum OOKPEAKTHRESHSTEP_T

OokPeakThreshStep values

enum OOKTHRESHTYPE_T

OokPeakThreshType values

enum OOKAVG_BITS_T

FSK_OokAvg register

enum OOKAVGTHRESHFILT_T

OokAvgThreshFilt values

enum OOKAVGOFFSET_T

OokAvgOffset values

enum OOKPEAKTHRESHDEC_T

OokPeakThreshDec values

enum MODEMSTAT_BITS_T

LOR_ModemStat register

enum AFCFEI_BITS_T

FSK_RegAfcFei register

enum HOPCHANNEL_BITS_T

LOR_HopChannel register

enum MODEMCONFIG1_BITS_T

LOR_ModemConfig1 register

enum CODINGRATE_T

CodingRate values

enum BW_T

Bw values

enum MODEMCONFIG2_BITS_T

LOR_ModemConfig2 register

enum SPREADINGFACTOR_T

SpreadingFactor values (expressed as a base-2 logarithm)

enum PREAMBLEDETECT_BITS_T

FSK_PreableDetect register

enum PREAMBLEDETECTORSIZE_T

PreambleDetectorSize values

enum OSC_BITS_T

FSK_Osc register

enum CLKOUT_T

ClkOut values

enum MODEMCONFIG3_BITS_T

LOR_ModemConfig3 register

enum SYNCCONFIG_BITS_T

FSK_SyncConfig register

enum AUTORESTARTMODE_T

AutoRestartMode values

enum FEIMSB_BITS_T

LOR_FeiMsb register (4 bit MSB of Fei value)

enum PACKETCONFIG1_BITS_T

FSK_PacketConfig1 register

enum ADDRESSFILTERING_T

AddressFiltering values

enum DCFREE_T

DcFree values (DC-free encoding/decoding schemes)

enum PACKETCONFIG2_BITS_T

FSK_PacketConfig2 register

enum DETECTOPTIMIZE_BITS_T

LOR_DetectOptimize register

enum DETECTIONOPTIMIZE_T

DetectionOptimize values

enum INVERTIQ_BITS_T

LOR_InvertIQ register

enum FIFOTHRESH_BITS_T

FSK_FifoThresh register

enum SEQCONFIG1_BITS_T

FSK_SeqConfig1 register

enum FROMSTART_T

FromStart values

enum SEQCONFIG2_BITS_T

FSK_SeqConfig2 register

enum FROMPACKETRECEIVED_T

FromPacketReceived values

enum FROMRXTIMEOUT_T

FromRxTimeout values

enum FROMRECEIVE_T

FromReceive values

enum TIMERRESOL_BITS_T

FSK_TimerResol register

enum TIMERRESOLUTION_T

Timer1/Timer2Resolution values

enum IMAGECAL_BITS_T

FSK_ImageCal register

enum TEMPTHRESHOLD_T

TempThreshold values

enum LOWBAT_BITS_T

FSK_LowBat register

enum LOWBATTRIM_T

LowBatTrim values

enum IRQFLAGS1_BITS_T

FSK_IrqFlags1 register

enum IRQFLAGS2_BITS_T

FSK_IrqFlags2 register

enum DIOMAPPING1_BITS_T

COM_DioMapping1 register. See Tables 18, 29, and 30 in the datasheet for the different mappings depending on mode.

enum DIOMAPPING2_BITS_T

COM_DioMapping2 register. See Tables 18, 29, and 30 in the datasheet for the different mappings depending on mode.

enum DIOMAPPING_T

DioXMapping values

These differ depending on LoRa, FSK packet, and FSK continous modes. See Tables 29, 30 (FSK), and 18 (LoRa) in the datasheet for details.

enum PLLHOP_BITS_T

LOR_PllHop (or FSK_PllHop depending on who you believe) register

enum TCXO_BITS_T

COM_Tcxo register

enum PADAC_BITS_T

COM_PaDac register

enum PADAC_T

PaDac values

enum BITRATEFRAC_BITS_T

FSK_BitRateFrac register

enum ACFREF_BITS_T

COM_AgcRef register

These registers have 2 sets of values depending on whether LowFrequencyModeOn is set or unset.

enum ACGTHRESH1_BITS_T

COM_AgcThresh1 register

These registers have 2 sets of values depending on whether LowFrequencyModeOn is set or unset.

enum ACGTHRESH2_BITS_T

COM_AgcThresh2 register

These registers have 2 sets of values depending on whether LowFrequencyModeOn is set or unset.

enum LOR_DETECTIONTHRESHOLD_T

LOR_RegDetectionThreshold values

enum ACGTHRESH3_BITS_T

COM_AgcThresh3 register

These registers have 2 sets of values depending on whether LowFrequencyModeOn is set or unset.

enum RADIO_STATES_T
protected

What internal state are we in

Collaboration diagram for libupm-sx1276:
Generated on Tue Dec 8 2015 09:26:09 for upm by   doxygen 1.8.9.1
