BME280 Class Reference

Public Member Functions
	BME280 (int bus, int devAddr=BME280_I2C_ADDRESS1)
	~BME280 ()
uint16_t	getTemperatureRaw ()
int	getTemperatureCelcius ()
uint16_t	getHumidityRaw ()
int	getHumidityRelative ()
const char *	getModuleName ()
uint32_t	getPressureRaw ()
int	getPressurePa ()
int32_t	getTemperatureInternal (void)
int32_t	getPressureInternal (void)
int32_t	getHumidityInternal (void)
int32_t	getTemperatureRawInternal (void)
int32_t	getPressureRawInternal (void)
int32_t	getHumidityRawInternal (void)
bool	isAvailable ()

Constructor & Destructor Documentation

BME280	(	int	bus,
		int	devAddr = BME280_I2C_ADDRESS1
	)

Instanciates a BME280 object

Parameters

bus	number of used bus
devAddr	address of used i2c device
mode	BME280 mode

Here is the call graph for this function:

~BME280

(

)

BME280 object destructor, basicaly it close i2c connection.

Member Function Documentation

uint16_t getTemperatureRaw

(

)

Get temperature measurement.

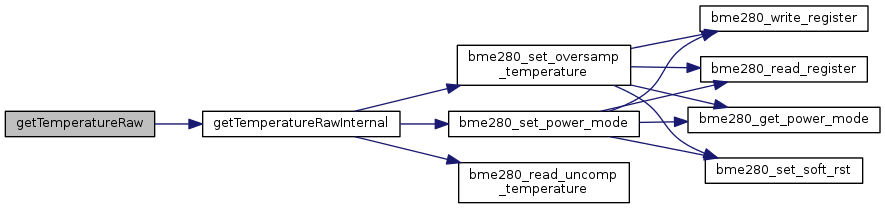

Here is the call graph for this function:

int getTemperatureCelcius ( )

virtual

Get temperature measurement.

Implements ITemperatureSensor.

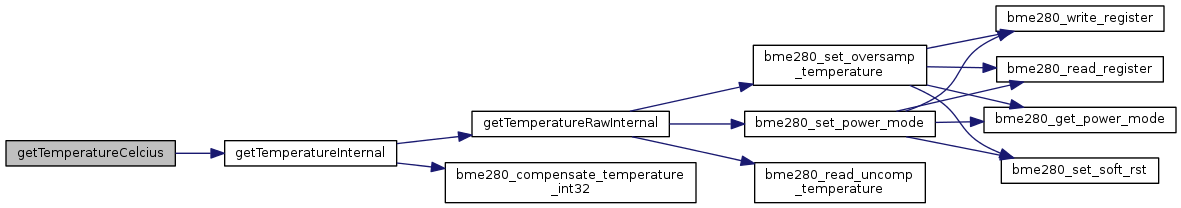

Here is the call graph for this function:

uint16_t getHumidityRaw

(

)

Get relative humidity measurement.

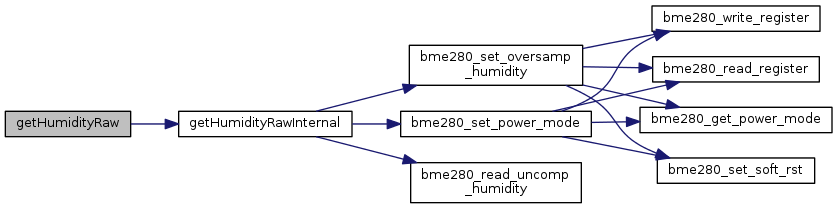

Here is the call graph for this function:

int getHumidityRelative ( )

virtual

Get relative humidity measurement.

Implements IHumiditySensor.

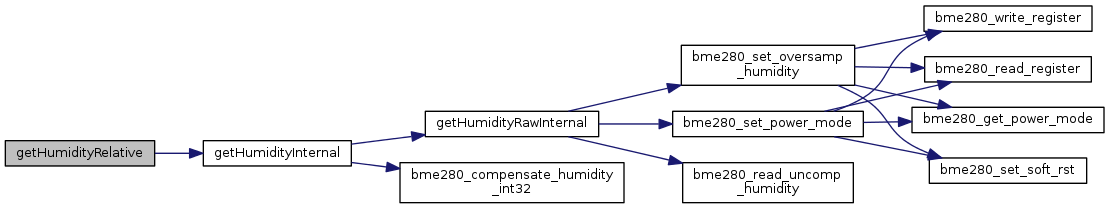

Here is the call graph for this function:

const char* getModuleName ( )

inlinevirtual

Returns sensor module name

Implements IModuleStatus.

uint32_t getPressureRaw

(

)

Return pressure

Here is the call graph for this function:

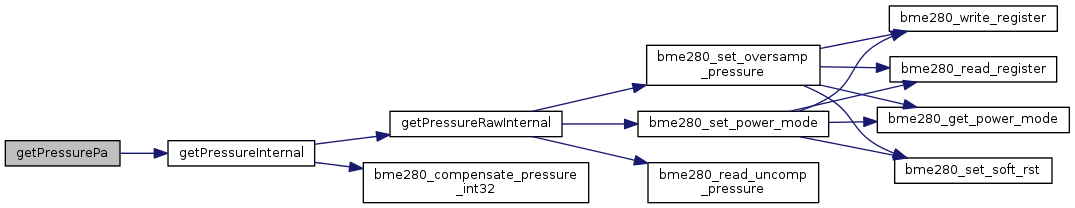

int getPressurePa ( )

virtual

Return calculated pressure (Pa)

Implements IPressureSensor.

Here is the call graph for this function:

int32_t getTemperatureInternal

(

void

)

Return temperature

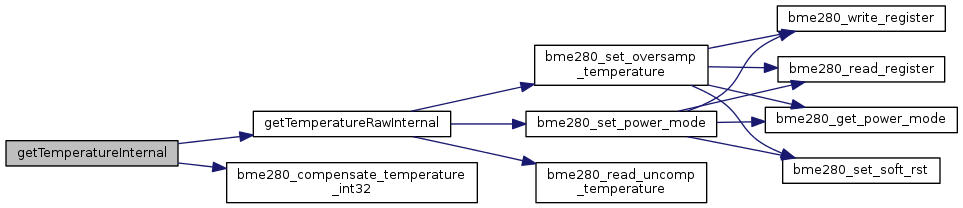

Here is the call graph for this function:

Here is the caller graph for this function:

int32_t getPressureInternal

(

void

)

Return pressure

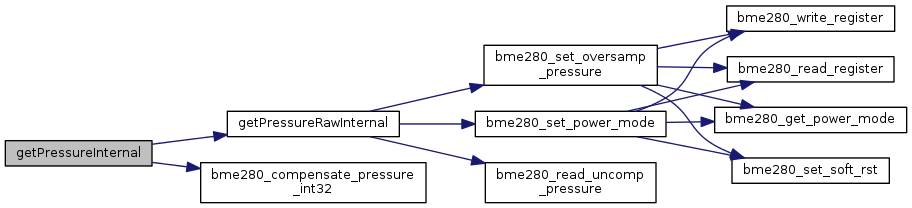

Here is the call graph for this function:

Here is the caller graph for this function:

int32_t getHumidityInternal

(

void

)

Return humidity

Here is the call graph for this function:

Here is the caller graph for this function:

int32_t getTemperatureRawInternal

(

void

)

Return temperature

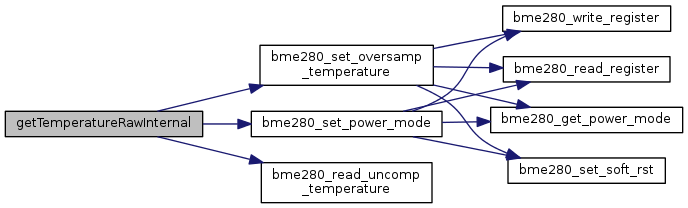

Here is the call graph for this function:

Here is the caller graph for this function:

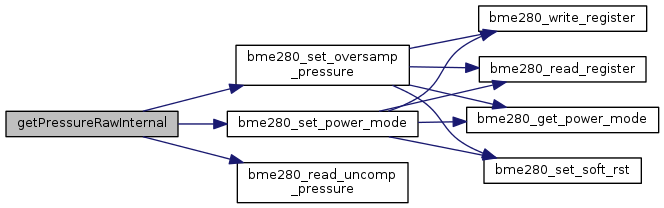

int32_t getPressureRawInternal

(

void

)

Return pressure

Here is the call graph for this function:

Here is the caller graph for this function:

int32_t getHumidityRawInternal

(

void

)

Return humidity

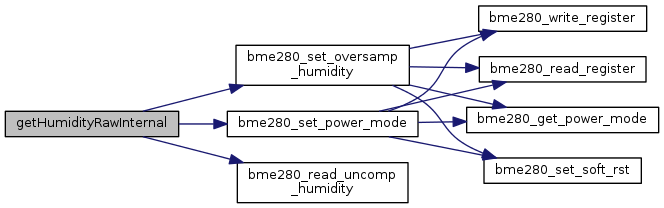

Here is the call graph for this function:

Here is the caller graph for this function:

bool isAvailable

(

)

Returns whether the correct chip is present at the given address.

Inheritance diagram for BME280:

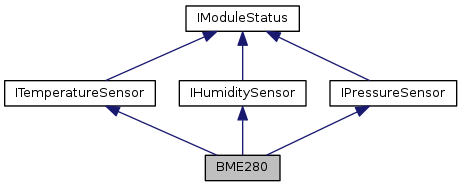

Collaboration diagram for BME280:

---

The documentation for this class was generated from the following files:

• /iotdk/jenkins/workspace/upm-doc-stable/src/bme280/bme280.h
• /iotdk/jenkins/workspace/upm-doc-stable/src/bme280/bme280.cxx
