SI7005 Class Reference

C++ API for SI7005 sensor (Humidity And Temperature Sensor) More...

Detailed Description

The Silicon Labs Si7005 SI7005 is a digital relative humidity and temperature sensor.

• ID: si7005
• Name: Silicon Labs Si7005 LED lighting controller
• Other Names: Si7005
• Category: temp
• Manufacturer: silabs
• Connection: i2c

Public Member Functions
	SI7005 (int bus, int pin)
	~SI7005 ()
uint16_t	getTemperatureRaw ()
int	getTemperatureCelcius ()
uint16_t	getHumidityRaw ()
int	getHumidityRelative ()
const char *	getModuleName ()
bool	isAvailable ()
void	enableHeater ()
void	disableHeater ()
void	enableFastConversionMode ()
void	disableFastConversionMode ()

Constructor & Destructor Documentation

SI7005	(	int	bus,
		int	pin
	)

Instantiates a SI7005 object

Parameters

bus	number of used bus
devAddr	address of used i2c device
pin	mraa gpio number for chip select pin

Here is the call graph for this function:

~SI7005

(

)

SI7005 object destructor.

Member Function Documentation

uint16_t getTemperatureRaw

(

)

Get temperature measurement.

Here is the caller graph for this function:

int getTemperatureCelcius ( )

virtual

Get temperature measurement.

Implements ITemperatureSensor.

Here is the call graph for this function:

uint16_t getHumidityRaw

(

)

Get relative humidity measurement.

Here is the caller graph for this function:

int getHumidityRelative ( )

virtual

Get relative humidity measurement.

Implements IHumiditySensor.

Here is the call graph for this function:

const char* getModuleName ( )

inlinevirtual

Returns sensor module name

Implements IModuleStatus.

bool isAvailable

(

)

Detects the sensor to ensure it is connected as required.

Here is the caller graph for this function:

void enableHeater

(

)

Enables the integrated heating element.

void disableHeater

(

)

Disables the integrated heating element.

void enableFastConversionMode

(

)

Enables fast conversion mode.

void disableFastConversionMode

(

)

Enables fast conversion mode.

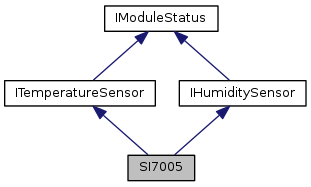

Inheritance diagram for SI7005:

Collaboration diagram for SI7005:

---

The documentation for this class was generated from the following files:

• /iotdk/jenkins/workspace/upm-doc-stable/src/si7005/si7005.hpp
• /iotdk/jenkins/workspace/upm-doc-stable/src/si7005/si7005.cxx
