DFREC Class Reference

DFRobot EC Meter. More...

Detailed Description

• ID: dfrec
• Name: Analog Electrical Conductivity (EC) Sensor
• Category: liquid
• Manufacturer: dfrobot
• Connection: ainput uart
• Link: https://www.dfrobot.com/index.php?route=product/product&product_id=1123&search=DFR0300&description=true#.Vx49p-_n-M8

The driver was tested with the DFRobot EC Analog Sensor.

This device measure the electrical conductivity of an aqueous solution. The included probe is a K=1 model.

Calibration is somewhat complicated - see the DFRobot wiki for instructions on calibration. Functions are provided to supply the appropriate values. By default, the values used in the DFRobot arduino example are used.

wiki: https://www.dfrobot.com/wiki/index.php/Analog_EC_Meter_SKU:DFR0300

  // Instantiate a DFRobot EC sensor on analog pin A0, with a ds18b20
  // temperature sensor connected to UART 0, and a device index (for
  // the ds1820b uart bus) of 0, and an analog reference voltage of
  // 5.0.
  upm::DFREC *sensor = new upm::DFREC(0, 0, 0, 5.0);

  // Every 2 seconds, update and print values
  while (shouldRun)
    {
      sensor->update();

      cout << "EC = "
           << sensor->getEC()
           << " ms/cm"
           << endl;

      cout << "Volts = "
           << sensor->getVolts()
           << ", Temperature = "
           << sensor->getTemperature()
           << " C"
           << endl;

      cout << endl;

      sleep(2);
    }

Public Member Functions
	DFREC (unsigned int apin, unsigned int uart_ow, unsigned int device_idx, float a_ref)
	~DFREC ()
void	update ()
void	setOffset (float offset)
void	setScale (float scale)
float	getEC ()
float	getVolts ()
float	getNormalized ()
float	getTemperature ()
void	setThresholdMinMax (float min, float max)
void	setThreshold1 (float thres, float scale, float offset)
void	setThreshold2 (float thres, float scale, float offset)
void	setThreshold3 (float scale, float offset)

Protected Attributes
dfrec_context	m_dfrec

Constructor & Destructor Documentation

DFREC	(	unsigned int	apin,
		unsigned int	uart_ow,
		unsigned int	device_idx,
		float	a_ref
	)

DFREC object constructor

Parameters

apin	Analog pin to use.
uart_ow	The UART that the ds10b20 temperature sensor is connected to.
device_idx	The device index of the ds18b20 sensor to use. If you only have 1 ds18b20 sensor on your DS one wire bus, you would pass 0 here.
a_ref	The analog reference voltage in use

Returns

dfrec context

~DFREC

(

)

DFREC object destructor

Here is the call graph for this function:

Member Function Documentation

void update

(

void

)

Read the sensor status and update internal state. dfrec_update() must have been called before calling any of the other get*() functions.

Here is the call graph for this function:

void setOffset

(

float

offset

)

Set sensor offset. This offset is applied to the return EC value before scaling. Default is 0.0.

Parameters

offset

The offset to apply.

Here is the call graph for this function:

void setScale

(

float

scale

)

Set sensor scale. The return EC value is scaled by this value before the offset is applied. Default is 1.0.

Parameters

scale

The scale to apply.

Here is the call graph for this function:

float getEC

(

)

Get computed EC (ms/cm) value from the sensor. update() must have been called prior to calling this function.

Returns

EC value in ms/cm.

Here is the call graph for this function:

float getVolts

(

)

Get the measured volts from the sensor. update() must have been called prior to calling this function.

Returns

The voltage measurement.

Here is the call graph for this function:

float getNormalized

(

)

Get the normalized ADC value from the sensor. update() must have been called prior to calling this function.

Returns

The normalized ADC value.

Here is the call graph for this function:

float getTemperature

(

void

)

Get the measured temperature from the temperature sensor. The return value will be in Celsius.

Returns

temperature read from the sensor in Celsius.

Here is the call graph for this function:

void setThresholdMinMax	(	float	min,
		float	max
	)

Set the global threshold min and max values. See the DFRobot wiki for details.

Parameters

min	Minimum threshold to be valid. Default 150.
max	Maximum threshold to be valid. Default 3300.

Here is the call graph for this function:

void setThreshold1	(	float	thres,
		float	scale,
		float	offset
	)

Set the threshold 1 values. See the DFRobot wiki for details.

Parameters

thres	Threshold maximum for value section 1. Default 448.
scale	Scale for value section 1. Default 6.64.
offset	Offset for value section 1. Default -64.32.

Here is the call graph for this function:

void setThreshold2	(	float	thres,
		float	scale,
		float	offset
	)

Set the threshold 2 values. See the DFRobot wiki for details.

Parameters

thres	Threshold maximum for value section 2. Default 1457.
scale	Scale for value section 2. Default 6.98.
offset	Offset for value section 2. Default -127.0.

Here is the call graph for this function:

void setThreshold3	(	float	scale,
		float	offset
	)

Set the threshold 3 values. See the DFRobot wiki for details.

Parameters

scale	Scale for value section 3. Default 5.3.
offset	Offset for value section 3. Default 2278.

Here is the call graph for this function:

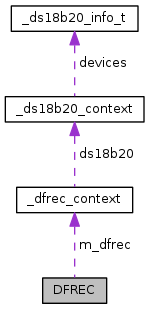

Collaboration diagram for DFREC:

---
