Joystick12 Class Reference

API for the ElecFreaks* Joystick v 1.2-1.4 Breakout. More...

Detailed Description

• ID: joystick12

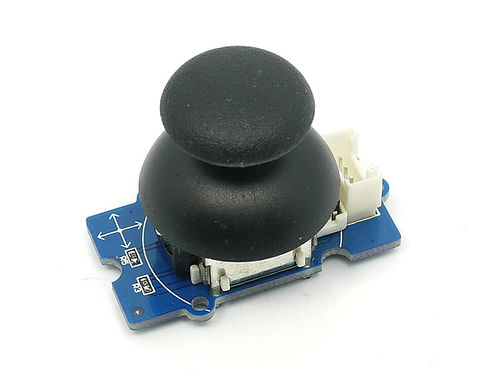

• Name: 2-axis Analog Joystick
• Category: ainput
• Manufacturer: generic
• Connection: analog
• Kit: robok

This module defines the Joystick API, and implementation for the X and Y buttons could be treated as normal GPIO - this enables easier interrupt support. This driver should be compatible with any 2-axis analog joystick.

Public Member Functions
	Joystick12 (int pinX, int pinY)
	~Joystick12 ()
float	getXInput ()
float	getYInput ()

Constructor & Destructor Documentation

Joystick12	(	int	pinX,
		int	pinY
	)

Instantiates a Joystick object

Parameters

pinX	Analog pin where the X input is connected
pinY	Analog pin where the Y input is connected

~Joystick12

(

)

Joystick object destructor

Member Function Documentation

float getXInput

(

)

Gets the X input

Returns

float X value, ranging from -1 to 1; 0 is mid

float getYInput

(

)

Gets the Y input

Returns

float Y value, ranging from -1 to 1; 0 is mid

---

The documentation for this class was generated from the following files:

• /iotdk/jenkins/workspace/upm-doc-stable/src/joystick12/joystick12.hpp
• /iotdk/jenkins/workspace/upm-doc-stable/src/joystick12/joystick12.cxx
