Speaker Class Reference

API for the Speaker. More...

Detailed Description

• ID: speaker libupm-speaker
• Name: Speaker
• Other Names: Grove Speaker
• Category: sound
• Manufacturer: seeed
• Connection: gpio
• Kit: hak

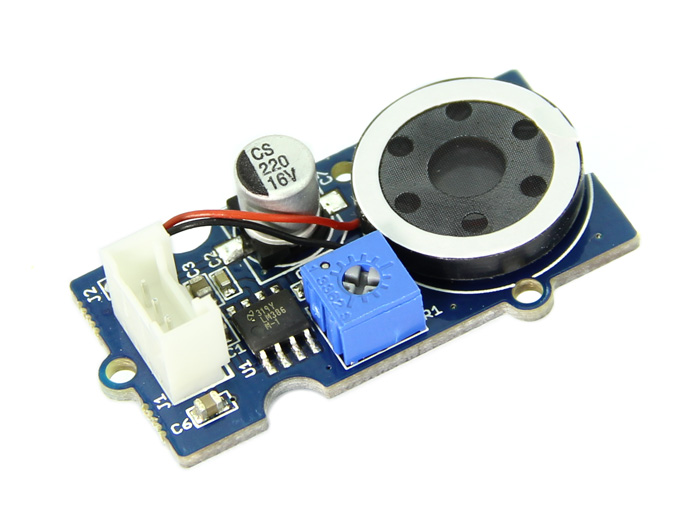

UPM module for the Speaker. This sensor can generate different tones and sounds depending on the frequency of the input signal.

It can operate in one of two modes: GPIO (default) and PWM.

Depending on which mode is selected, some methods may not be usable. In GPIO mode, the playAll() and playSound() methods are supported. In PWM mode, setFrequency(), emit(), on() and off() are supported. Calling a method not appropriate for the mode will have no effect.

  // Instantiate a Speaker on digital pin D2
  upm::Speaker* speaker = new upm::Speaker(2);

  // Play all 7 of the lowest notes
  speaker->playAll();

  // Play a medium C-sharp
  speaker->playSound('c', true, "med");

Public Member Functions
	Speaker (int pin, bool usePWM=false)
virtual	~Speaker ()
void	playAll ()
void	playSound (char letter, bool sharp, std::string vocalWeight)
void	emit (unsigned int freq, unsigned int emit_ms)
void	setFrequency (unsigned int freq)
void	on ()
void	off ()

Protected Attributes
speaker_context	m_speaker

Constructor & Destructor Documentation

Speaker	(	int	pin,
		bool	usePWM = false
	)

Speaker constructor

Parameters

pin	Digital pin to use
usePWM	If true, PWM mode will be used, otherwise GPIO mode (default) is used.

Here is the call graph for this function:

~Speaker ( )

virtual

Speaker destructor

Here is the call graph for this function:

Member Function Documentation

void playAll

(

)

Plays all alto notes (lowest notes)

Here is the call graph for this function:

void playSound	(	char	letter,
		bool	sharp,
		std::string	vocalWeight
	)

Plays a sound and a note whether it's sharp or not

Parameters

letter	Character name of the note ('a', 'b', 'c', 'd', 'e', 'f', or 'g')
sharp	If true, plays a sharp version of the note; otherwise, does not play the note
vocalWeight	String to determine whether to play a low ("low"), a medium ("med"), or a high ("high") note

Here is the call graph for this function:

void emit	(	unsigned int	freq,
		unsigned int	emit_ms
	)

Emit a specific frequency for a given period of time and return. This function only operates when in PWM mode. The frequency is limited to between 50-32000Hz. In addition, the allowable frequencies may be restricted further by the capabilities of your PWM hardware.

Parameters

freq	The frequency to emit. Must be between 50 and 32000Hz inclusive.
emit_ms	The number of milliseconds to emit the frequency.

Here is the call graph for this function:

void setFrequency

(

unsigned int

freq

)

Set a default frequency to be used with on() and off(). This function only operates when in PWM mode. The frequency is limited to between 50-32000Hz. In addition, the allowable frequencies may be restricted further by the capabilities of your PWM hardware.

Parameters

freq	The frequency to emit. Must be between 50 and 32000Hz inclusive.

Here is the call graph for this function:

void on

(

)

Turn the speaker on, and emit the frequency last specified with setFrequency() or emit(). This function only operates when in PWM mode.

Here is the call graph for this function:

void off

(

)

Turn the speaker off. This function only operates when in PWM mode.

Here is the call graph for this function:

Collaboration diagram for Speaker:

---

The documentation for this class was generated from the following files:

• /iotdk/jenkins/workspace/upm-doc-stable/src/speaker/speaker.hpp
• /iotdk/jenkins/workspace/upm-doc-stable/src/speaker/speaker.cxx
