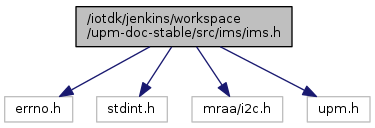

Include dependency graph for ims.h:

API Description

/*
 * Author: Noel Eck <noel.eck@intel.com>
 * Copyright (c) 2016 Intel Corporation.
 *
 * Permission is hereby granted, free of charge, to any person obtaining
 * a copy of this software and associated documentation files (the
 * "Software"), to deal in the Software without restriction, including
 * without limitation the rights to use, copy, modify, merge, publish,
 * distribute, sublicense, and/or sell copies of the Software, and to
 * permit persons to whom the Software is furnished to do so, subject to
 * the following conditions:
 *
 * The above copyright notice and this permission notice shall be
 * included in all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
 * EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
 * MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
 * NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE
 * LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION
 * OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION
 * WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
 */
#include <unistd.h>
#include <stdio.h>
#include <signal.h>
#include "ims.h"
#include "upm_utilities.h"
bool shouldRun = true;
void sig_handler(int signo)
{
    if (signo == SIGINT)
        shouldRun = false;
}
int main()
{
    signal(SIGINT, sig_handler);
    ims_context* sensor = ims_init(0, IMS_ADDRESS_DEFAULT);
    if (!sensor)
    {
        printf("ims_init() failed\n");
        return 1;
    }
    // Every second, sample the sensor outputs
    while (shouldRun)
    {
        uint16_t version, light, moisture, temp;
        if (ims_get_version(sensor, &version) == UPM_SUCCESS &&
            ims_get_light(sensor, &light) == UPM_SUCCESS &&
            ims_get_moisture(sensor, &moisture) == UPM_SUCCESS &&
            ims_get_temperature(sensor, &temp) == UPM_SUCCESS)
            printf("Version: %d light: 0x%04x moisture: 0x%04x temp: %3.2f C\n",
                    version, light, moisture, temp/10.0);
        else
            break;
        upm_delay(1);
    }
    printf("Exiting\n");
    ims_close(sensor);
    return 0;
}

Go to the source code of this file.

Data Structures
struct	ims_context

Functions
ims_context *	ims_init (int16_t i2c_bus, int16_t i2c_address)

void	ims_close (ims_context *dev)

upm_result_t	ims_read (const ims_context dev, IMS_RD_COMMAND cmd, uint16_t rd_data)

upm_result_t	ims_write (const ims_context *dev, IMS_WR_COMMAND cmd, uint8_t wr_data)

upm_result_t	ims_get_version (const ims_context dev, uint16_t rd_data)

upm_result_t	ims_get_moisture (const ims_context dev, uint16_t rd_data)

upm_result_t	ims_get_light (const ims_context dev, uint16_t rd_data)

upm_result_t	ims_get_temperature (const ims_context dev, uint16_t rd_data)

upm_result_t	ims_reset (const ims_context *dev)

upm_result_t	ims_reset_i2c_address (const ims_context *dev, uint8_t address_new)

upm_result_t	ims_sleep (const ims_context *dev)

Macros
#define	IMS_ADDRESS_DEFAULT 0x20

Typedefs
typedef enum _IMS_RD_COMMAND	IMS_RD_COMMAND

Enumerations
enum	_IMS_RD_COMMAND { IMS_GET_CAPACITANCE = 0x00, IMS_GET_ADDRESS = 0x02, IMS_GET_LIGHT = 0x04, IMS_GET_TEMPERATURE = 0x05, IMS_GET_VERSION = 0x07, IMS_GET_BUSY = 0x09 }

enum	IMS_WR_COMMAND { IMS_SET_ADDRESS = 0x01, IMS_MEASURE_LIGHT = 0x03, IMS_RESET = 0x06, IMS_SLEEP = 0x08 }

Function Documentation

ims_context* ims_init	(	int16_t	i2c_bus,
		int16_t	i2c_address
	)

Initialize sensor

Parameters

i2c_bus	Target I2C bus
i2c_address	Target I2C address (default is 0x20)

Returns: sensor context pointer

void ims_close ( ims_context * dev )

Sensor close method. Cleans up any memory held by this device

Parameters

sensor context pointer

upm_result_t ims_read	(	const ims_context *	dev,
		IMS_RD_COMMAND	cmd,
		uint16_t *	rd_data
	)

Read I2C Moisture Sensor registers

Parameters

dev	Sensor context pointer
cmd	Read command
rd_data	Data returned from sensor (1 or 2 bytes depending on cmd)

Returns: Function result code

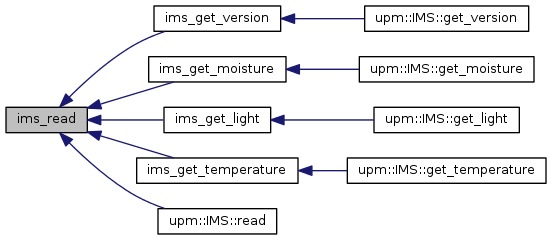

Here is the caller graph for this function:

upm_result_t ims_write	(	const ims_context *	dev,
		IMS_WR_COMMAND	cmd,
		uint8_t	wr_data
	)

Write I2C Moisture Sensor registers

Parameters

dev	Sensor context pointer
cmd	Write command
wr_data	Target data to write (only used for IMS_SET_ADDRESS)

Returns: Function result code

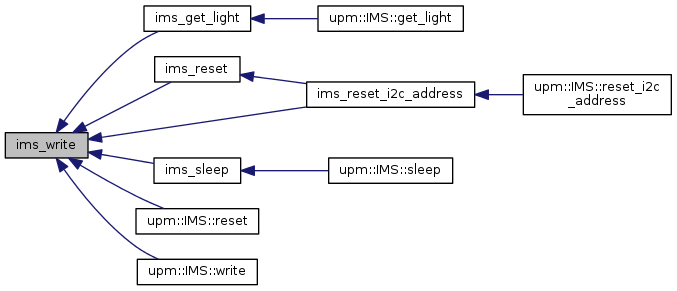

Here is the caller graph for this function:

upm_result_t ims_get_version	(	const ims_context *	dev,
		uint16_t *	rd_data
	)

Get sensor version

Parameters

dev	Sensor context pointer
rd_data	Sensor version

Returns: Function result code

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t ims_get_moisture	(	const ims_context *	dev,
		uint16_t *	rd_data
	)

Get moisture reading from sensor

Parameters

dev	Sensor context pointer
rd_data	Unitless, relative capacitance value (used to determine moisture)

Returns: Function result code

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t ims_get_light	(	const ims_context *	dev,
		uint16_t *	rd_data
	)

Get light reading from LED on device. The technical data for the I2C moisture sensor specifies a 3 second wait. Loop for 3 seconds checking the GET_BUSY register. IF the sensor is NOT ready after 3 seconds, assume there is NO light and return a max uint16_t (dark) value.

Parameters
