API for the Olimex LoL array. More...

Detailed Description

ID: lol

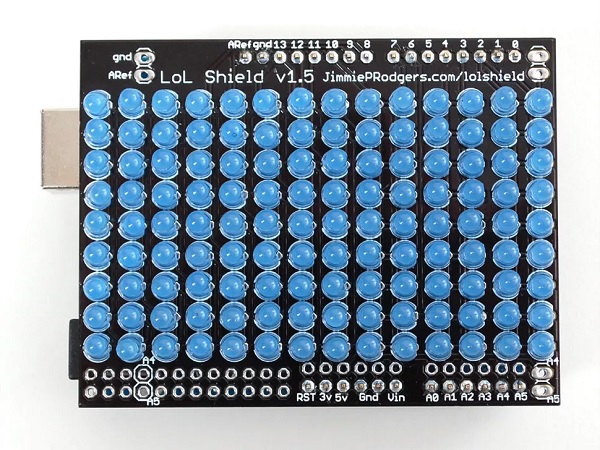

Name: Lots of LEDs (LoL) Array Rev A
Category: display
Manufacturer: adafruit
Connection: gpio

This module defines the LoL API and implementation for a simple framebuffer.

int
main(int argc, char **argv)
{
    sensor = new upm::LoL();
    signal(SIGINT, sig_handler);
    //buffer = sensor->getFramebuffer();
    int x = 0, y = 0;
    while (!is_running) {
        sensor->setPixel(x, y, !(sensor->getPixel(x, y)));
        if (++x == 13) { x = 0; y++; }
        if (y == 9) y = 0;
        usleep(10000);
    }
    std::cout << "exiting application" << std::endl;
    delete sensor;
    return 0;
}

Public Member Functions
	LoL ()

	~LoL ()

unsigned char *	getFramebuffer ()

bool	getPixel (int x, int y)

void	setPixel (int x, int y, bool pixel)

Constructor & Destructor Documentation

LoL ( )

Instantiates an LoL object singleton

~LoL ( )

LoL object destructor

Member Function Documentation

unsigned char * getFramebuffer ( )

Gets a framebuffer pointer

Returns: 0 if successful

bool getPixel	(	int	x,
		int	y
	)

Gets a pixel at specified coordinates

Parameters

x	Coordinate x
y	Coordinate y

Returns: true if the pixel is on, false if off

Exceptions

std::invalid_argument if pixel is out of bounds

void setPixel	(	int	x,
		int	y,
		bool	pixel
	)

Sets a pixel at specified coordinates
