API for the MPL3115A2 Atmospheric Pressure Sensor. More...

Detailed Description

ID: mpl3115a2
Name: I2C Precision Altimeter
Category: pressure
Manufacturer: freescale
Link: http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPL3115A2
Connection: i2c

Freescale Semiconductor* MPL3115A2 is a high-precision, ultra-low power consumption pressure sensor. Its operating range is 50-110 kPa.

    float pressure    = 0.0;
    float temperature = 0.0;
    float altitude    = 0.0;
    float sealevel    = 0.0;
    sensor = new upm::MPL3115A2(0, MPL3115A2_I2C_ADDRESS);
    sensor->testSensor();
    while (!doWork) {
        temperature = sensor->getTemperature(true);
        pressure    = sensor->getPressure(false);
        altitude    = sensor->getAltitude();
        sealevel    = sensor->getSealevelPressure();
        std::cout << "pressure value = " <<
                    pressure <<
                    ", altitude value = " <<
                    altitude <<
                    ", sealevel value = " <<
                    sealevel <<
                    ", temperature = " <<
                    temperature << std::endl;
        usleep (500000);
    }

Public Member Functions
	MPL3115A2 (int bus, int devAddr=MPL3115A2_I2C_ADDRESS, uint8_t mode=6)

int	testSensor (void)

int	resetSensor (void)

void	dumpSensor (void)

int	sampleData (void)

int32_t	getPressureReg (int reg)

int32_t	getTempReg (int reg)

float	getPressure (int bSampleData=true)

float	getTemperature (int bSampleData=true)

float	getSealevelPressure (float altitudeMeters=0.0)

float	getAltitude (float sealevelPressure=101325.0)

void	setOversampling (uint8_t oversampling)

uint8_t	getOversampling (void)

float	getTemperatureMax (void)

float	getTemperatureMin (void)

float	getPressureMax (void)

float	getPressureMin (void)

float	convertTempCtoF (float fTemp)

float	convertPaToinHg (float fPressure)

mraa::Result	i2cWriteReg (uint8_t reg, uint8_t value)

uint16_t	i2cReadReg_16 (int reg)

uint8_t	i2cReadReg_8 (int reg)

Constructor & Destructor Documentation

MPL3115A2	(	int	bus,
		int	devAddr = `MPL3115A2_I2C_ADDRESS`,
		uint8_t	mode = `6`
	)

Instantiates an MPL3115A2 object

Parameters

bus	Number of the used bus
devAddr	Address of the used I2C device
mode	MPL3115A2 oversampling (6 = 64x)

Here is the call graph for this function:

Member Function Documentation

int testSensor ( void )

MPL3115A2 object destructor; basically, it closes the I2C connection. ~MPL3115A2(); no need for this here, as the I2c connection will be closed when the m_i2ControlCtx variable will go out of scope Tests the sensor and tries to determine if the sensor is operating by looking for small variations in the value

Here is the call graph for this function:

int resetSensor ( void )

Performs a soft reset of the MPL3115A2 device to ensure it is in a known state. This function can be used to reset the min/max temperature and pressure values.

Here is the call graph for this function:

void dumpSensor ( void )

Dumps out the I2C register block to stdout

Here is the call graph for this function:

int sampleData ( void )

Initiates a temperature/pressure mesasurement and waits for the function to complete. Temperature and pressure registers can be read after this call.

Here is the call graph for this function:

Here is the caller graph for this function:

int32_t getPressureReg ( int reg )

Reads the pressure value from MPL3115A2 [Pa * 100]

Parameters

reg	Base address of the pressure register

Here is the call graph for this function:

Here is the caller graph for this function:

int32_t getTempReg ( int reg )

Reads the temperature value from MPL3115A2 [degC * 1000]

Parameters

reg	Base address of the temperature register

Here is the call graph for this function:

Here is the caller graph for this function:

float getPressure ( int bSampleData = true )

Reads the current pressure value from MPL3115A2 [Pa]

Parameters

bSampleData Sets non-zero to a sample reading

Here is the call graph for this function:

Here is the caller graph for this function:

float getTemperature ( int bSampleData = true )

Reads the current temperature value from MPL3115A2 [degC]

Parameters

bSampleData Sets non-zero to a sample reading

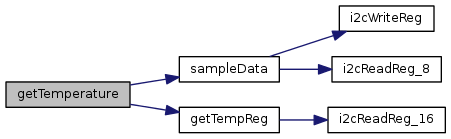

Here is the call graph for this function:

Here is the caller graph for this function:

float getSealevelPressure ( float altitudeMeters = 0.0 )

Reads the current pressure and, using a known altitude, calculates the sea level pressure value [Pa] This function should be preceded by the sampleData() call

Parameters

altitudeMeters Altitude in meters

float getAltitude ( float sealevelPressure = 101325.0 )

Reads the current pressure and, using a known sea level pressure, calculates the altitude value [m] This function should be preceded by the sampleData() call

Parameters

sealevelPressure Current sea level pressure

void setOversampling ( uint8_t oversampling )

Defines the oversampling setting (ranges from 0 to 7). The value represents 2^n samples (ranging from 1 to 128). The time to calculate a sample is approximately (2^n * 4 + 2) ms

Parameters

oversampling New oversampling value

Here is the caller graph for this function:
