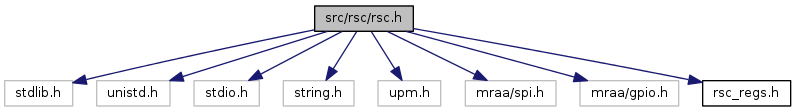

Include dependency graph for rsc.h:

API Description

/*
 * Author: Abhishek Malik <abhishek.malik@intel.com>
 * Copyright (c) 2017 Intel Corporation.
 *
 * Permission is hereby granted, free of charge, to any person obtaining
 * a copy of this software and associated documentation files (the
 * "Software"), to deal in the Software without restriction, including
 * without limitation the rights to use, copy, modify, merge, publish,
 * distribute, sublicense, and/or sell copies of the Software, and to
 * permit persons to whom the Software is furnished to do so, subject to
 * the following conditions:
 *
 * The above copyright notice and this permission notice shall be
 * included in all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
 * EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
 * MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
 * NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE
 * LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION
 * OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION
 * WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
 */
#include <stdio.h>
#include "upm_utilities.h"
#include "rsc.h"
int main(void) {
    rsc_context dev = rsc_init(0, 9, 8);
    rsc_set_data_rate(dev, N_DR_330_SPS);
    rsc_set_mode(dev, NORMAL_MODE);
    float pressure;
    float temp;
    while(1){
        pressure = rsc_get_pressure(dev);
        printf("Retrieved pressure: %f %d\n", pressure, dev->unit);
        temp = rsc_get_temperature(dev);
        printf("Retieved temperature: %f C\n", temp);
        upm_delay_ms(500);
    }
    return 0;
}

Go to the source code of this file.

Data Structures
struct	_rsc_context

Functions
rsc_context	rsc_init (uint8_t bus, uint8_t cs_ee_pin, uint8_t cs_adc_pin)

upm_result_t	rsc_close (rsc_context dev)

upm_result_t	rsc_get_sensor_name (rsc_context dev, uint8_t *sensor_name)

upm_result_t	rsc_get_sensor_serial_number (rsc_context dev, uint8_t *rsc_number)

float	rsc_get_pressure_range (rsc_context dev)

float	rsc_get_minimum_pressure (rsc_context dev)

PRESSURE_U	rsc_get_pressure_unit (rsc_context dev)

PRESSURE_T	rsc_get_pressure_type (rsc_context dev)

upm_result_t	rsc_get_initial_adc_values (rsc_context dev, uint8_t *adc_init_values)

upm_result_t	rsc_retrieve_coefficients (rsc_context dev)

upm_result_t	rsc_setup_adc (rsc_context dev, uint8_t *adc_init_values)

float	rsc_get_temperature (rsc_context dev)

float	rsc_get_pressure (rsc_context dev)

upm_result_t	rsc_set_mode (rsc_context dev, RSC_MODE mode)

upm_result_t	rsc_set_data_rate (rsc_context dev, RSC_DATA_RATE dr)

Typedefs
typedef struct _rsc_context *	rsc_context

Function Documentation

rsc_context rsc_init	(	uint8_t	bus,
		uint8_t	cs_ee_pin,
		uint8_t	cs_adc_pin
	)

RSC initialization.

This device supports SPI. The sensor has two chip select pins since there are two ways to access content on the sensor - EEPROM/ADC. We will not be using the SPI CS here because that would work for all SPI operations. Hence, you are expected to initialize any 2 gpio pins for CS by providing the pin numbers.

Parameters

bus	SPI bus to use.
cs_ee_pin	The CS pin for accessing the EEPROM
cs_adc_pin	The CS pin for accessing the ADC

Returns: The device context, or NULL if an error occurred.

Here is the call graph for this function:

upm_result_t rsc_close ( rsc_context dev )

RSC Close function

Parameters

dev	The device context

Here is the caller graph for this function:

upm_result_t rsc_get_sensor_name	(	rsc_context	dev,
		uint8_t *	sensor_name
	)

This function fills up a character array provided to it with the sensor name that it reads from the EEPROM. NOTE: The length of the array will always have to be RSC_SENSOR_NAME_LEN

Parameters

dev	The device context
sensor_name	Pointer to a uint8_t array with length RSC_SENSOR_NAME_LEN. This array will be filled up with the sensor name read from the EEPROM.

Returns: UPM result.

Here is the caller graph for this function:

upm_result_t rsc_get_sensor_serial_number	(	rsc_context	dev,
		uint8_t *	rsc_number
	)

This function fills up a character array provided to it with the sensor serial number that it reads from the EEPROM. NOTE: The length of the array will always have to be RSC_SENSOR_NUMBER_LEN

Parameters

dev	The device context
sensor_name	Pointer to a uint8_t array with length RSC_SENSOR_NUMBER_LEN. This array will be filled up with the serial number

Returns: UPM result.

Here is the caller graph for this function:

float rsc_get_pressure_range ( rsc_context dev )

This function reads the EEPROM to retrieve the pressure range for the particular RSC device.

Parameters

dev	The device context

Returns: Sensor pressure range in float

Here is the caller graph for this function:

float rsc_get_minimum_pressure ( rsc_context dev )

This function reads the EEPROM to retrieve the minimum pressure that the sensor can read.

Parameters

dev	The device context

Returns: Minimum pressure sensor can read in float

Here is the caller graph for this function:

PRESSURE_U rsc_get_pressure_unit ( rsc_context dev )

This function reads the EEPROM to retrieve the pressure units that the pressure is read in

Parameters

dev	The device context

Returns: enum PRESSURE_U

Here is the caller graph for this function:

PRESSURE_T rsc_get_pressure_type ( rsc_context dev )

This function reads the EEPROM to retrieve the sensor pressure type

Parameters

dev	The device context

Returns: enum PRESSURE_T

Here is the caller graph for this function:

upm_result_t rsc_get_initial_adc_values	(	rsc_context	dev,
		uint8_t *	adc_init_values
	)

This function reads the EEPROM to extract the values with which the ADC has to be initialized. NOTE: The length of the array will always be 4

Parameters

dev	The device context
adc_init_values	uint8_t pointer to an array containing the initial values for the ADC

Returns: UPM result.

Here is the caller graph for this function:

upm_result_t rsc_retrieve_coefficients ( rsc_context dev )

This function is used to retrieve the coefficients from the EEPROM. Once retrieved, the function updates a 2 dimensional array in the sensor context with the latest values. This function doesn't return the coefficient values.

Parameters

dev	The device context

Returns: UPM result.

Here is the caller graph for this function:

upm_result_t rsc_setup_adc	(	rsc_context	dev,
		uint8_t *	adc_init_values
	)

This function sets up the initial values in the ADC and also sets is to a default data rate - normal with 20 samples per second

Parameters

dev	The device context

Returns: UPM result.

Here is the caller graph for this function:

float rsc_get_temperature ( rsc_context dev )

Function to get the compensated temperature as read by the sensor.

Parameters

dev	The device context

Returns: float temperature in degree Celsius

Here is the caller graph for this function:

float rsc_get_pressure ( rsc_context dev )

Function to get the compensated pressure as read by the sensor.

Parameters

dev	The device context

Returns: float pressure (units inH2O)

Here is the caller graph for this function:

upm_result_t rsc_set_mode	(	rsc_context	dev,
		RSC_MODE	mode
	)

Function to set the mode of the sensor.

Parameters

dev	The device context
mode	mode of the sensor

Returns: UPM result.

Here is the caller graph for this function:

upm_result_t rsc_set_data_rate	(	rsc_context	dev,
		RSC_DATA_RATE	dr
	)

Function to set the data rate of the sensor.

Parameters

dev	The device context
dr	data rate of the sensor

Returns: UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

Typedef Documentation

typedef struct _rsc_context * rsc_context

Device context
