ILI9341 Class Reference

API for the ILI9342 LCD. More...

Detailed Description

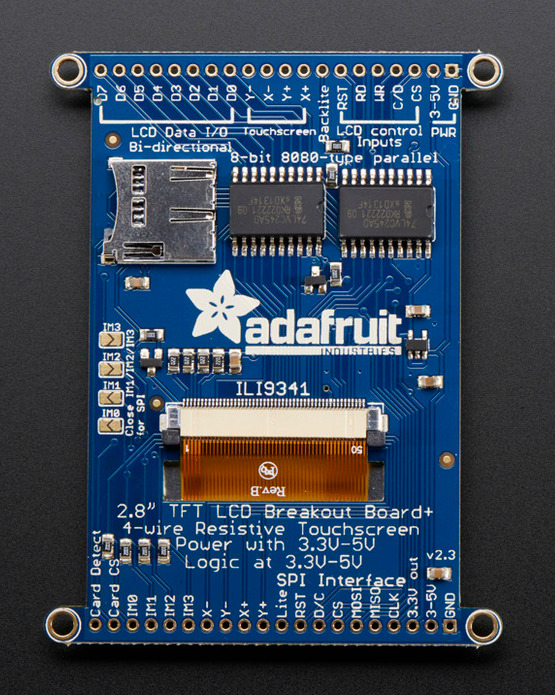

• ID: ili9341
• Name: SPI Based LCD
• Category: display
• Manufacturer: adafruit
• Link: http://www.adafruit.com/product/2090
• Connection: spi

This module defines the interface for the ILI9341 display library

    // Pins (Edison)
    // CS_LCD   GP44 (MRAA 31)
    // CS_SD    GP43 (MRAA 38) unused
    // DC       GP12 (MRAA 20)
    // RESEST   GP13 (MRAA 14)
    upm::ILI9341 lcd(31, 38, 20, 14);

    // Fill the screen with a solid color
    lcd.fillScreen(lcd.color565(0, 40, 16));

    // Draw some shapes
    lcd.drawFastVLine(10, 10, 100, ILI9341_RED);
    lcd.drawFastHLine(20, 10, 50, ILI9341_CYAN);
    lcd.drawLine(160, 30, 200, 60, ILI9341_GREEN);
    lcd.fillRect(20, 30, 75, 60, ILI9341_ORANGE);
    lcd.drawCircle(70, 50, 20, ILI9341_PURPLE);
    lcd.fillCircle(120, 50, 20, ILI9341_PURPLE);
    lcd.drawTriangle(50, 100, 10, 140, 90, 140, ILI9341_YELLOW);
    lcd.fillTriangle(150, 100, 110, 140, 190, 140, ILI9341_YELLOW);
    lcd.drawRoundRect(20, 150, 50, 30, 10, ILI9341_RED);
    lcd.drawRoundRect(130, 150, 50, 30, 10, ILI9341_RED);
    lcd.fillRoundRect(75, 150, 50, 30, 10, ILI9341_RED);

    // Write some text
    lcd.setCursor(0, 200);
    lcd.setTextColor(ILI9341_LIGHTGREY);
    lcd.setTextWrap(true);
    lcd.setTextSize(1);
    lcd.print("Text 1\n");
    lcd.setTextSize(2);
    lcd.print("Text 2\n");
    lcd.setTextSize(3);
    lcd.print("Text 3\n");
    lcd.setTextSize(4);
    lcd.print("Text 4\n");

    // Test screen rotation
    for (int r = 0; r < 4; r++) {
        lcd.setRotation(r);
        lcd.fillRect(0, 0, 5, 5, ILI9341_WHITE);
        upm_delay(1);
    }

    // Invert colors, wait, then revert back
    lcd.invertDisplay(true);
    upm_delay(2);
    lcd.invertDisplay(false);

    // Don't forget to free up that memory!

Public Member Functions
	ILI9341 (int csLCD, int csSD, int dc, int rst)
std::string	name ()
void	initModule ()
void	configModule ()
void	setAddrWindow (uint16_t x0, uint16_t y0, uint16_t x1, uint16_t y1)
void	drawPixel (int16_t x, int16_t y, uint16_t color)
void	drawFastVLine (int16_t x, int16_t y, int16_t h, uint16_t color)
void	drawFastHLine (int16_t x, int16_t y, int16_t w, uint16_t color)
void	fillRect (int16_t x, int16_t y, int16_t w, int16_t h, uint16_t color)
void	fillScreen (uint16_t color)
void	setRotation (uint8_t r)
void	invertDisplay (bool i)
uint16_t	color565 (uint8_t r, uint8_t g, uint8_t b)
void	executeCMDList (const uint8_t *addr)
void	writecommand (uint8_t c)
void	writedata (uint8_t d)
mraa::Result	lcdCSOn ()
mraa::Result	lcdCSOff ()
mraa::Result	sdCSOn ()
mraa::Result	sdCSOff ()
mraa::Result	dcHigh ()
mraa::Result	dcLow ()
mraa::Result	rstHigh ()
mraa::Result	rstLow ()
Public Member Functions inherited from GFX
	GFX (int16_t w, int16_t h)
virtual	~GFX ()
virtual void	drawLine (int16_t x0, int16_t y0, int16_t x1, int16_t y1, uint16_t color)
virtual void	drawRect (int16_t x, int16_t y, int16_t w, int16_t h, uint16_t color)
void	drawCircle (int16_t x0, int16_t y0, int16_t r, uint16_t color)
void	drawCircleHelper (int16_t x0, int16_t y0, int16_t r, uint8_t cornername, uint16_t color)
void	fillCircle (int16_t x0, int16_t y0, int16_t r, uint16_t color)
void	fillCircleHelper (int16_t x0, int16_t y0, int16_t r, uint8_t cornername, int16_t delta, uint16_t color)
void	drawTriangle (int16_t x0, int16_t y0, int16_t x1, int16_t y1, int16_t x2, int16_t y2, uint16_t color)
void	fillTriangle (int16_t x0, int16_t y0, int16_t x1, int16_t y1, int16_t x2, int16_t y2, uint16_t color)
void	drawRoundRect (int16_t x0, int16_t y0, int16_t w, int16_t h, int16_t radius, uint16_t color)
void	fillRoundRect (int16_t x0, int16_t y0, int16_t w, int16_t h, int16_t radius, uint16_t color)
void	drawChar (int16_t x, int16_t y, unsigned char c, uint16_t color, uint16_t bg, uint8_t size)
int16_t	getCursorX (void) const
int16_t	getCursorY (void) const
void	setCursor (int16_t x, int16_t y)
void	setTextColor (uint16_t c)
void	setTextColor (uint16_t c, uint16_t bg)
void	setTextSize (uint8_t s)
void	setTextWrap (bool w)
uint8_t	getRotation (void) const
void	setRotation (uint8_t r)
void	cp437 (bool x)
virtual void	write (uint8_t c)
void	print (std::string msg)
int16_t	width (void) const
int16_t	height (void) const
	GFX (int width, int height)
virtual	~GFX ()
virtual void	refresh ()=0
void	drawChar (int16_t x, int16_t y, uint8_t data, uint16_t color, uint16_t bg, uint8_t size)
void	print (std::string msg)
void	fillScreen (uint16_t color)
void	fillRect (int16_t x, int16_t y, int16_t w, int16_t h, uint16_t color)
void	drawFastVLine (int16_t x, int16_t y, int16_t h, uint16_t color)
void	drawLine (int16_t x0, int16_t y0, int16_t x1, int16_t y1, uint16_t color)
void	drawTriangle (int16_t x0, int16_t y0, int16_t x1, int16_t y1, int16_t x2, int16_t y2, uint16_t color)
void	drawCircle (int16_t x, int16_t y, int16_t r, uint16_t color)
void	setCursor (int16_t x, int16_t y)
void	setTextColor (uint16_t textColor, uint16_t textBGColor)
void	setTextSize (uint8_t size)
void	setTextWrap (uint8_t wrap)
	GFX (int width, int height, uint8_t *screenBuffer, const unsigned char *font)
virtual	~GFX ()
virtual void	setAddrWindow (uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1)=0
virtual void	refresh ()=0
void	drawChar (int16_t x, int16_t y, uint8_t data, uint16_t color, uint16_t bg, uint8_t size)
void	print (std::string msg)
mraa::Result	setPixel (int x, int y, uint16_t color)
void	fillScreen (uint16_t color)
void	fillRect (int16_t x, int16_t y, int16_t w, int16_t h, uint16_t color)
void	drawFastVLine (int16_t x, int16_t y, int16_t h, uint16_t color)
void	drawLine (int16_t x0, int16_t y0, int16_t x1, int16_t y1, uint16_t color)
void	drawTriangle (int16_t x0, int16_t y0, int16_t x1, int16_t y1, int16_t x2, int16_t y2, uint16_t color)
void	drawCircle (int16_t x, int16_t y, int16_t r, uint16_t color)
void	setCursor (int16_t x, int16_t y)
void	setTextColor (uint16_t textColor, uint16_t textBGColor)
void	setTextSize (uint8_t size)
void	setTextWrap (uint8_t wrap)

Additional Inherited Members
Data Fields inherited from GFX
uint8_t *	m_map
Protected Attributes inherited from GFX
const int16_t	WIDTH
const int16_t	HEIGHT
int16_t	_width
int16_t	_height
uint8_t	rotation
uint16_t	textcolor
uint16_t	textbgcolor
int16_t	cursor_x
int16_t	cursor_y
uint8_t	textsize
bool	wrap
bool	_cp437
int	m_width
int	m_height
int	m_textSize
int	m_textColor
int	m_textBGColor
int	m_cursorX
int	m_cursorY
int	m_wrap
const unsigned char *	m_font
Static Protected Attributes inherited from GFX
static const unsigned char	font []

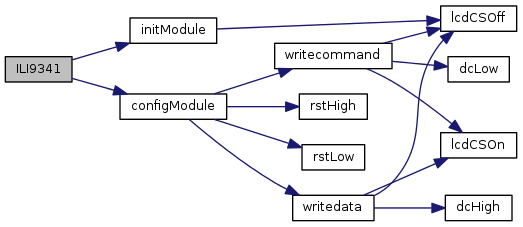

Constructor & Destructor Documentation

ILI9341	(	int	csLCD,
		int	csSD,
		int	dc,
		int	rst
	)

Instantiates an ILI9341 object

Parameters

csLCD	LCD chip select pin
csSD	SD card select pin
dc	Data/command pin
rst	Reset pin

Here is the call graph for this function:

Member Function Documentation

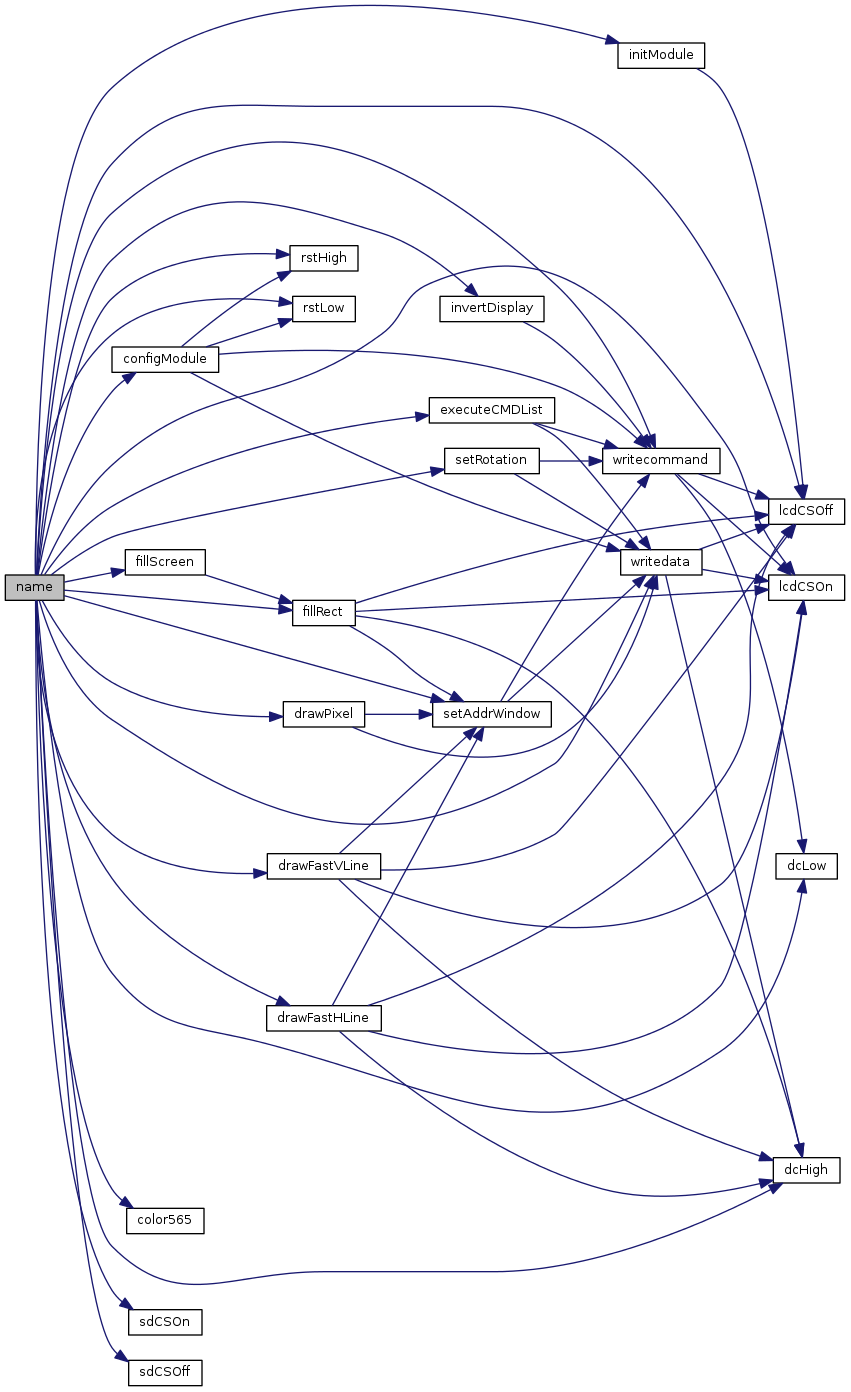

std::string name ( )

inline

Returns the name of the component

Here is the call graph for this function:

void initModule

(

)

Initializes GPIOs used to talk to the LCD

Here is the call graph for this function:

Here is the caller graph for this function:

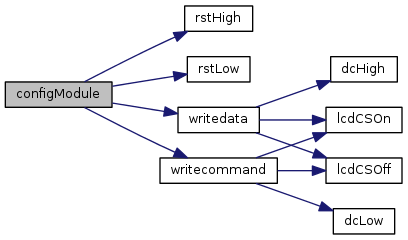

void configModule

(

)

Configures the LCD driver chip via SPI

Here is the call graph for this function:

Here is the caller graph for this function:

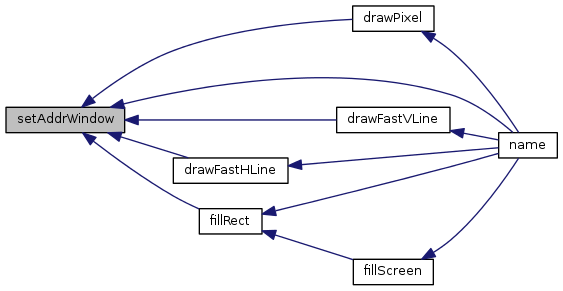

void setAddrWindow	(	uint16_t	x0,
		uint16_t	y0,
		uint16_t	x1,
		uint16_t	y1
	)

Sets the window size inside the screen where pixel data is written. Concrete implementation from GFX interface.

Parameters

x0	First coordinate
y0	First coordinate
x1	Second coordinate
y1	Second coordinate

Here is the call graph for this function:

Here is the caller graph for this function:

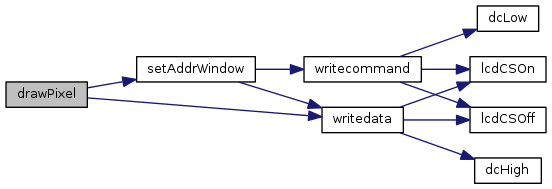

void drawPixel ( int16_t  x, int16_t  y, uint16_t  color  )

virtual

Sends a pixel color (RGB) to the driver chip. Concrete implementation from GFX interface.

Parameters

x	Axis on the horizontal scale
y	Axis on the vertical scale
color	RGB (16-bit) color (R[0-4], G[5-10], B[11-15]

Implements GFX.

Here is the call graph for this function:

Here is the caller graph for this function:

void drawFastVLine ( int16_t  x, int16_t  y, int16_t  h, uint16_t  color  )

virtual

Draws a vertical line using minimal SPI writes.

Parameters

x	Axis on the horizontal scale to begin line
y	Axis on the vertical scale to begin line
h	Height of line in pixels
color	RGB (16-bit) color (R[0-4], G[5-10], B[11-15]

Reimplemented from GFX.

Here is the call graph for this function:

Here is the caller graph for this function:

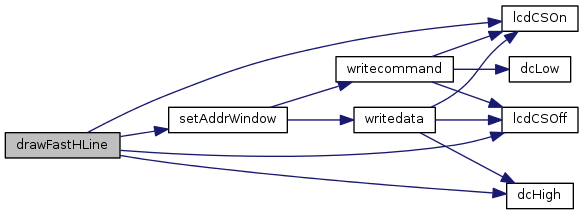

void drawFastHLine ( int16_t  x, int16_t  y, int16_t  w, uint16_t  color  )

virtual

Draws a horizontal line using minimal SPI writes.

Parameters

x	Axis on the horizontal scale to begin line
y	Axis on the vertical scale to begin line
w	Width of line in pixels
color	RGB (16-bit) color (R[0-4], G[5-10], B[11-15]

Reimplemented from GFX.

Here is the call graph for this function:

Here is the caller graph for this function:

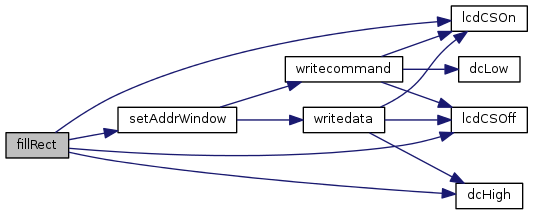

void fillRect ( int16_t  x, int16_t  y, int16_t  w, int16_t  h, uint16_t  color  )

virtual

Draw a filled rectangle.

Parameters

x	Axis on the horizontal scale of upper-left corner
y	Axis on the vertical scale of upper-left corner
w	Width of rectangle in pixels
h	Height of rectangle in pixels
color	RGB (16-bit) color (R[0-4], G[5-10], B[11-15]

Reimplemented from GFX.

Here is the call graph for this function:

Here is the caller graph for this function:

void fillScreen ( uint16_t  color )

virtual

Fill the screen with a single color.

Parameters

color

RGB (16-bit) color (R[0-4], G[5-10], B[11-15]

Reimplemented from GFX.

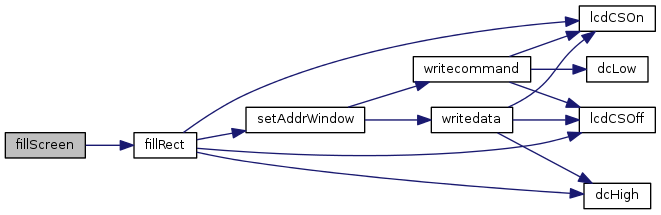

Here is the call graph for this function:

Here is the caller graph for this function:

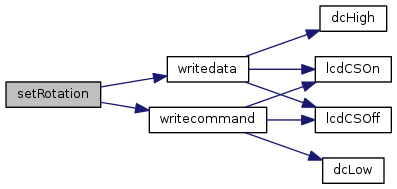

void setRotation

(

uint8_t

r

)

Sets the screen to one of four 90 deg rotations.

Parameters

r	Rotation setting: 0, 1, 2, 3

Here is the call graph for this function:

Here is the caller graph for this function:

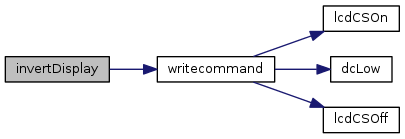

void invertDisplay ( bool  i )

virtual

Invert colors on the display.

Parameters

i	True or false to invert colors

Reimplemented from GFX.

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t color565	(	uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Pass 8-bit R, G, B values and get back 16-bit packed color.

Parameters

r	Red color 0-31
g	Green color 0-63
b	blue color 0-31

Returns

16-bit packed color (RGB) value

Here is the caller graph for this function:

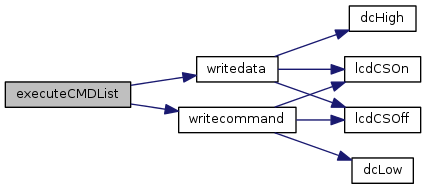

void executeCMDList

(

const uint8_t *

addr

)

Executes a set of commands and data.

Parameters

addr	Pointer to the start of the commands/data section

Here is the call graph for this function:

Here is the caller graph for this function:

void writecommand

(

uint8_t

c

)

Sends a command to the display driver via SPI.

Parameters

c	Command to be written

Here is the call graph for this function:

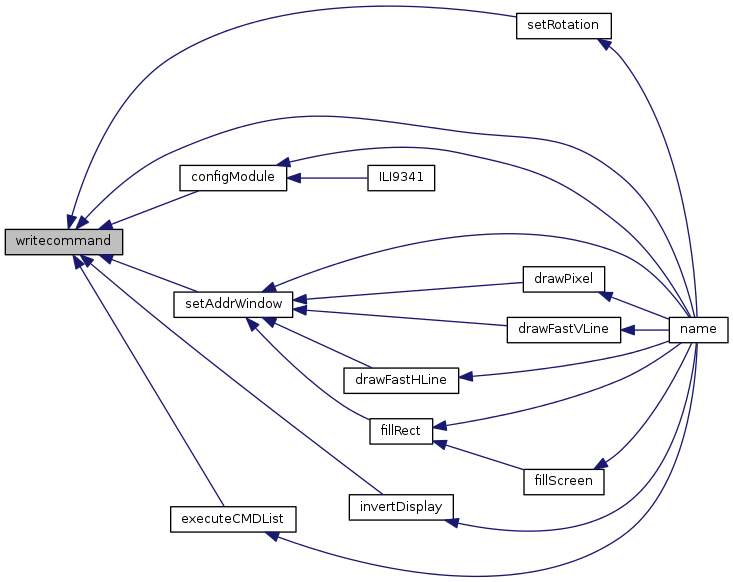

Here is the caller graph for this function:

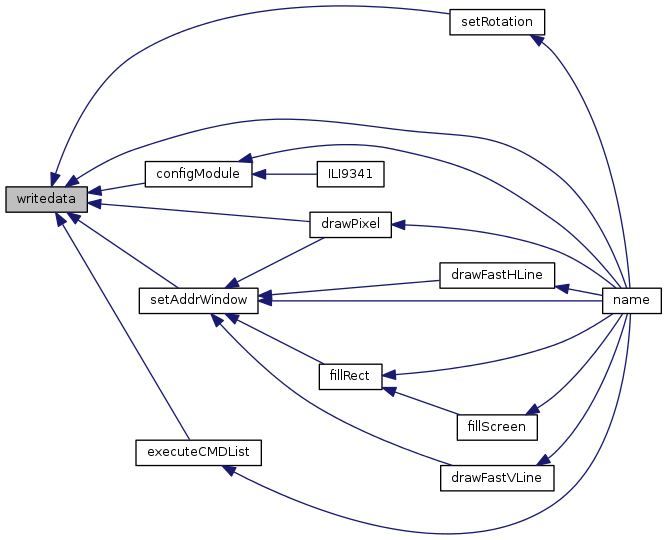

void writedata

(

uint8_t

d

)

Sends data to the display driver via SPI

Parameters

d	Data to be written

Here is the call graph for this function:

Here is the caller graph for this function:

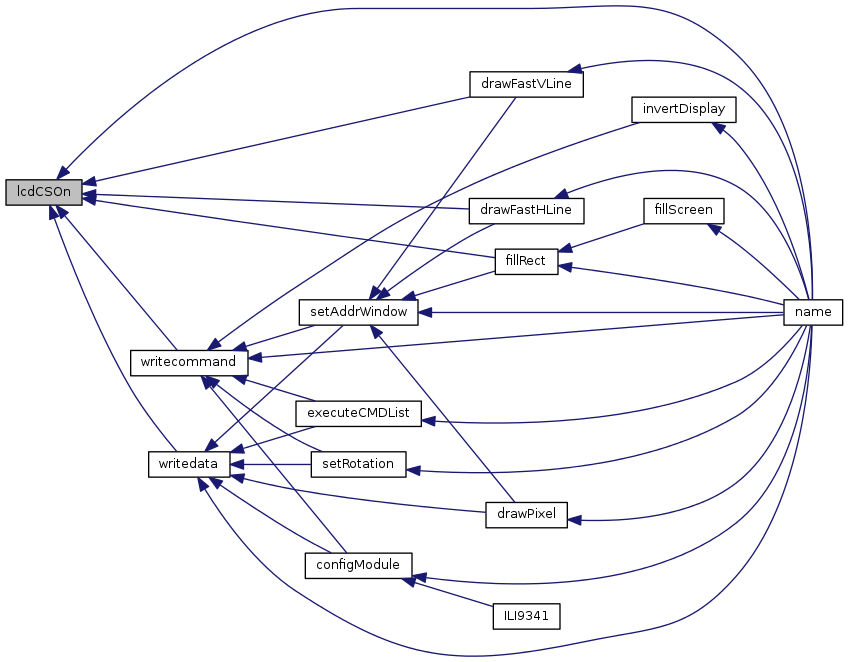

mraa::Result lcdCSOn

(

)

Set LCD chip select to LOW

Here is the caller graph for this function:

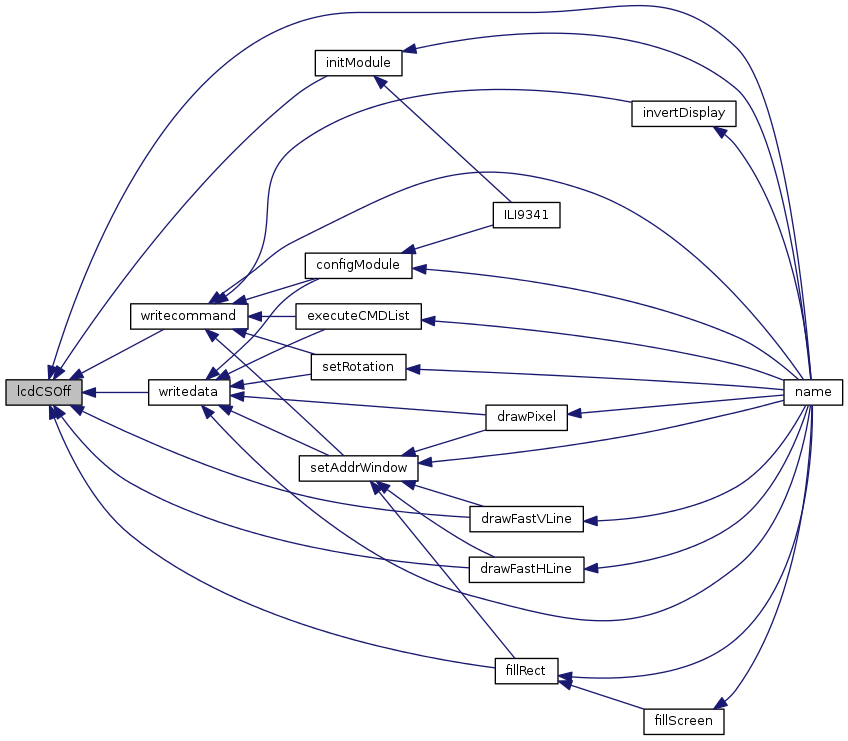

mraa::Result lcdCSOff

(

)

Set LCD chip select to HIGH

Here is the caller graph for this function:

mraa::Result sdCSOn

(

)

Set SD card chip select to LOW

Here is the caller graph for this function:

mraa::Result sdCSOff

(

)

Set SD card chip select to HIGH

Here is the caller graph for this function:

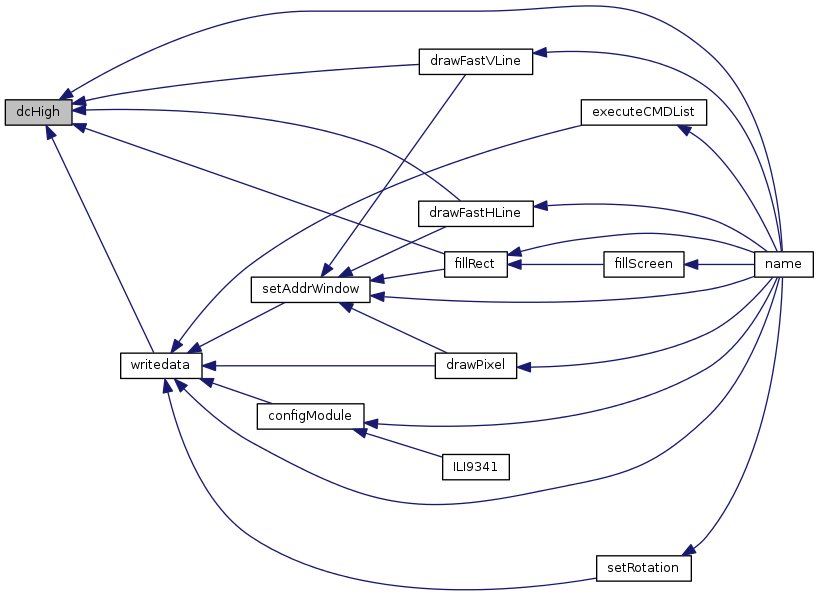

mraa::Result dcHigh

(

)

Set data/command line to HIGH

Here is the caller graph for this function:

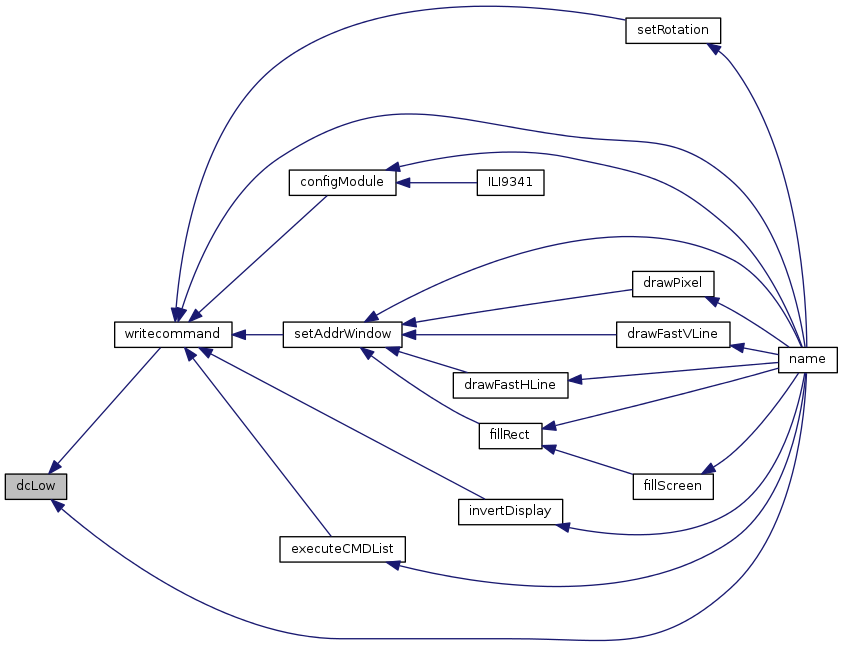

mraa::Result dcLow

(

)

Set data/command line to LOW

Here is the caller graph for this function:

mraa::Result rstHigh

(

)

Set reset line to HIGH

Here is the caller graph for this function:

mraa::Result rstLow

(

)

Set reset line to LOW

Here is the caller graph for this function:

Inheritance diagram for ILI9341:

Collaboration diagram for ILI9341:

---

The documentation for this class was generated from the following files:

• src/ili9341/ili9341.hpp
• src/ili9341/ili9341.cxx
