LPD8806 Class Reference

API for the LPD8806 RGB LED Strip Controller. More...

Detailed Description

• ID: lpd8806
• Name: Digital RGB LED Strip Controller
• Category: led
• Manufacturer: adafruit
• Connection: spi
• Link: https://www.adafruit.com/product/306

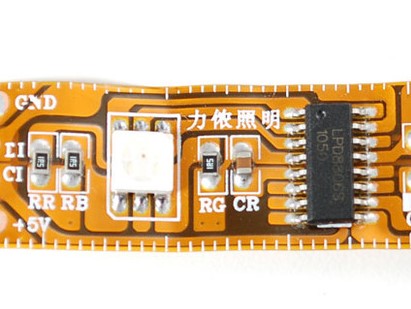

FastPixel* LPD8806 is an RGB LED strip controller.

    upm::LPD8806 sensor(0, 7, 10);
    upm_delay_us(1000000);

    sensor.show();

    while (!doWork) {
        // Back-and-forth lights
        scanner(sensor, 127, 0, 0, 30); // red, slow
        scanner(sensor, 0, 0, 127, 15); // blue, fast
        upm_delay_us(1000000);
    }

Public Member Functions
	LPD8806 (int bus, int csn, uint16_t pixelCount)
	~LPD8806 ()
void	setPixelColor (uint16_t pixelOffset, uint8_t r, uint8_t g, uint8_t b)
void	show (void)
uint16_t	getStripLength (void)
std::string	name ()

Constructor & Destructor Documentation

LPD8806	(	int	bus,
		int	csn,
		uint16_t	pixelCount
	)

Instantiates an LPD8806 object

Parameters

bus	SPI bus to use
csn	Chip select pin
pixelCount	Number of pixels in the strip

Here is the caller graph for this function:

~LPD8806

(

)

LPD8806 object destructor; basically, it frees the allocated pixel buffer.

Member Function Documentation

void setPixelColor	(	uint16_t	pixelOffset,
		uint8_t	r,
		uint8_t	g,
		uint8_t	b
	)

Parameters

pixelOffset	Pixel offset in the strip of the pixel
r	Red LED
g	Green LED
b	Blue LED

void show

(

void

)

Writes the data stored in the array of pixels to the chip

uint16_t getStripLength

(

void

)

Returns the length of the LED strip

std::string name ( )

inline

Returns the name of the component

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/lpd8806/lpd8806.hpp
• src/lpd8806/lpd8806.cxx
