SI7005 Class Reference

Detailed Description

• ID: si7005
• Name: Digital I2C Humidity and Temperature Sensor
• Other Names: Si7005
• Category: temp
• Manufacturer: silabs
• Link: http://www.silabs.com/products/sensors/humidity-sensors/Pages/Si7005.aspx
• Connection: i2c

Public Member Functions
	SI7005 (int bus, int pin)
	~SI7005 ()
uint16_t	getTemperatureRaw ()
int	getTemperatureCelsius ()
uint16_t	getHumidityRaw ()
int	getHumidityRelative ()
virtual const char *	getModuleName ()
bool	isAvailable ()
void	enableHeater ()
void	disableHeater ()
void	enableFastConversionMode ()
void	disableFastConversionMode ()

Constructor & Destructor Documentation

SI7005	(	int	bus,
		int	pin
	)

Instantiates a SI7005 object

Parameters

bus	number of used bus
pin	gpio number for chip select pin

Here is the call graph for this function:

Here is the caller graph for this function:

~SI7005

(

)

SI7005 object destructor.

Member Function Documentation

uint16_t getTemperatureRaw

(

)

Get temperature measurement.

Here is the caller graph for this function:

int getTemperatureCelsius ( )

virtual

Get temperature measurement.

Implements ITemperatureSensor.

Here is the call graph for this function:

uint16_t getHumidityRaw

(

)

Get relative humidity measurement.

Here is the caller graph for this function:

int getHumidityRelative ( )

virtual

Get relative humidity measurement.

Implements IHumiditySensor.

Here is the call graph for this function:

virtual const char* getModuleName ( )

inlinevirtual

Returns sensor module name

Implements IModuleStatus.

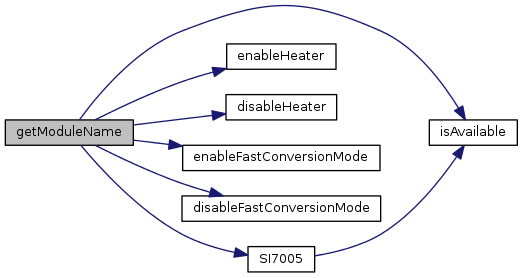

Here is the call graph for this function:

bool isAvailable

(

)

Detects the sensor to ensure it is connected as required.

Here is the caller graph for this function:

void enableHeater

(

)

Enables the integrated heating element.

Here is the caller graph for this function:

void disableHeater

(

)

Disables the integrated heating element.

Here is the caller graph for this function:

void enableFastConversionMode

(

)

Enables fast conversion mode.

Here is the caller graph for this function:

void disableFastConversionMode

(

)

Enables fast conversion mode.

Here is the caller graph for this function:

Inheritance diagram for SI7005:

Collaboration diagram for SI7005:

---

The documentation for this class was generated from the following files:

• src/si7005/si7005.hpp
• src/si7005/si7005.cxx
