API for SSD1306 I2C-controlled OLED displays. More...

Detailed Description

ID: ssd1306
Name: OLED Display

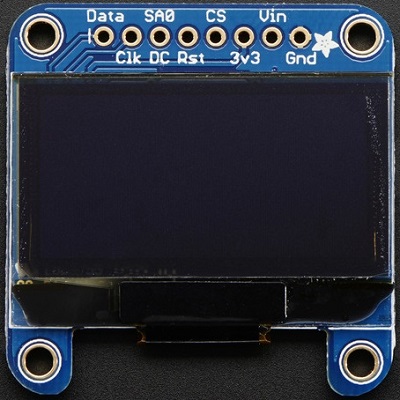

Other Names: Adafruit SSD1306 OLED Display 0.96"
Category: display
Manufacturer: adafruit
Link: https://www.adafruit.com/datasheets/SSD1306.pdf
Link: http://www.farnell.com/datasheets/609753.pdf
Connection: i2c

SSD1306 is a 128x64 dot-matrix OLED/PLED segment driver with a controller. This device is available from many suppliers for a very low cost. This implementation was tested using a generic SSD1306 device from eBay.

    upm::SSD1306 lcd(BUS_NUMBER, DEVICE_ADDRESS);
    lcd.clear();
    lcd.stopscroll();
    lcd.draw(intel_logo, 1024);
    upm_delay(3);
    lcd.clear();
    lcd.setCursor(2, 0);
    lcd.write("Hello");
    lcd.setCursor(3, 0);
    lcd.write("World");
    upm_delay(3);
    lcd.invert(true);
    upm_delay(3);
    lcd.dim(true);
    upm_delay(3);
    lcd.dim(false);
    upm_delay(3);
    lcd.invert(false);
    lcd.startscrollright(0x00, 0x0F);
    upm_delay(5);
    lcd.stopscroll();
    lcd.startscrollleft(0x00, 0x0F);
    upm_delay(5);
    lcd.stopscroll();
    lcd.startscrolldiagleft(0x00, 0x0F);
    upm_delay(5);
    lcd.stopscroll();
    lcd.startscrolldiagright(0x00, 0x0F);
    upm_delay(5);
    lcd.stopscroll();

Public Member Functions
	SSD1306 (int bus, int address=0x3C)

	~SSD1306 ()

mraa::Result	draw (uint8_t *data, int bytes)

mraa::Result	write (std::string msg)

mraa::Result	setCursor (int row, int column)

mraa::Result	clear ()

mraa::Result	home ()

mraa::Result	invert (bool i)

void	startscrollright (uint8_t start, uint8_t stop)

void	startscrollleft (uint8_t start, uint8_t stop)

void	startscrolldiagright (uint8_t start, uint8_t stop)

void	startscrolldiagleft (uint8_t start, uint8_t stop)

void	stopscroll (void)

void	dim (bool dim)

Public Member Functions inherited from LCD
mraa::Result	write (int x, int y, std::string msg)

std::string	name ()

Additional Inherited Members
Protected Attributes inherited from LCD
std::string	m_name

Constructor & Destructor Documentation

SSD1306	(	int	bus,
		int	address = `0x3C`
	)

SSD1306 constructor; calls libmraa initialisation functions

Parameters

bus	I2C bus to use
address	Slave address the LCD is registered on

Here is the call graph for this function:

~SSD1306 ( )

SSD1306 destructor

Member Function Documentation

mraa::Result draw	(	uint8_t *	data,
		int	bytes
	)

Draws an image; see examples/python/make_oled_pic.py for an explanation of how pixels are mapped to bytes

Parameters

data	Buffer to read
bytes	Number of bytes to read from the pointer

Returns: Result of the operation

mraa::Result write ( std::string msg )

virtual

Writes a string to the LCD

Parameters

msg	std::string to write to the display; note: only ASCII characters are supported

Returns: Result of the operation

Implements LCD.

mraa::Result setCursor	(	int	row,
		int	column
	)

virtual

Sets the cursor to specified coordinates

Parameters

row	Row to set the cursor to
column	Column to set the cursor to

Returns: Result of the operation

Implements LCD.

Here is the caller graph for this function:

mraa::Result clear ( )

virtual

Clears the display of all characters

Returns: Result of the operation

Implements LCD.

Here is the call graph for this function:

Here is the caller graph for this function:

mraa::Result home ( )

virtual

Returns to the original coordinates (0,0)

Returns: Result of the operation

Implements LCD.

Here is the call graph for this function:

Here is the caller graph for this function:

mraa::Result invert ( bool i )

Inverts the display

Parameters

i	true to invert, false for normal display

Returns: Result of the operation

void startscrollright	(	uint8_t	start,
		uint8_t	stop
	)

Activate a scroll to the right for rows start through stop The display is 16 rows tall. To scroll the whole display, run: display.scrollright(0x00, 0x0F)

Parameters

start	First row to scroll
stop	Last row to scroll

Returns: void

void startscrollleft	(	uint8_t	start,
		uint8_t	stop
	)

Activate a scroll to the left for rows start through stop The display is 16 rows tall. To scroll the whole display, run: display.startscrollright(0x00, 0x0F)

Parameters

start	First row to scroll
stop	Last row to scroll

Returns: void

void startscrolldiagright	(	uint8_t	start,
		uint8_t	stop
	)

Activate a scroll to the upper right for rows start through stop The display is 16 rows tall. To scroll the whole display, run: display.startscrollleft(0x00, 0x0F)

Parameters

start	First row to scroll
stop	Last row to scroll

Returns: void

void startscrolldiagleft	(	uint8_t	start,
		uint8_t	stop
	)

Activate a scroll to the upper left for rows start through stop The display is 16 rows tall. To scroll the whole display, run: display.startscrolldiaagright(0x00, 0x0F)

Parameters
