lcdks.h File Reference

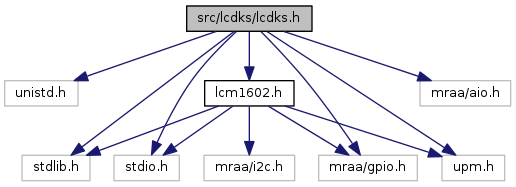

Include dependency graph for lcdks.h:

API Description

/*
 * Author: Jon Trulson <jtrulson@ics.com>
 * Copyright (c) 2017 Intel Corporation.
 *
 * The MIT License
 *
 * Permission is hereby granted, free of charge, to any person obtaining
 * a copy of this software and associated documentation files (the
 * "Software"), to deal in the Software without restriction, including
 * without limitation the rights to use, copy, modify, merge, publish,
 * distribute, sublicense, and/or sell copies of the Software, and to
 * permit persons to whom the Software is furnished to do so, subject to
 * the following conditions:
 *
 * The above copyright notice and this permission notice shall be
 * included in all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
 * EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
 * MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
 * NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE
 * LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION
 * OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION
 * WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
 */

#include <unistd.h>
#include <signal.h>
#include <stdio.h>

#include "upm_utilities.h"
#include "lcdks.h"

bool shouldRun = true;

void sig_handler(int signo)
{
    if (signo == SIGINT)
        shouldRun = false;
}


int main(int argc, char **argv)
{
    signal(SIGINT, sig_handler);


    // Instantiate a LCDKS (LCD Keypad Shield) using default pins

    // LCD connection:
    // LCD RS pin to digital pin 8
    // LCD Enable pin to digital pin 9
    // LCD D4 pin to digital pin 4
    // LCD D5 pin to digital pin 5
    // LCD D6 pin to digital pin 6
    // LCD D7 pin to digital pin 7
    // Keypad analog pin 0
    // Backlight GPIO -1 (disabled)

    // NOTE: The default pins do not include support for a gpio
    // controlled backlight.  If you need one, specify the correct pin
    // as the last argument instead of -1.
    lcdks_context lcd = lcdks_init(8, 9, 4, 5, 6, 7, 0, -1);

    if (!lcd)
    {
        printf("lcdks_init() failed.\n");
        return 1;
    }


    lcdks_set_cursor(lcd, 0, 0);
    lcdks_write(lcd, "LCDKS driver", 12);
    lcdks_set_cursor(lcd, 1, 2);
    lcdks_write(lcd, "Hello World", 11);

    // output current key value every second.
    while (shouldRun)
    {
        printf("Button value: %f\n", lcdks_get_key_value(lcd));
        upm_delay(1);
    }

    lcdks_close(lcd);

    return 0;
}

Go to the source code of this file.

Data Structures
struct	_lcdks_context

Functions
lcdks_context	lcdks_init (int rs, int enable, int d0, int d1, int d2, int d3, int keypad, int backlight)
void	lcdks_close (lcdks_context dev)
upm_result_t	lcdks_write (const lcdks_context dev, char *buffer, int len)
upm_result_t	lcdks_set_cursor (const lcdks_context dev, unsigned int row, unsigned int column)
upm_result_t	lcdks_clear (const lcdks_context dev)
upm_result_t	lcdks_home (const lcdks_context dev)
upm_result_t	lcdks_create_char (const lcdks_context dev, unsigned int slot, char *data)
upm_result_t	lcdks_display_on (const lcdks_context dev, bool on)
upm_result_t	lcdks_cursor_on (const lcdks_context dev, bool on)
upm_result_t	lcdks_cursor_blink_on (const lcdks_context dev, bool on)
upm_result_t	lcdks_backlight_on (const lcdks_context dev, bool on)
upm_result_t	lcdks_scroll_display_left (const lcdks_context dev)
upm_result_t	lcdks_scroll_display_right (const lcdks_context dev)
upm_result_t	lcdks_entry_left_to_right (const lcdks_context dev, bool on)
upm_result_t	lcdks_autoscroll_on (const lcdks_context dev, bool on)
float	lcdks_get_key_value (const lcdks_context dev)

Typedefs
typedef struct _lcdks_context *	lcdks_context

Function Documentation

lcdks_context lcdks_init	(	int	rs,
		int	enable,
		int	d0,
		int	d1,
		int	d2,
		int	d3,
		int	keypad,
		int	backlight
	)

LCDKS initialization

As this is a shield, you will not likely have any choice over the pins that are used. For this reason, we provide defaults for all of them – of course they can be changed if your device is different.

Parameters

rs	Register select pin.
enable	Enable pin.
d0	Data 0 pin.
d1	Data 1 pin.
d2	Data 2 pin.
d3	Data 3 pin.
keypad	Analog pin of the keypad.
backlight	Optional GPIO backlight pin. Specify -1 if not in use or not supported on your device.

Returns

LCDKS context, or NULL if an error occurs.

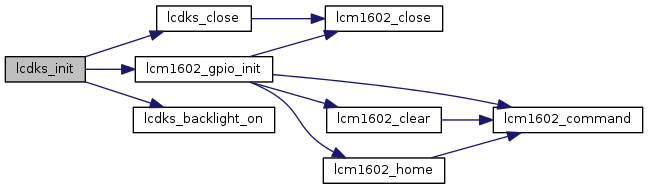

Here is the call graph for this function:

void lcdks_close

(

lcdks_context

dev

)

LCDKS close.

Parameters

dev	The device context.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_write	(	const lcdks_context	dev,
		char *	buffer,
		int	len
	)

Writes a string to the LCD.

Parameters

dev	The device context.
buffer	Character buffer containing characters to write to the display; note: only ASCII characters are supported
len	The number of characters to write.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_set_cursor	(	const lcdks_context	dev,
		unsigned int	row,
		unsigned int	column
	)

Sets the cursor to specified coordinates

Parameters

dev	The device context.
row	Row to set the cursor to.
column	Column to set the cursor to.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_clear

(

const lcdks_context

dev

)

Clears the display of all characters.

Parameters

dev	The device context.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_home

(

const lcdks_context

dev

)

Returns to the home coordinates (0,0).

Parameters

dev	The device context.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_create_char	(	const lcdks_context	dev,
		unsigned int	slot,
		char *	data
	)

Create a custom character.

Parameters

dev	The device context.
slot	The character slot to write, only 8 are available.
data	The character data (8 bytes) making up the character.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_display_on	(	const lcdks_context	dev,
		bool	on
	)

Turn the display on.

Parameters

dev	The device context.
on	true to turn display on, false otherwise.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_cursor_on	(	const lcdks_context	dev,
		bool	on
	)

Turn the cursor on.

Parameters

dev	The device context.
on	true to turn cursor on, false otherwise.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_cursor_blink_on	(	const lcdks_context	dev,
		bool	on
	)

Turn cursor blink on.

Parameters

dev	The device context.
on	true to turn cursor blink on, false otherwise.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_backlight_on	(	const lcdks_context	dev,
		bool	on
	)

Turn backlight on.

Parameters

dev	The device context.
on	true to turn backlight on, false otherwise.

Returns

UPM result.

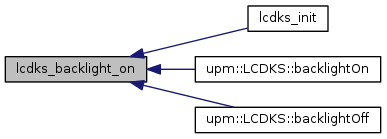

Here is the caller graph for this function:

upm_result_t lcdks_scroll_display_left

(

const lcdks_context

dev

)

Scroll the display left, without changing the character RAM.

Parameters

dev	The device context.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_scroll_display_right

(

const lcdks_context

dev

)

Scroll the display right, without changing the character RAM.

Parameters

dev	The device context.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_entry_left_to_right	(	const lcdks_context	dev,
		bool	on
	)

Set the entry mode so that characters are added left to right.

Parameters

dev	The device context.
on	true to add characters left to right, false for right to left.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

upm_result_t lcdks_autoscroll_on	(	const lcdks_context	dev,
		bool	on
	)

Right justify text entered from the cursor.

Parameters

dev	The device context.
on	true right justify text, false to left justify text.

Returns

UPM result.

Here is the call graph for this function:

Here is the caller graph for this function:

float lcdks_get_key_value

(

const lcdks_context

dev

)

Returns the floating point representation of the key that is being pushed. Each key produces a different value between 0.0 and 1.0, and only one key can be read at a time.

Parameters

dev	The device context.

Returns

the floating point value representing a key

Here is the caller graph for this function:

Typedef Documentation

typedef struct _lcdks_context * lcdks_context

Device context
