rotaryencoder.h File Reference

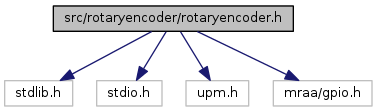

Include dependency graph for rotaryencoder.h:

API Description

/*
 * Author: Jon Trulson <jtrulson@ics.com>
 * Copyright (c) 2015 Intel Corporation.
 *
 * Permission is hereby granted, free of charge, to any person obtaining
 * a copy of this software and associated documentation files (the
 * "Software"), to deal in the Software without restriction, including
 * without limitation the rights to use, copy, modify, merge, publish,
 * distribute, sublicense, and/or sell copies of the Software, and to
 * permit persons to whom the Software is furnished to do so, subject to
 * the following conditions:
 *
 * The above copyright notice and this permission notice shall be
 * included in all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
 * EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
 * MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
 * NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE
 * LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION
 * OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION
 * WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
 */

#include <unistd.h>
#include <stdio.h>
#include <signal.h>

#include "rotaryencoder.h"
#include "upm_utilities.h"

int shouldRun = true;

void sig_handler(int signo)
{
    if (signo == SIGINT)
        shouldRun = false;
}


int main()
{
    signal(SIGINT, sig_handler);

    // Instantiate a Grove Rotary Encoder, using signal pins D2 and D3
    rotaryencoder_context sensor = rotaryencoder_init(2, 3);

    if (!sensor)
    {
        printf("rotaryencoder_init() failed.\n");
        return 1;
    }

    while (shouldRun)
    {
        printf("Position: %d\n", rotaryencoder_get_position(sensor));

        upm_delay_ms(100);
    }


    printf("Exiting...\n");

    rotaryencoder_close(sensor);

    return 0;
}

Go to the source code of this file.

Data Structures
struct	_rotaryencoder_context

Functions
rotaryencoder_context	rotaryencoder_init (int pin_a, int pin_b)
void	rotaryencoder_close (rotaryencoder_context dev)
void	rotaryencoder_set_position (const rotaryencoder_context dev, int count)
int	rotaryencoder_get_position (const rotaryencoder_context dev)

Typedefs
typedef struct _rotaryencoder_context *	rotaryencoder_context

Function Documentation

rotaryencoder_context rotaryencoder_init	(	int	pin_a,
		int	pin_b
	)

RotaryEncoder initialization

Parameters

pinA	Digital pin to use for signal A
pinB	Digital pin to use for signal B

Here is the call graph for this function:

void rotaryencoder_close

(

rotaryencoder_context

dev

)

RotaryEncoder close function

Here is the caller graph for this function:

void rotaryencoder_set_position	(	const rotaryencoder_context	dev,
		int	count
	)

Resets the position to a given number.

Parameters

count

Integer to initialize the position to

Here is the caller graph for this function:

int rotaryencoder_get_position

(

const rotaryencoder_context

dev

)

Gets the position value.

Here is the caller graph for this function:

Typedef Documentation

typedef struct _rotaryencoder_context * rotaryencoder_context

Device context
