LSM9DS0 Class Reference
Connection Type » I2CConnection Type » | GPIOSensor Categories » | AccelerometerSensor Categories » | Compass/Gyro/Magnometers » libupm-lsm9ds0

API for the LSM9DS0 3-axis Gyroscope, Accelerometer, and Magnetometer. More...

Detailed Description

The LSM9DS0 is a system-in-package featuring a 3D digital linear acceleration sensor, a 3D digital angular rate sensor, and a 3D digital magnetic sensor.

The LSM9DS0 has a linear acceleration full scale of 2g/4g/6g/8g/16g, a magnetic field full scale of 2/4/8/12 gauss and an angular rate of 245/500/2000 dps.

While not all of the functionality of this device is supported initially, methods and register definitions are provided that should allow an end user to implement whatever features are required.

This driver was developed on a Sparkfun 9DOF edison block.

// Instantiate an LSM9DS0 using default parameters (bus 1, gyro addr 6b,
// xm addr 1d)
upm::LSM9DS0 *sensor = new upm::LSM9DS0();
sensor->init();
while (shouldRun)
{
sensor->update();
float x, y, z;
sensor->getAccelerometer(&x, &y, &z);
cout << "Accelerometer: ";
cout << "AX: " << x << " AY: " << y << " AZ: " << z << endl;
sensor->getGyroscope(&x, &y, &z);
cout << "Gryoscope: ";
cout << "GX: " << x << " GY: " << y << " GZ: " << z << endl;
sensor->getMagnetometer(&x, &y, &z);
cout << "Magnetometer: ";
cout << "MX = " << x << " MY = " << y << " MZ = " << z << endl;
cout << "Temperature: " << sensor->getTemperature() << endl;
cout << endl;
usleep(500000);
}

Public Types

enum  REG_G_T {
  REG_WHO_AM_I_G = 0x0f, REG_CTRL_REG1_G = 0x20, REG_CTRL_REG2_G = 0x21, REG_CTRL_REG3_G = 0x22,
  REG_CTRL_REG4_G = 0x23, REG_CTRL_REG5_G = 0x24, REG_REFERENCE_G = 0x25, REG_STATUS_REG_G = 0x27,
  REG_OUT_X_L_G = 0x28, REG_OUT_X_H_G = 0x29, REG_OUT_Y_L_G = 0x2a, REG_OUT_Y_H_G = 0x2b,
  REG_OUT_Z_L_G = 0x2c, REG_OUT_Z_H_G = 0x2d, REG_FIFO_CTRL_REG_G = 0x2e, REG_FIFO_SRC_REG_G = 0x2f,
  REG_INT1_CFG_G = 0x30, REG_INT1_SRC_G = 0x31, REG_INT1_TSH_XH_G = 0x32, REG_INT1_TSH_XL_G = 0x33,
  REG_INT1_TSH_YH_G = 0x34, REG_INT1_TSH_YL_G = 0x35, REG_INT1_TSH_ZH_G = 0x36, REG_INT1_TSH_ZL_G = 0x37,
  REG_INT1_DURATION_G = 0x38
}

enum  CTRL_REG1_G_BITS_T {
  CTRL_REG1_G_YEN = 0x01, CTRL_REG1_G_XEN = 0x02, CTRL_REG1_G_ZEN = 0x04, CTRL_REG1_G_PD = 0x08,
  CTRL_REG1_G_BW0 = 0x10, CTRL_REG1_G_BW1 = 0x20, _CTRL_REG1_G_BW_MASK = 3, _CTRL_REG1_G_BW_SHIFT = 4,
  CTRL_REG1_G_DR0 = 0x40, CTRL_REG1_G_DR1 = 0x80, _CTRL_REG1_G_DR_MASK = 3, _CTRL_REG1_G_DR_SHIFT = 6,
  CTRL_REG1_G_ODR0 = 0x10, CTRL_REG1_G_ODR1 = 0x20, CTRL_REG1_G_ODR2 = 0x40, CTRL_REG1_G_ODR3 = 0x80,
  _CTRL_REG1_G_ODR_MASK = 15, _CTRL_REG1_G_ODR_SHIFT = 4
}

enum  G_ODR_T {
  G_ODR_95_12_5 = 0, G_ODR_95_25 = 1, G_ODR_190_12_5 = 4, G_ODR_190_25 = 5,
  G_ODR_190_50 = 6, G_ODR_190_70 = 7, G_ODR_380_20 = 8, G_ODR_380_25 = 9,
  G_ODR_380_50 = 10, G_ODR_380_100 = 11, G_ODR_760_30 = 12, G_ODR_760_35 = 13,
  G_ODR_760_50 = 14, G_ODR_760_100 = 15
}

enum  CTRL_REG2_G_BITS_T {
  CTRL_REG2_G_HPCF0 = 0x01, CTRL_REG2_G_HPCF1 = 0x02, CTRL_REG2_G_HPCF2 = 0x04, CTRL_REG2_G_HPCF3 = 0x08,
  _CTRL_REG2_G_HPCF_MASK = 15, _CTRL_REG2_G_HPCF_SHIFT = 0, CTRL_REG2_G_HPM0 = 0x10, CTRL_REG2_G_HPM1 = 0x20,
  _CTRL_REG2_G_HPM_MASK = 3, _CTRL_REG2_G_HPM_SHIFT = 4
}

enum  G_HPCF_T {
  G_HPCF_7_2 = 0, G_HPCF_3_5 = 1, G_HPCF_1_8 = 2, G_HPCF_0_9 = 3,
  G_HPCF_0_45 = 4, G_HPCF_0_18 = 5, G_HPCF_0_09 = 6, G_HPCF_0_045 = 7,
  G_HPCF_0_018 = 8, G_HPCF_0_009 = 9
}

enum  G_HPM_T { G_HPM_NORMAL_RESET_HPF = 0, G_HPM_REFERENCE = 1, G_HPM_NORMAL = 2, G_HPM_AUTORESET_ON_INTR = 3 }

enum  CTRL_REG3_G_BITS_T {
  CTRL_REG3_G_I2_EMPTY = 0x01, CTRL_REG3_G_I2_ORUN = 0x02, CTRL_REG3_G_I2_WTM = 0x04, CTRL_REG3_G_I2_DRDY = 0x08,
  CTRL_REG3_G_PP_OD = 0x10, CTRL_REG3_G_H_LACTIVE = 0x20, CTRL_REG3_G_I1_BOOT = 0x40, CTRL_REG3_G_I1_INT1 = 0x80
}

enum  CTRL_REG4_G_BITS_T {
  CTRL_REG4_G_SIM = 0x01, CTRL_REG4_G_ST0 = 0x02, CTRL_REG4_G_ST1 = 0x04, _CTRL_REG4_G_ST_MASK = 3,
  _CTRL_REG4_G_ST_SHIFT = 1, CTRL_REG4_G_FS0 = 0x10, CTRL_REG4_G_FS1 = 0x20, _CTRL_REG4_G_FS_MASK = 3,
  _CTRL_REG4_G_FS_SHIFT = 4, CTRL_REG4_G_BLE = 0x40, CTRL_REG4_G_BDU = 0x80
}

enum  G_ST_T { G_ST_NORMAL = 0, G_ST_SELFTEST0 = 1, G_ST_SELFTEST1 = 3 }

enum  G_FS_T { G_FS_245 = 0, G_FS_500 = 1, G_FS_2000 = 2 }

enum  CTRL_REG5_G_BITS_T {
  CTRL_REG5_G_OUTSEL0 = 0x01, CTRL_REG5_G_OUTSEL1 = 0x02, _CTRL_REG5_G_OUTSEL_MASK = 3, _CTRL_REG5_G_OUTSEL_SHIFT = 0,
  CTRL_REG5_G_INT1SEL0 = 0x04, CTRL_REG5_G_INT1SEL1 = 0x08, _CTRL_REG5_G_INT1SEL_MASK = 3, _CTRL_REG5_G_INT1SEL_SHIFT = 2,
  CTRL_REG5_G_HPEN = 0x10, CTRL_REG5_G_FIFO_EN = 0x40, CTRL_REG5_G_BOOT = 0x80
}

enum  G_INT1OUTSEL_T { G_INT1OUTSEL_0 = 0, G_INT1OUTSEL_1 = 1, G_INT1OUTSEL_2 = 2, G_INT1OUTSEL_3 = 3 }

enum  STATUS_REG_G_BITS_T {
  STATUS_REG_G_XDA = 0x01, STATUS_REG_G_YDA = 0x02, STATUS_REG_G_ZDA = 0x04, STATUS_REG_G_ZYXDA = 0x08,
  STATUS_REG_G_XOR = 0x10, STATUS_REG_G_YOR = 0x20, STATUS_REG_G_ZOR = 0x40, STATUS_REG_G_ZYXOR = 0x80
}

enum  FIFO_CTRL_REG_G_T {
  FIFO_CTRL_REG_G_WTM0 = 0x01, FIFO_CTRL_REG_G_WTM1 = 0x02, FIFO_CTRL_REG_G_WTM2 = 0x04, FIFO_CTRL_REG_G_WTM3 = 0x08,
  FIFO_CTRL_REG_G_WTM4 = 0x10, _FIFO_CTRL_REG_G_WTM_MASK = 31, _FIFO_CTRL_REG_G_WTM_SHIFT = 0, FIFO_CTRL_REG_G_FM0 = 0x20,
  FIFO_CTRL_REG_G_FM1 = 0x40, FIFO_CTRL_REG_G_FM2 = 0x80, _FIFO_CTRL_REG_G_FM_MASK = 7, _FIFO_CTRL_REG_G_FM_SHIFT = 5
}

enum  G_FM_T {
  G_FM_BYPASS = 0, G_FM_FIFO = 1, G_FM_STREAM = 2, G_FM_STREAM2FIFO = 3,
  G_FM_BYPASS2STREAM = 4
}

enum  FIFO_SRC_REG_G_BITS_T {
  FIFO_CTRL_REG_G_FSS0 = 0x01, FIFO_CTRL_REG_G_FSS1 = 0x02, FIFO_CTRL_REG_G_FSS2 = 0x04, FIFO_CTRL_REG_G_FSS3 = 0x08,
  FIFO_CTRL_REG_G_FSS4 = 0x10, _FIFO_CTRL_REG_G_FSS_MASK = 31, _FIFO_CTRL_REG_G_FSS_SHIFT = 0, FIFO_CTRL_REG_G_EMPTY = 0x20,
  FIFO_CTRL_REG_G_OVRN = 0x40, FIFO_CTRL_REG_G_WTM = 0x80
}

enum  INT1_CFG_G_BITS_T {
  INT1_CFG_G_XLIE = 0x01, INT1_CFG_G_XHIE = 0x02, INT1_CFG_G_YLIE = 0x04, INT1_CFG_G_YHIE = 0x08,
  INT1_CFG_G_ZLIE = 0x10, INT1_CFG_G_ZHIE = 0x20, INT1_CFG_G_LIR = 0x40, INT1_CFG_G_ANDOR = 0x80
}

enum  INT1_SRC_G_BITS_T {
  INT1_SRC_G_XL = 0x01, INT1_SRC_G_XH = 0x02, INT1_SRC_G_YL = 0x04, INT1_SRC_G_YH = 0x08,
  INT1_SRC_G_ZL = 0x10, INT1_SRC_G_ZH = 0x20, INT1_SRC_G_IA = 0x40
}

enum  REG_XM_T {
  REG_OUT_TEMP_L_XM = 0x05, REG_OUT_TEMP_H_XM = 0x06, REG_STATUS_REG_M = 0x07, REG_OUT_X_L_M = 0x08,
  REG_OUT_X_H_M = 0x09, REG_OUT_Y_L_M = 0x0a, REG_OUT_Y_H_M = 0x0b, REG_OUT_Z_L_M = 0x0c,
  REG_OUT_Z_H_M = 0x0d, REG_WHO_AM_I_XM = 0x0f, REG_INT_CTRL_REG_M = 0x12, REG_INT_SRC_REG_M = 0x13,
  REG_INT_THS_L_M = 0x14, REG_INT_THS_H_M = 0x15, REG_OFFSET_X_L_M = 0x16, REG_OFFSET_X_H_M = 0x17,
  REG_OFFSET_Y_L_M = 0x18, REG_OFFSET_Y_H_M = 0x19, REG_OFFSET_Z_L_M = 0x1a, REG_OFFSET_Z_H_M = 0x1b,
  REG_REFERENCE_X = 0x1c, REG_REFERENCE_Y = 0x1d, REG_REFERENCE_Z = 0x1e, REG_CTRL_REG0_XM = 0x1f,
  REG_CTRL_REG1_XM = 0x20, REG_CTRL_REG2_XM = 0x21, REG_CTRL_REG3_XM = 0x22, REG_CTRL_REG4_XM = 0x23,
  REG_CTRL_REG5_XM = 0x24, REG_CTRL_REG6_XM = 0x25, REG_CTRL_REG7_XM = 0x26, REG_STATUS_REG_A = 0x27,
  REG_OUT_X_L_A = 0x28, REG_OUT_X_H_A = 0x29, REG_OUT_Y_L_A = 0x2a, REG_OUT_Y_H_A = 0x2b,
  REG_OUT_Z_L_A = 0x2c, REG_OUT_Z_H_A = 0x2d, REG_FIFO_CTRL_REG = 0x2e, REG_FIFO_SRC_REG = 0x2f,
  REG_INT_GEN_1_REG = 0x30, REG_INT_GEN_1_SRC = 0x31, REG_INT_GEN_1_THS = 0x32, REG_INT_GEN_1_DURATION = 0x33,
  REG_INT_GEN_2_REG = 0x34, REG_INT_GEN_2_SRC = 0x35, REG_INT_GEN_2_THS = 0x36, REG_INT_GEN_2_DURATION = 0x37,
  REG_CLICK_CFG = 0x38, REG_CLICK_SRC = 0x39, REG_CLICK_THS = 0x3a, REG_TIME_LIMIT = 0x3b,
  REG_TIME_LATENCY = 0x3c, REG_TIME_WINDOW = 0x3d, REG_ACT_THS = 0x3e, REG_ACT_DUR = 0x3f
}

enum  STATUS_REG_M_BITS_T {
  STATUS_REG_M_XMDA = 0x01, STATUS_REG_M_YMDA = 0x02, STATUS_REG_M_ZMDA = 0x04, STATUS_REG_M_ZYXMDA = 0x08,
  STATUS_REG_M_XMOR = 0x10, STATUS_REG_M_YMOR = 0x20, STATUS_REG_M_ZMOR = 0x40, STATUS_REG_M_ZYXMOR = 0x80
}

enum  INT_CTRL_REG_M_BITS_T {
  INT_CTRL_REG_M_MIEN = 0x01, INT_CTRL_REG_M_4D = 0x02, INT_CTRL_REG_M_IEL = 0x04, INT_CTRL_REG_M_IEA = 0x08,
  INT_CTRL_REG_M_PP_OD = 0x10, INT_CTRL_REG_M_ZMIEN = 0x20, INT_CTRL_REG_M_YMIEN = 0x40, INT_CTRL_REG_M_XMIEN = 0x80
}

enum  INT_SRC_REG_M_BITS_T {
  INT_SRC_REG_M_MINT = 0x01, INT_SRC_REG_M_MROI = 0x02, INT_SRC_REG_M_NTH_Z = 0x04, INT_SRC_REG_M_NTH_Y = 0x08,
  INT_SRC_REG_M_NTH_X = 0x10, INT_SRC_REG_M_PTH_Z = 0x20, INT_SRC_REG_M_PTH_Y = 0x40, INT_SRC_REG_M_PTH_X = 0x80
}

enum  CTRL_REG0_XM_BITS_T {
  CTRL_REG0_XM_HPIS2 = 0x01, CTRL_REG0_XM_HPIS1 = 0x02, CTRL_REG0_XM_HP_CLICK = 0x04, CTRL_REG0_XM_WTM_LEN = 0x20,
  CTRL_REG0_XM_FIFO_EN = 0x40, CTRL_REG0_XM_BOOT = 0x80
}

enum  CTRL_REG1_XM_BITS_T {
  CTRL_REG1_XM_AXEN = 0x01, CTRL_REG1_XM_AYEN = 0x02, CTRL_REG1_XM_AZEN = 0x03, CTRL_REG1_XM_BDU = 0x04,
  CTRL_REG1_XM_AODR0 = 0x10, CTRL_REG1_XM_AODR1 = 0x20, CTRL_REG1_XM_AODR2 = 0x40, CTRL_REG1_XM_AODR3 = 0x80,
  _CTRL_REG1_XM_AODR_MASK = 15, _CTRL_REG1_XM_AODR_SHIFT = 4
}

enum  XM_AODR_T {
  XM_AODR_PWRDWN = 0, XM_AODR_3_125 = 1, XM_AODR_6_25 = 2, XM_AODR_12_5 = 3,
  XM_AODR_25 = 4, XM_AODR_50 = 5, XM_AODR_100 = 6, XM_AODR_200 = 7,
  XM_AODR_400 = 8, XM_AODR_800 = 9, XM_AODR_1000 = 10
}

enum  CTRL_REG2_XM_BITS_T {
  CTRL_REG2_XM_SIM = 0x01, CTRL_REG2_XM_AST0 = 0x02, CTRL_REG2_XM_AST1 = 0x04, _CTRL_REG2_XM_AST_MASK = 3,
  _CTRL_REG2_XM_AST_SHIFT = 1, CTRL_REG2_XM_AFS0 = 0x08, CTRL_REG2_XM_AFS1 = 0x10, CTRL_REG2_XM_AFS2 = 0x20,
  _CTRL_REG2_XM_AFS_MASK = 7, _CTRL_REG2_XM_AFS_SHIFT = 3, CTRL_REG2_XM_ABW0 = 0x40, CTRL_REG2_XM_ABW1 = 0x80,
  _CTRL_REG2_XM_ABW_MASK = 3, _CTRL_REG2_XM_ABW_SHIFT = 6
}

enum  XM_AST_T { XM_AST_NORMAL = 0, XM_AST_POS_SIGN = 1, XM_AST_NEG_SIGN = 2 }

enum  XM_AFS_T {
  XM_AFS_2 = 0, XM_AFS_4 = 1, XM_AFS_6 = 2, XM_AFS_8 = 3,
  XM_AFS_16 = 4
}

enum  XM_ABW_T { XM_ABW_773 = 0, XM_ABW_194 = 1, XM_ABW_362 = 2, XM_ABW_50 = 3 }

enum  CTRL_REG3_XM_BITS_T {
  CTRL_REG3_XM_P1_EMPTY = 0x01, CTRL_REG3_XM_P1_DRDYM = 0x02, CTRL_REG3_XM_P1_DRDYA = 0x04, CTRL_REG3_XM_P1_INTM = 0x08,
  CTRL_REG3_XM_P1_INT2 = 0x10, CTRL_REG3_XM_P1_INT1 = 0x20, CTRL_REG3_XM_P1_TAP = 0x40, CTRL_REG3_XM_P1_BOOT = 0x80
}

enum  CTRL_REG4_XM_BITS_T {
  CTRL_REG4_XM_P2_WTM = 0x01, CTRL_REG4_XM_P2_OVERRUN = 0x02, CTRL_REG4_XM_P2_DRDYM = 0x04, CTRL_REG4_XM_P2_DRDYA = 0x08,
  CTRL_REG4_XM_P2_INTM = 0x10, CTRL_REG4_XM_P2_INT2 = 0x20, CTRL_REG4_XM_P2_INT1 = 0x40, CTRL_REG4_XM_P2_TAP = 0x80
}

enum  CTRL_REG5_XM_BITS_T {
  CTRL_REG5_XM_LIR1 = 0x01, CTRL_REG5_XM_LIR2 = 0x02, CTRL_REG5_XM_ODR0 = 0x04, CTRL_REG5_XM_ODR1 = 0x08,
  CTRL_REG5_XM_ODR2 = 0x10, _CTRL_REG5_XM_ODR_MASK = 7, _CTRL_REG5_XM_ODR_SHIFT = 2, CTRL_REG5_XM_RES0 = 0x20,
  CTRL_REG5_XM_RES1 = 0x40, _CTRL_REG5_XM_RES_MASK = 3, _CTRL_REG5_XM_RES_SHIFT = 5, CTRL_REG5_XM_TEMP_EN = 0x80
}

enum  XM_ODR_T {
  XM_ODR_3_125 = 0, XM_ODR_6_25 = 1, XM_ODR_12_5 = 2, XM_ODR_25 = 3,
  XM_ODR_50 = 4, XM_ODR_100 = 5
}

enum  XM_RES_T { XM_RES_LOW = 0, XM_RES_HIGH = 3 }

enum  CTRL_REG6_XM_BITS_T { CTRL_REG6_XM_MFS0 = 0x20, CTRL_REG6_XM_MFS1 = 0x40, _CTRL_REG6_XM_MFS_MASK = 3, _CTRL_REG6_XM_MFS_SHIFT = 5 }

enum  XM_MFS_T { XM_MFS_2 = 0, XM_MFS_4 = 1, XM_MFS_8 = 2, XM_MFS_12 = 3 }

enum  CTRL_REG7_XM_BITS_T {
  CTRL_REG7_XM_MD0 = 0x01, CTRL_REG7_XM_MD1 = 0x02, _CTRL_REG7_XM_MD_MASK = 3, _CTRL_REG7_XM_MD_SHIFT = 0,
  CTRL_REG7_XM_MLP = 0x04, CTRL_REG7_XM_AFDS = 0x20, CTRL_REG7_XM_AHPM0 = 0x40, CTRL_REG7_XM_AHPM1 = 0x80,
  _CTRL_REG7_XM_AHPM_MASK = 3, _CTRL_REG7_XM_AHPM_SHIFT = 6
}

enum  XM_MD_T { XM_MD_CONTINUOUS = 0, XM_MD_SINGLE = 1, XM_MD_POWERDOWN = 2 }

enum  XM_AHPM_T { XM_AHPM_NORMAL_REF = 0, XM_AHPM_REFERENCE = 1, XM_AHPM_NORMAL = 2, XM_AHPM_AUTORESET = 3 }

enum  STATUS_REG_A_BITS_T {
  STATUS_REG_A_XADA = 0x01, STATUS_REG_A_YADA = 0x02, STATUS_REG_A_ZADA = 0x04, STATUS_REG_A_ZYXADA = 0x08,
  STATUS_REG_A_XAOR = 0x10, STATUS_REG_A_YAOR = 0x20, STATUS_REG_A_ZAOR = 0x40, STATUS_REG_A_ZYXAOR = 0x80
}

enum  FIFO_CTRL_REG_T {
  FIFO_CTRL_REG_FTH0 = 0x01, FIFO_CTRL_REG_FTH1 = 0x02, FIFO_CTRL_REG_FTH2 = 0x04, FIFO_CTRL_REG_FTH3 = 0x08,
  FIFO_CTRL_REG_FTH4 = 0x10, _FIFO_CTRL_REG_FTH_MASK = 31, _FIFO_CTRL_REG_FTH_SHIFT = 0, FIFO_CTRL_REG_FM0 = 0x20,
  FIFO_CTRL_REG_FM1 = 0x40, FIFO_CTRL_REG_FM2 = 0x80, _FIFO_CTRL_REG_FM_MASK = 7, _FIFO_CTRL_REG_FM_SHIFT = 5
}

enum  FM_T {
  FM_BYPASS = 0, FM_FIFO = 1, FM_STREAM = 2, FM_STREAM2FIFO = 3,
  FM_BYPASS2STREAM = 4
}

enum  FIFO_SRC_REG_BITS_T {
  FIFO_CTRL_REG_FSS0 = 0x01, FIFO_CTRL_REG_FSS1 = 0x02, FIFO_CTRL_REG_FSS2 = 0x04, FIFO_CTRL_REG_FSS3 = 0x08,
  FIFO_CTRL_REG_FSS4 = 0x10, _FIFO_CTRL_REG_FSS_MASK = 31, _FIFO_CTRL_REG_FSS_SHIFT = 0, FIFO_CTRL_REG_EMPTY = 0x20,
  FIFO_CTRL_REG_OVRN = 0x40, FIFO_CTRL_REG_WTM = 0x80
}

enum  INT_GEN_X_REG_BITS_T {
  INT_GEN_X_REG_XLIE_XDOWNE = 0x01, INT_GEN_X_REG_XHIE_XUPE = 0x02, INT_GEN_X_REG_YLIE_YDOWNE = 0x04, INT_GEN_X_REG_YHIE_YUPE = 0x08,
  INT_GEN_X_REG_ZLIE_ZDOWNE = 0x10, INT_GEN_X_REG_ZHIE_ZUPE = 0x20, INT_GEN_X_REG_6D = 0x40, INT_GEN_X_REG_AOI = 0x80
}

enum  INT_GEN_X_SRC_BITS_T {
  INT_GEN_X_SRC_XL = 0x01, INT_GEN_X_SRC_XH = 0x02, INT_GEN_X_SRC_YL = 0x04, INT_GEN_X_SRC_YH = 0x08,
  INT_GEN_X_SRC_ZL = 0x10, INT_GEN_X_SRC_ZH = 0x20, INT_GEN_X_SRC_IA = 0x40
}

enum  INT_GEN_X_THS_BITS_T {
  INT_GEN_X_THS0 = 0x01, INT_GEN_X_THS1 = 0x02, INT_GEN_X_THS2 = 0x04, INT_GEN_X_THS3 = 0x08,
  INT_GEN_X_THS4 = 0x10, INT_GEN_X_THS5 = 0x20, INT_GEN_X_THS6 = 0x40, _INT_GEN_X_THS_MASK = 127,
  _INT_GEN_X_THS_SHIFT = 0
}

enum  INT_GEN_X_DUR_BITS_T {
  INT_GEN_X_DUR0 = 0x01, INT_GEN_X_DUR1 = 0x02, INT_GEN_X_DUR2 = 0x04, INT_GEN_X_DUR3 = 0x08,
  INT_GEN_X_DUR4 = 0x10, INT_GEN_X_DUR5 = 0x20, INT_GEN_X_DUR6 = 0x40, _INT_GEN_X_DUR_MASK = 127,
  _INT_GEN_X_DUR_SHIFT = 0
}

enum  CLICK_CONFIG_BITS_T {
  CLICK_CONFIG_XS = 0x01, CLICK_CONFIG_XD = 0x02, CLICK_CONFIG_YS = 0x04, CLICK_CONFIG_YD = 0x08,
  CLICK_CONFIG_ZS = 0x10, CLICK_CONFIG_ZD = 0x20
}

enum  CLICK_SRC_BITS_T {
  CLICK_SRC_X = 0x01, CLICK_SRC_Y = 0x02, CLICK_SRC_Z = 0x04, CLICK_SRC_SIGN = 0x08,
  CLICK_SRC_SCLICK = 0x10, CLICK_SRC_DCLICK = 0x20, CLICK_SRC_IA = 0x40
}

enum  CLICK_THS_BITS_T {
  CLICK_THS_THS0 = 0x01, CLICK_THS_THS1 = 0x02, CLICK_THS_THS2 = 0x04, CLICK_THS_THS3 = 0x08,
  CLICK_THS_THS4 = 0x10, CLICK_THS_THS5 = 0x20, CLICK_THS_THS6 = 0x40, _CLICK_THS_THS_MASK = 127,
  _CLICK_THS_THS_SHIFT = 0
}

enum  CLICK_TIME_LIMIT_BITS_T {
  CLICK_TIME_LIMIT_TLI0 = 0x01, CLICK_TIME_LIMIT_TLI1 = 0x02, CLICK_TIME_LIMIT_TLI2 = 0x04, CLICK_TIME_LIMIT_TLI3 = 0x08,
  CLICK_TIME_LIMIT_TLI4 = 0x10, CLICK_TIME_LIMIT_TLI5 = 0x20, CLICK_TIME_LIMIT_TLI6 = 0x40, _CLICK_TIME_LIMIT_TLI_MASK = 127,
  _CLICK_TIME_LIMIT_TLI_SHIFT = 0
}

enum  ACT_THS_BITS_T {
  ACT_THS_ACTH0 = 0x01, ACT_THS_ACTH1 = 0x02, ACT_THS_ACTH2 = 0x04, ACT_THS_ACTH3 = 0x08,
  ACT_THS_ACTH4 = 0x10, ACT_THS_ACTH5 = 0x20, ACT_THS_ACTH6 = 0x40, _ACT_THS_ACTH_MASK = 127,
  _ACT_THS_ACTH_SHIFT = 0
}

enum  DEVICE_T { DEV_GYRO, DEV_XM }

enum  INTERRUPT_PINS_T { INTERRUPT_G_INT, INTERRUPT_G_DRDY, INTERRUPT_XM_GEN1, INTERRUPT_XM_GEN2 }


Public Member Functions

 LSM9DS0 (int bus=LSM9DS0_I2C_BUS, uint8_t gAddress=LSM9DS0_DEFAULT_GYRO_ADDR, uint8_t xmAddress=LSM9DS0_DEFAULT_XM_ADDR)

 ~LSM9DS0 ()

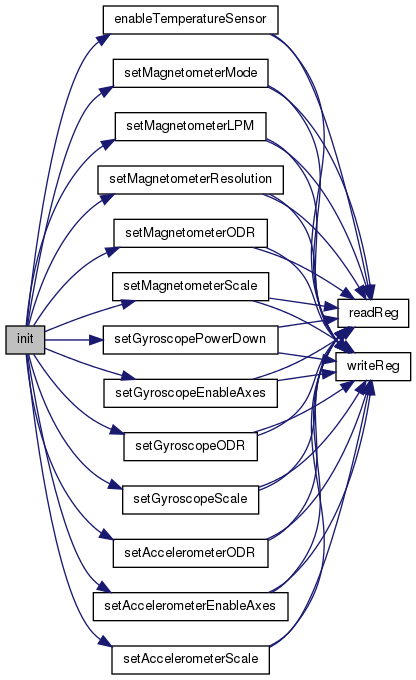

bool init ()

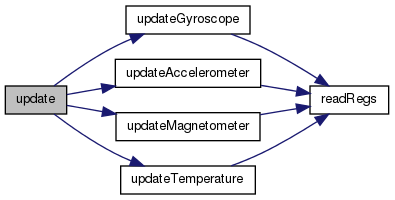

void update ()

void updateGyroscope ()

void updateAccelerometer ()

void updateMagnetometer ()

void updateTemperature ()

uint8_t readReg (DEVICE_T dev, uint8_t reg)

void readRegs (DEVICE_T dev, uint8_t reg, uint8_t *buffer, int len)

bool writeReg (DEVICE_T dev, uint8_t reg, uint8_t val)

bool setGyroscopePowerDown (bool enable)

bool setGyroscopeEnableAxes (uint8_t axes)

bool setGyroscopeODR (G_ODR_T odr)

bool setGyroscopeScale (G_FS_T scale)

bool setAccelerometerEnableAxes (uint8_t axes)

bool setAccelerometerODR (XM_AODR_T odr)

bool setAccelerometerScale (XM_AFS_T scale)

bool setMagnetometerResolution (XM_RES_T res)

bool setMagnetometerODR (XM_ODR_T odr)

bool setMagnetometerMode (XM_MD_T mode)

bool setMagnetometerLPM (bool enable)

bool setMagnetometerScale (XM_MFS_T scale)

void getAccelerometer (float *x, float *y, float *z)

void getGyroscope (float *x, float *y, float *z)

void getMagnetometer (float *x, float *y, float *z)

float getTemperature ()

bool enableTemperatureSensor (bool enable)

uint8_t getGyroscopeStatus ()

uint8_t getMagnetometerStatus ()

uint8_t getAccelerometerStatus ()

uint8_t getGyroscopeInterruptConfig ()

bool setGyroscopeInterruptConfig (uint8_t enables)

uint8_t getGyroscopeInterruptSrc ()

uint8_t getMagnetometerInterruptControl ()

bool setMagnetometerInterruptControl (uint8_t enables)

uint8_t getMagnetometerInterruptSrc ()

uint8_t getInterruptGen1 ()

bool setInterruptGen1 (uint8_t enables)

uint8_t getInterruptGen1Src ()

uint8_t getInterruptGen2 ()

bool setInterruptGen2 (uint8_t enables)

uint8_t getInterruptGen2Src ()

void installISR (INTERRUPT_PINS_T intr, int gpio, mraa::Edge level, void(*isr)(void *), void *arg)

void uninstallISR (INTERRUPT_PINS_T intr)


Protected Attributes

float m_accelX

float m_accelY

float m_accelZ

float m_gyroX

float m_gyroY

float m_gyroZ

float m_magX

float m_magY

float m_magZ

float m_temp

float m_accelScale

float m_gyroScale

float m_magScale


Constructor & Destructor Documentation

LSM9DS0 ( int  bus = LSM9DS0_I2C_BUS,
uint8_t  gAddress = LSM9DS0_DEFAULT_GYRO_ADDR,
uint8_t  xmAddress = LSM9DS0_DEFAULT_XM_ADDR
)

lsm9ds0 constructor

Parameters
busi2c bus to use
addressthe address for this device
~LSM9DS0 ( )

LSM9DS0 Destructor

Here is the call graph for this function:

Member Function Documentation

bool init ( )

set up initial values and start operation

Returns
true if successful

Here is the call graph for this function:

void update ( void  )

update the accelerometer, gyroscope, magnetometer and termperature values.

Here is the call graph for this function:

void updateGyroscope ( )

update the gyroscope values only

Here is the call graph for this function:

Here is the caller graph for this function:

void updateAccelerometer ( )

update the accelerometer values only

Here is the call graph for this function:

Here is the caller graph for this function:

void updateMagnetometer ( )

update the magnetometer values only

Here is the call graph for this function:

Here is the caller graph for this function:

void updateTemperature ( )

update the temperature value only

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t readReg ( DEVICE_T  dev,
uint8_t  reg
)

read a register

Parameters
devthe device to access (XM or G)
regthe register to read
Returns
the value of the register

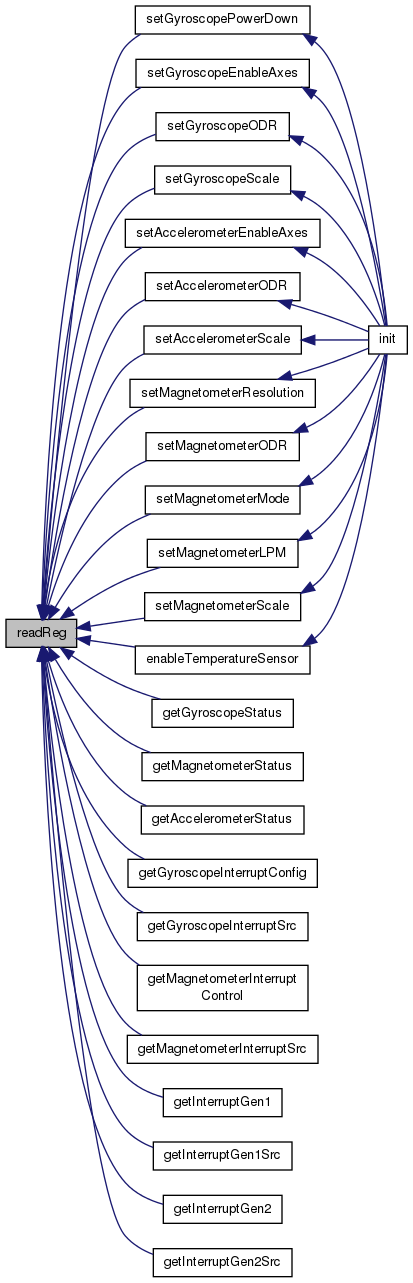

Here is the caller graph for this function:

void readRegs ( DEVICE_T  dev,
uint8_t  reg,
uint8_t *  buffer,
int  len
)

read contiguous register into a buffer

Parameters
devthe device to access (XM or G)
regthe register to start reading at
bufthe buffer to store the results
lenthe number of registers to read
Returns
the value of the register

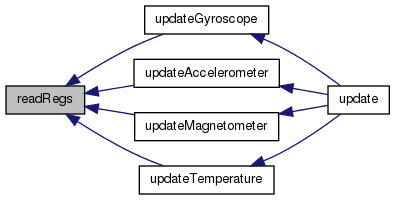

Here is the caller graph for this function:

bool writeReg ( DEVICE_T  dev,
uint8_t  reg,
uint8_t  val
)

write to a register

Parameters
devthe device to access (XM or G)
regthe register to write to
valthe value to write
Returns
true if successful, false otherwise

Here is the caller graph for this function:

bool setGyroscopePowerDown ( bool  enable)

enable or disable the gyro power down mode

Parameters
enabletrue to put device to sleep, false to wake up
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setGyroscopeEnableAxes ( uint8_t  axes)

enable or disable gyroscope axes. If all axis are disabled, and powerdown mode is not set, then the gyro goes into sleep mode.

Parameters
axesbit mask of valid axes, (CTRL_REG1_G_YEN, ...)
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setGyroscopeODR ( G_ODR_T  odr)

set the gyroscope Output Data Rate (ODR)

Parameters
odrone of the G_ODR_T values
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setGyroscopeScale ( G_FS_T  scale)

set the scaling mode of the gyroscope

Parameters
scaleone of the G_FS_T values
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setAccelerometerEnableAxes ( uint8_t  axes)

enable or disable accelerometer axes.

Parameters
axesbit mask of valid axes, (CTRL_REG1_XM_AXEN, ...)
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setAccelerometerODR ( XM_AODR_T  odr)

set the accelerometer Output Data Rate (ODR)

Parameters
odrone of the XM_AODR_T values
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setAccelerometerScale ( XM_AFS_T  scale)

set the scaling mode of the accelerometer

Parameters
scaleone of the XM_AFS_T values
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setMagnetometerResolution ( XM_RES_T  res)

set the magnetometer resolution

Parameters
resone of the XM_RES_T values
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setMagnetometerODR ( XM_ODR_T  odr)

set the magnetometer Output Data Rate (ODR)

Parameters
odrone of the XM_ODR_T values
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setMagnetometerMode ( XM_MD_T  mode)

set the magnetometer sensor mode

Parameters
modeone of the XM_MD_T values
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setMagnetometerLPM ( bool  enable)

enable or disable magnetometer low power mode (LPM). When in low power mode, the magnetometer updates at 3.125Hz, regardless of it's ODR setting.

Parameters
enabletrue to enable LPM, false otherwise
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

bool setMagnetometerScale ( XM_MFS_T  scale)

set the scaling mode of the magnetometer

Parameters
scaleone of the XM_MFS_T values
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

void getAccelerometer ( float *  x,
float *  y,
float *  z
)

get the accelerometer values in gravities

Parameters
xthe returned x value, if arg is non-NULL
ythe returned y value, if arg is non-NULL
zthe returned z value, if arg is non-NULL
Returns
true if successful, false otherwise
void getGyroscope ( float *  x,
float *  y,
float *  z
)

get the gyroscope values in degrees per second

Parameters
xthe returned x value, if arg is non-NULL
ythe returned y value, if arg is non-NULL
zthe returned z value, if arg is non-NULL
Returns
true if successful, false otherwise
void getMagnetometer ( float *  x,
float *  y,
float *  z
)

get the magnetometer values in gauss

Parameters
xthe returned x value, if arg is non-NULL
ythe returned y value, if arg is non-NULL
zthe returned z value, if arg is non-NULL
Returns
true if successful, false otherwise
float getTemperature ( void  )

get the temperature value. Unfortunately the datasheet does not provide a mechanism to convert the temperature value into the correct value, so I made a 'guess'. If it's wrong, and you figure it out, send a patch!

Returns
the temperature value in degrees Celcius
bool enableTemperatureSensor ( bool  enable)

enable onboard temperature measurement sensor

Parameters
enabletrue to enable temperature sensor, false to disable
Returns
true if successful, false otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t getGyroscopeStatus ( )

return the gyroscope status register

Returns
bitmask of STATUS_REG_G_BITS_T bits

Here is the call graph for this function:

uint8_t getMagnetometerStatus ( )

return the magnetometer status register

Returns
bitmask of STATUS_REG_M_BITS_T bits

Here is the call graph for this function:

uint8_t getAccelerometerStatus ( )

return the accelerometer status register

Returns
bitmask of STATUS_REG_A_BITS_T bits

Here is the call graph for this function:

uint8_t getGyroscopeInterruptConfig ( )

return the gyroscope interrupt config register

Returns
bitmask of INT1_CFG_G_BITS_T bits

Here is the call graph for this function:

bool setGyroscopeInterruptConfig ( uint8_t  enables)

set the gyroscope interrupt config register

Parameters
enablesbitmask of INT1_CFG_G_BITS_T values
Returns
true if successful

Here is the call graph for this function:

uint8_t getGyroscopeInterruptSrc ( )

return the gyroscope interrupt src register

Returns
bitmask of INT1_SRC_G_BITS_T bits

Here is the call graph for this function:

uint8_t getMagnetometerInterruptControl ( )

return the magnetometer interrupt control register

Returns
bitmask of INT_CTRL_REG_M_BITS_T bits

Here is the call graph for this function:

bool setMagnetometerInterruptControl ( uint8_t  enables)

set the magnetometer interrupt control register

Parameters
enablesbitmask of INT_CTRL_REG_M_BITS_T values
Returns
true if successful

Here is the call graph for this function:

uint8_t getMagnetometerInterruptSrc ( )

return the magnetometer interrupt src register

Returns
bitmask of INT_SRC_REG_M_BITS_T bits

Here is the call graph for this function:

uint8_t getInterruptGen1 ( )

return the inertial interrupt generator 1 register

Returns
bitmask of INT_GEN_X_REG_BITS_T bits

Here is the call graph for this function:

bool setInterruptGen1 ( uint8_t  enables)

set the inertial interrupt generator 1 register

Parameters
enablesbitmask of INT_GEN_X_REG_BITS_T values
Returns
true if successful

Here is the call graph for this function:

uint8_t getInterruptGen1Src ( )

return the inertial interrupt generator 1 src register

Returns
bitmask of INT_GEN_X_SRC_BITS_T bits

Here is the call graph for this function:

uint8_t getInterruptGen2 ( )

return the inertial interrupt generator 2 register

Returns
bitmask of INT_GEN_X_REG_BITS_T bits

Here is the call graph for this function:

bool setInterruptGen2 ( uint8_t  enables)

set the inertial interrupt generator 2 register

Parameters
enablesbitmask of INT_GEN_X_REG_BITS_T values
Returns
true if successful

Here is the call graph for this function:

uint8_t getInterruptGen2Src ( )

return the inertial interrupt generator 2 src register

Returns
bitmask of INT_GEN_X_SRC_BITS_T bits

Here is the call graph for this function:

void installISR ( INTERRUPT_PINS_T  intr,
int  gpio,
mraa::Edge  level,
void(*)(void *)  isr,
void *  arg
)

install an interrupt handler.

Parameters
introne of the INTERRUPT_PINS_T values specifying which interrupt pin out of 4 you are installing
gpiogpio pin to use as interrupt pin
levelthe interrupt trigger level (one of mraa::Edge values). Make sure that you have configured the interrupt pin properly for whatever level you choose.
isrthe interrupt handler, accepting a void * argument
argthe argument to pass the the interrupt handler

Here is the call graph for this function:

void uninstallISR ( INTERRUPT_PINS_T  intr)

uninstall a previously installed interrupt handler

Parameters
introne of the INTERRUPT_PINS_T values specifying which interrupt pin out of 4 you are uninstalling

Here is the caller graph for this function:

The documentation for this class was generated from the following files:
Generated on Tue Sep 29 2015 15:51:28 for upm by   doxygen 1.8.9.1
