libupm-lsm9ds0

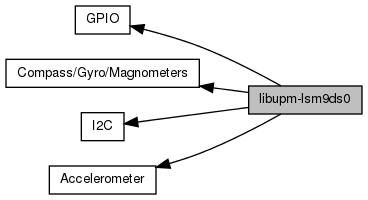

Connection Type » I2CConnection Type » | GPIOSensor Categories » | AccelerometerSensor Categories » | Compass/Gyro/Magnometers

LSM9DS0 accelerometer library. More...

Data Structures

class  LSM9DS0
 API for the LSM9DS0 3-axis Gyroscope, Accelerometer, and Magnetometer. More...


Enumerations

enum  REG_G_T {
  REG_WHO_AM_I_G = 0x0f, REG_CTRL_REG1_G = 0x20, REG_CTRL_REG2_G = 0x21, REG_CTRL_REG3_G = 0x22,
  REG_CTRL_REG4_G = 0x23, REG_CTRL_REG5_G = 0x24, REG_REFERENCE_G = 0x25, REG_STATUS_REG_G = 0x27,
  REG_OUT_X_L_G = 0x28, REG_OUT_X_H_G = 0x29, REG_OUT_Y_L_G = 0x2a, REG_OUT_Y_H_G = 0x2b,
  REG_OUT_Z_L_G = 0x2c, REG_OUT_Z_H_G = 0x2d, REG_FIFO_CTRL_REG_G = 0x2e, REG_FIFO_SRC_REG_G = 0x2f,
  REG_INT1_CFG_G = 0x30, REG_INT1_SRC_G = 0x31, REG_INT1_TSH_XH_G = 0x32, REG_INT1_TSH_XL_G = 0x33,
  REG_INT1_TSH_YH_G = 0x34, REG_INT1_TSH_YL_G = 0x35, REG_INT1_TSH_ZH_G = 0x36, REG_INT1_TSH_ZL_G = 0x37,
  REG_INT1_DURATION_G = 0x38
}

enum  CTRL_REG1_G_BITS_T {
  CTRL_REG1_G_YEN = 0x01, CTRL_REG1_G_XEN = 0x02, CTRL_REG1_G_ZEN = 0x04, CTRL_REG1_G_PD = 0x08,
  CTRL_REG1_G_BW0 = 0x10, CTRL_REG1_G_BW1 = 0x20, _CTRL_REG1_G_BW_MASK = 3, _CTRL_REG1_G_BW_SHIFT = 4,
  CTRL_REG1_G_DR0 = 0x40, CTRL_REG1_G_DR1 = 0x80, _CTRL_REG1_G_DR_MASK = 3, _CTRL_REG1_G_DR_SHIFT = 6,
  CTRL_REG1_G_ODR0 = 0x10, CTRL_REG1_G_ODR1 = 0x20, CTRL_REG1_G_ODR2 = 0x40, CTRL_REG1_G_ODR3 = 0x80,
  _CTRL_REG1_G_ODR_MASK = 15, _CTRL_REG1_G_ODR_SHIFT = 4
}

enum  G_ODR_T {
  G_ODR_95_12_5 = 0, G_ODR_95_25 = 1, G_ODR_190_12_5 = 4, G_ODR_190_25 = 5,
  G_ODR_190_50 = 6, G_ODR_190_70 = 7, G_ODR_380_20 = 8, G_ODR_380_25 = 9,
  G_ODR_380_50 = 10, G_ODR_380_100 = 11, G_ODR_760_30 = 12, G_ODR_760_35 = 13,
  G_ODR_760_50 = 14, G_ODR_760_100 = 15
}

enum  CTRL_REG2_G_BITS_T {
  CTRL_REG2_G_HPCF0 = 0x01, CTRL_REG2_G_HPCF1 = 0x02, CTRL_REG2_G_HPCF2 = 0x04, CTRL_REG2_G_HPCF3 = 0x08,
  _CTRL_REG2_G_HPCF_MASK = 15, _CTRL_REG2_G_HPCF_SHIFT = 0, CTRL_REG2_G_HPM0 = 0x10, CTRL_REG2_G_HPM1 = 0x20,
  _CTRL_REG2_G_HPM_MASK = 3, _CTRL_REG2_G_HPM_SHIFT = 4
}

enum  G_HPCF_T {
  G_HPCF_7_2 = 0, G_HPCF_3_5 = 1, G_HPCF_1_8 = 2, G_HPCF_0_9 = 3,
  G_HPCF_0_45 = 4, G_HPCF_0_18 = 5, G_HPCF_0_09 = 6, G_HPCF_0_045 = 7,
  G_HPCF_0_018 = 8, G_HPCF_0_009 = 9
}

enum  G_HPM_T { G_HPM_NORMAL_RESET_HPF = 0, G_HPM_REFERENCE = 1, G_HPM_NORMAL = 2, G_HPM_AUTORESET_ON_INTR = 3 }

enum  CTRL_REG3_G_BITS_T {
  CTRL_REG3_G_I2_EMPTY = 0x01, CTRL_REG3_G_I2_ORUN = 0x02, CTRL_REG3_G_I2_WTM = 0x04, CTRL_REG3_G_I2_DRDY = 0x08,
  CTRL_REG3_G_PP_OD = 0x10, CTRL_REG3_G_H_LACTIVE = 0x20, CTRL_REG3_G_I1_BOOT = 0x40, CTRL_REG3_G_I1_INT1 = 0x80
}

enum  CTRL_REG4_G_BITS_T {
  CTRL_REG4_G_SIM = 0x01, CTRL_REG4_G_ST0 = 0x02, CTRL_REG4_G_ST1 = 0x04, _CTRL_REG4_G_ST_MASK = 3,
  _CTRL_REG4_G_ST_SHIFT = 1, CTRL_REG4_G_FS0 = 0x10, CTRL_REG4_G_FS1 = 0x20, _CTRL_REG4_G_FS_MASK = 3,
  _CTRL_REG4_G_FS_SHIFT = 4, CTRL_REG4_G_BLE = 0x40, CTRL_REG4_G_BDU = 0x80
}

enum  G_ST_T { G_ST_NORMAL = 0, G_ST_SELFTEST0 = 1, G_ST_SELFTEST1 = 3 }

enum  G_FS_T { G_FS_245 = 0, G_FS_500 = 1, G_FS_2000 = 2 }

enum  CTRL_REG5_G_BITS_T {
  CTRL_REG5_G_OUTSEL0 = 0x01, CTRL_REG5_G_OUTSEL1 = 0x02, _CTRL_REG5_G_OUTSEL_MASK = 3, _CTRL_REG5_G_OUTSEL_SHIFT = 0,
  CTRL_REG5_G_INT1SEL0 = 0x04, CTRL_REG5_G_INT1SEL1 = 0x08, _CTRL_REG5_G_INT1SEL_MASK = 3, _CTRL_REG5_G_INT1SEL_SHIFT = 2,
  CTRL_REG5_G_HPEN = 0x10, CTRL_REG5_G_FIFO_EN = 0x40, CTRL_REG5_G_BOOT = 0x80
}

enum  G_INT1OUTSEL_T { G_INT1OUTSEL_0 = 0, G_INT1OUTSEL_1 = 1, G_INT1OUTSEL_2 = 2, G_INT1OUTSEL_3 = 3 }

enum  STATUS_REG_G_BITS_T {
  STATUS_REG_G_XDA = 0x01, STATUS_REG_G_YDA = 0x02, STATUS_REG_G_ZDA = 0x04, STATUS_REG_G_ZYXDA = 0x08,
  STATUS_REG_G_XOR = 0x10, STATUS_REG_G_YOR = 0x20, STATUS_REG_G_ZOR = 0x40, STATUS_REG_G_ZYXOR = 0x80
}

enum  FIFO_CTRL_REG_G_T {
  FIFO_CTRL_REG_G_WTM0 = 0x01, FIFO_CTRL_REG_G_WTM1 = 0x02, FIFO_CTRL_REG_G_WTM2 = 0x04, FIFO_CTRL_REG_G_WTM3 = 0x08,
  FIFO_CTRL_REG_G_WTM4 = 0x10, _FIFO_CTRL_REG_G_WTM_MASK = 31, _FIFO_CTRL_REG_G_WTM_SHIFT = 0, FIFO_CTRL_REG_G_FM0 = 0x20,
  FIFO_CTRL_REG_G_FM1 = 0x40, FIFO_CTRL_REG_G_FM2 = 0x80, _FIFO_CTRL_REG_G_FM_MASK = 7, _FIFO_CTRL_REG_G_FM_SHIFT = 5
}

enum  G_FM_T {
  G_FM_BYPASS = 0, G_FM_FIFO = 1, G_FM_STREAM = 2, G_FM_STREAM2FIFO = 3,
  G_FM_BYPASS2STREAM = 4
}

enum  FIFO_SRC_REG_G_BITS_T {
  FIFO_CTRL_REG_G_FSS0 = 0x01, FIFO_CTRL_REG_G_FSS1 = 0x02, FIFO_CTRL_REG_G_FSS2 = 0x04, FIFO_CTRL_REG_G_FSS3 = 0x08,
  FIFO_CTRL_REG_G_FSS4 = 0x10, _FIFO_CTRL_REG_G_FSS_MASK = 31, _FIFO_CTRL_REG_G_FSS_SHIFT = 0, FIFO_CTRL_REG_G_EMPTY = 0x20,
  FIFO_CTRL_REG_G_OVRN = 0x40, FIFO_CTRL_REG_G_WTM = 0x80
}

enum  INT1_CFG_G_BITS_T {
  INT1_CFG_G_XLIE = 0x01, INT1_CFG_G_XHIE = 0x02, INT1_CFG_G_YLIE = 0x04, INT1_CFG_G_YHIE = 0x08,
  INT1_CFG_G_ZLIE = 0x10, INT1_CFG_G_ZHIE = 0x20, INT1_CFG_G_LIR = 0x40, INT1_CFG_G_ANDOR = 0x80
}

enum  INT1_SRC_G_BITS_T {
  INT1_SRC_G_XL = 0x01, INT1_SRC_G_XH = 0x02, INT1_SRC_G_YL = 0x04, INT1_SRC_G_YH = 0x08,
  INT1_SRC_G_ZL = 0x10, INT1_SRC_G_ZH = 0x20, INT1_SRC_G_IA = 0x40
}

enum  REG_XM_T {
  REG_OUT_TEMP_L_XM = 0x05, REG_OUT_TEMP_H_XM = 0x06, REG_STATUS_REG_M = 0x07, REG_OUT_X_L_M = 0x08,
  REG_OUT_X_H_M = 0x09, REG_OUT_Y_L_M = 0x0a, REG_OUT_Y_H_M = 0x0b, REG_OUT_Z_L_M = 0x0c,
  REG_OUT_Z_H_M = 0x0d, REG_WHO_AM_I_XM = 0x0f, REG_INT_CTRL_REG_M = 0x12, REG_INT_SRC_REG_M = 0x13,
  REG_INT_THS_L_M = 0x14, REG_INT_THS_H_M = 0x15, REG_OFFSET_X_L_M = 0x16, REG_OFFSET_X_H_M = 0x17,
  REG_OFFSET_Y_L_M = 0x18, REG_OFFSET_Y_H_M = 0x19, REG_OFFSET_Z_L_M = 0x1a, REG_OFFSET_Z_H_M = 0x1b,
  REG_REFERENCE_X = 0x1c, REG_REFERENCE_Y = 0x1d, REG_REFERENCE_Z = 0x1e, REG_CTRL_REG0_XM = 0x1f,
  REG_CTRL_REG1_XM = 0x20, REG_CTRL_REG2_XM = 0x21, REG_CTRL_REG3_XM = 0x22, REG_CTRL_REG4_XM = 0x23,
  REG_CTRL_REG5_XM = 0x24, REG_CTRL_REG6_XM = 0x25, REG_CTRL_REG7_XM = 0x26, REG_STATUS_REG_A = 0x27,
  REG_OUT_X_L_A = 0x28, REG_OUT_X_H_A = 0x29, REG_OUT_Y_L_A = 0x2a, REG_OUT_Y_H_A = 0x2b,
  REG_OUT_Z_L_A = 0x2c, REG_OUT_Z_H_A = 0x2d, REG_FIFO_CTRL_REG = 0x2e, REG_FIFO_SRC_REG = 0x2f,
  REG_INT_GEN_1_REG = 0x30, REG_INT_GEN_1_SRC = 0x31, REG_INT_GEN_1_THS = 0x32, REG_INT_GEN_1_DURATION = 0x33,
  REG_INT_GEN_2_REG = 0x34, REG_INT_GEN_2_SRC = 0x35, REG_INT_GEN_2_THS = 0x36, REG_INT_GEN_2_DURATION = 0x37,
  REG_CLICK_CFG = 0x38, REG_CLICK_SRC = 0x39, REG_CLICK_THS = 0x3a, REG_TIME_LIMIT = 0x3b,
  REG_TIME_LATENCY = 0x3c, REG_TIME_WINDOW = 0x3d, REG_ACT_THS = 0x3e, REG_ACT_DUR = 0x3f
}

enum  STATUS_REG_M_BITS_T {
  STATUS_REG_M_XMDA = 0x01, STATUS_REG_M_YMDA = 0x02, STATUS_REG_M_ZMDA = 0x04, STATUS_REG_M_ZYXMDA = 0x08,
  STATUS_REG_M_XMOR = 0x10, STATUS_REG_M_YMOR = 0x20, STATUS_REG_M_ZMOR = 0x40, STATUS_REG_M_ZYXMOR = 0x80
}

enum  INT_CTRL_REG_M_BITS_T {
  INT_CTRL_REG_M_MIEN = 0x01, INT_CTRL_REG_M_4D = 0x02, INT_CTRL_REG_M_IEL = 0x04, INT_CTRL_REG_M_IEA = 0x08,
  INT_CTRL_REG_M_PP_OD = 0x10, INT_CTRL_REG_M_ZMIEN = 0x20, INT_CTRL_REG_M_YMIEN = 0x40, INT_CTRL_REG_M_XMIEN = 0x80
}

enum  INT_SRC_REG_M_BITS_T {
  INT_SRC_REG_M_MINT = 0x01, INT_SRC_REG_M_MROI = 0x02, INT_SRC_REG_M_NTH_Z = 0x04, INT_SRC_REG_M_NTH_Y = 0x08,
  INT_SRC_REG_M_NTH_X = 0x10, INT_SRC_REG_M_PTH_Z = 0x20, INT_SRC_REG_M_PTH_Y = 0x40, INT_SRC_REG_M_PTH_X = 0x80
}

enum  CTRL_REG0_XM_BITS_T {
  CTRL_REG0_XM_HPIS2 = 0x01, CTRL_REG0_XM_HPIS1 = 0x02, CTRL_REG0_XM_HP_CLICK = 0x04, CTRL_REG0_XM_WTM_LEN = 0x20,
  CTRL_REG0_XM_FIFO_EN = 0x40, CTRL_REG0_XM_BOOT = 0x80
}

enum  CTRL_REG1_XM_BITS_T {
  CTRL_REG1_XM_AXEN = 0x01, CTRL_REG1_XM_AYEN = 0x02, CTRL_REG1_XM_AZEN = 0x03, CTRL_REG1_XM_BDU = 0x04,
  CTRL_REG1_XM_AODR0 = 0x10, CTRL_REG1_XM_AODR1 = 0x20, CTRL_REG1_XM_AODR2 = 0x40, CTRL_REG1_XM_AODR3 = 0x80,
  _CTRL_REG1_XM_AODR_MASK = 15, _CTRL_REG1_XM_AODR_SHIFT = 4
}

enum  XM_AODR_T {
  XM_AODR_PWRDWN = 0, XM_AODR_3_125 = 1, XM_AODR_6_25 = 2, XM_AODR_12_5 = 3,
  XM_AODR_25 = 4, XM_AODR_50 = 5, XM_AODR_100 = 6, XM_AODR_200 = 7,
  XM_AODR_400 = 8, XM_AODR_800 = 9, XM_AODR_1000 = 10
}

enum  CTRL_REG2_XM_BITS_T {
  CTRL_REG2_XM_SIM = 0x01, CTRL_REG2_XM_AST0 = 0x02, CTRL_REG2_XM_AST1 = 0x04, _CTRL_REG2_XM_AST_MASK = 3,
  _CTRL_REG2_XM_AST_SHIFT = 1, CTRL_REG2_XM_AFS0 = 0x08, CTRL_REG2_XM_AFS1 = 0x10, CTRL_REG2_XM_AFS2 = 0x20,
  _CTRL_REG2_XM_AFS_MASK = 7, _CTRL_REG2_XM_AFS_SHIFT = 3, CTRL_REG2_XM_ABW0 = 0x40, CTRL_REG2_XM_ABW1 = 0x80,
  _CTRL_REG2_XM_ABW_MASK = 3, _CTRL_REG2_XM_ABW_SHIFT = 6
}

enum  XM_AST_T { XM_AST_NORMAL = 0, XM_AST_POS_SIGN = 1, XM_AST_NEG_SIGN = 2 }

enum  XM_AFS_T {
  XM_AFS_2 = 0, XM_AFS_4 = 1, XM_AFS_6 = 2, XM_AFS_8 = 3,
  XM_AFS_16 = 4
}

enum  XM_ABW_T { XM_ABW_773 = 0, XM_ABW_194 = 1, XM_ABW_362 = 2, XM_ABW_50 = 3 }

enum  CTRL_REG3_XM_BITS_T {
  CTRL_REG3_XM_P1_EMPTY = 0x01, CTRL_REG3_XM_P1_DRDYM = 0x02, CTRL_REG3_XM_P1_DRDYA = 0x04, CTRL_REG3_XM_P1_INTM = 0x08,
  CTRL_REG3_XM_P1_INT2 = 0x10, CTRL_REG3_XM_P1_INT1 = 0x20, CTRL_REG3_XM_P1_TAP = 0x40, CTRL_REG3_XM_P1_BOOT = 0x80
}

enum  CTRL_REG4_XM_BITS_T {
  CTRL_REG4_XM_P2_WTM = 0x01, CTRL_REG4_XM_P2_OVERRUN = 0x02, CTRL_REG4_XM_P2_DRDYM = 0x04, CTRL_REG4_XM_P2_DRDYA = 0x08,
  CTRL_REG4_XM_P2_INTM = 0x10, CTRL_REG4_XM_P2_INT2 = 0x20, CTRL_REG4_XM_P2_INT1 = 0x40, CTRL_REG4_XM_P2_TAP = 0x80
}

enum  CTRL_REG5_XM_BITS_T {
  CTRL_REG5_XM_LIR1 = 0x01, CTRL_REG5_XM_LIR2 = 0x02, CTRL_REG5_XM_ODR0 = 0x04, CTRL_REG5_XM_ODR1 = 0x08,
  CTRL_REG5_XM_ODR2 = 0x10, _CTRL_REG5_XM_ODR_MASK = 7, _CTRL_REG5_XM_ODR_SHIFT = 2, CTRL_REG5_XM_RES0 = 0x20,
  CTRL_REG5_XM_RES1 = 0x40, _CTRL_REG5_XM_RES_MASK = 3, _CTRL_REG5_XM_RES_SHIFT = 5, CTRL_REG5_XM_TEMP_EN = 0x80
}

enum  XM_ODR_T {
  XM_ODR_3_125 = 0, XM_ODR_6_25 = 1, XM_ODR_12_5 = 2, XM_ODR_25 = 3,
  XM_ODR_50 = 4, XM_ODR_100 = 5
}

enum  XM_RES_T { XM_RES_LOW = 0, XM_RES_HIGH = 3 }

enum  CTRL_REG6_XM_BITS_T { CTRL_REG6_XM_MFS0 = 0x20, CTRL_REG6_XM_MFS1 = 0x40, _CTRL_REG6_XM_MFS_MASK = 3, _CTRL_REG6_XM_MFS_SHIFT = 5 }

enum  XM_MFS_T { XM_MFS_2 = 0, XM_MFS_4 = 1, XM_MFS_8 = 2, XM_MFS_12 = 3 }

enum  CTRL_REG7_XM_BITS_T {
  CTRL_REG7_XM_MD0 = 0x01, CTRL_REG7_XM_MD1 = 0x02, _CTRL_REG7_XM_MD_MASK = 3, _CTRL_REG7_XM_MD_SHIFT = 0,
  CTRL_REG7_XM_MLP = 0x04, CTRL_REG7_XM_AFDS = 0x20, CTRL_REG7_XM_AHPM0 = 0x40, CTRL_REG7_XM_AHPM1 = 0x80,
  _CTRL_REG7_XM_AHPM_MASK = 3, _CTRL_REG7_XM_AHPM_SHIFT = 6
}

enum  XM_MD_T { XM_MD_CONTINUOUS = 0, XM_MD_SINGLE = 1, XM_MD_POWERDOWN = 2 }

enum  XM_AHPM_T { XM_AHPM_NORMAL_REF = 0, XM_AHPM_REFERENCE = 1, XM_AHPM_NORMAL = 2, XM_AHPM_AUTORESET = 3 }

enum  STATUS_REG_A_BITS_T {
  STATUS_REG_A_XADA = 0x01, STATUS_REG_A_YADA = 0x02, STATUS_REG_A_ZADA = 0x04, STATUS_REG_A_ZYXADA = 0x08,
  STATUS_REG_A_XAOR = 0x10, STATUS_REG_A_YAOR = 0x20, STATUS_REG_A_ZAOR = 0x40, STATUS_REG_A_ZYXAOR = 0x80
}

enum  FIFO_CTRL_REG_T {
  FIFO_CTRL_REG_FTH0 = 0x01, FIFO_CTRL_REG_FTH1 = 0x02, FIFO_CTRL_REG_FTH2 = 0x04, FIFO_CTRL_REG_FTH3 = 0x08,
  FIFO_CTRL_REG_FTH4 = 0x10, _FIFO_CTRL_REG_FTH_MASK = 31, _FIFO_CTRL_REG_FTH_SHIFT = 0, FIFO_CTRL_REG_FM0 = 0x20,
  FIFO_CTRL_REG_FM1 = 0x40, FIFO_CTRL_REG_FM2 = 0x80, _FIFO_CTRL_REG_FM_MASK = 7, _FIFO_CTRL_REG_FM_SHIFT = 5
}

enum  FM_T {
  FM_BYPASS = 0, FM_FIFO = 1, FM_STREAM = 2, FM_STREAM2FIFO = 3,
  FM_BYPASS2STREAM = 4
}

enum  FIFO_SRC_REG_BITS_T {
  FIFO_CTRL_REG_FSS0 = 0x01, FIFO_CTRL_REG_FSS1 = 0x02, FIFO_CTRL_REG_FSS2 = 0x04, FIFO_CTRL_REG_FSS3 = 0x08,
  FIFO_CTRL_REG_FSS4 = 0x10, _FIFO_CTRL_REG_FSS_MASK = 31, _FIFO_CTRL_REG_FSS_SHIFT = 0, FIFO_CTRL_REG_EMPTY = 0x20,
  FIFO_CTRL_REG_OVRN = 0x40, FIFO_CTRL_REG_WTM = 0x80
}

enum  INT_GEN_X_REG_BITS_T {
  INT_GEN_X_REG_XLIE_XDOWNE = 0x01, INT_GEN_X_REG_XHIE_XUPE = 0x02, INT_GEN_X_REG_YLIE_YDOWNE = 0x04, INT_GEN_X_REG_YHIE_YUPE = 0x08,
  INT_GEN_X_REG_ZLIE_ZDOWNE = 0x10, INT_GEN_X_REG_ZHIE_ZUPE = 0x20, INT_GEN_X_REG_6D = 0x40, INT_GEN_X_REG_AOI = 0x80
}

enum  INT_GEN_X_SRC_BITS_T {
  INT_GEN_X_SRC_XL = 0x01, INT_GEN_X_SRC_XH = 0x02, INT_GEN_X_SRC_YL = 0x04, INT_GEN_X_SRC_YH = 0x08,
  INT_GEN_X_SRC_ZL = 0x10, INT_GEN_X_SRC_ZH = 0x20, INT_GEN_X_SRC_IA = 0x40
}

enum  INT_GEN_X_THS_BITS_T {
  INT_GEN_X_THS0 = 0x01, INT_GEN_X_THS1 = 0x02, INT_GEN_X_THS2 = 0x04, INT_GEN_X_THS3 = 0x08,
  INT_GEN_X_THS4 = 0x10, INT_GEN_X_THS5 = 0x20, INT_GEN_X_THS6 = 0x40, _INT_GEN_X_THS_MASK = 127,
  _INT_GEN_X_THS_SHIFT = 0
}

enum  INT_GEN_X_DUR_BITS_T {
  INT_GEN_X_DUR0 = 0x01, INT_GEN_X_DUR1 = 0x02, INT_GEN_X_DUR2 = 0x04, INT_GEN_X_DUR3 = 0x08,
  INT_GEN_X_DUR4 = 0x10, INT_GEN_X_DUR5 = 0x20, INT_GEN_X_DUR6 = 0x40, _INT_GEN_X_DUR_MASK = 127,
  _INT_GEN_X_DUR_SHIFT = 0
}

enum  CLICK_CONFIG_BITS_T {
  CLICK_CONFIG_XS = 0x01, CLICK_CONFIG_XD = 0x02, CLICK_CONFIG_YS = 0x04, CLICK_CONFIG_YD = 0x08,
  CLICK_CONFIG_ZS = 0x10, CLICK_CONFIG_ZD = 0x20
}

enum  CLICK_SRC_BITS_T {
  CLICK_SRC_X = 0x01, CLICK_SRC_Y = 0x02, CLICK_SRC_Z = 0x04, CLICK_SRC_SIGN = 0x08,
  CLICK_SRC_SCLICK = 0x10, CLICK_SRC_DCLICK = 0x20, CLICK_SRC_IA = 0x40
}

enum  CLICK_THS_BITS_T {
  CLICK_THS_THS0 = 0x01, CLICK_THS_THS1 = 0x02, CLICK_THS_THS2 = 0x04, CLICK_THS_THS3 = 0x08,
  CLICK_THS_THS4 = 0x10, CLICK_THS_THS5 = 0x20, CLICK_THS_THS6 = 0x40, _CLICK_THS_THS_MASK = 127,
  _CLICK_THS_THS_SHIFT = 0
}

enum  CLICK_TIME_LIMIT_BITS_T {
  CLICK_TIME_LIMIT_TLI0 = 0x01, CLICK_TIME_LIMIT_TLI1 = 0x02, CLICK_TIME_LIMIT_TLI2 = 0x04, CLICK_TIME_LIMIT_TLI3 = 0x08,
  CLICK_TIME_LIMIT_TLI4 = 0x10, CLICK_TIME_LIMIT_TLI5 = 0x20, CLICK_TIME_LIMIT_TLI6 = 0x40, _CLICK_TIME_LIMIT_TLI_MASK = 127,
  _CLICK_TIME_LIMIT_TLI_SHIFT = 0
}

enum  ACT_THS_BITS_T {
  ACT_THS_ACTH0 = 0x01, ACT_THS_ACTH1 = 0x02, ACT_THS_ACTH2 = 0x04, ACT_THS_ACTH3 = 0x08,
  ACT_THS_ACTH4 = 0x10, ACT_THS_ACTH5 = 0x20, ACT_THS_ACTH6 = 0x40, _ACT_THS_ACTH_MASK = 127,
  _ACT_THS_ACTH_SHIFT = 0
}

enum  DEVICE_T { DEV_GYRO, DEV_XM }

enum  INTERRUPT_PINS_T { INTERRUPT_G_INT, INTERRUPT_G_DRDY, INTERRUPT_XM_GEN1, INTERRUPT_XM_GEN2 }


Detailed Description

Enumeration Type Documentation

enum REG_G_T

LSM9DS0 Gyroscope (G) registers

enum CTRL_REG1_G_BITS_T

Gyro CTRL_REG1_G bits

enum G_ODR_T

CRTL_REG1_G_ODR values

enum CTRL_REG2_G_BITS_T

Gyro CTRL_REG2_G bits

enum G_HPCF_T

CRTL_REG2_G_HPCF values

See table 26 in the datasheet, as these depend on your data rate (ODR). We will label these according to the 95Hz column, but of course the actual cutoff frequency depends on ODR.

enum G_HPM_T

CRTL_REG2_G_HPM values

enum CTRL_REG3_G_BITS_T

Gyro CTRL_REG3_G bits (interrupt G config)

enum CTRL_REG4_G_BITS_T

Gyro CTRL_REG4_G bits

enum G_ST_T

CRTL_REG4_G_ST values

enum G_FS_T

CRTL_REG4_G_FS values

enum CTRL_REG5_G_BITS_T

Gyro CTRL_REG5_G bits

enum G_INT1OUTSEL_T

CRTL_REG5_G_OUTSEL and INT1SEL values. See Figure 18 in the datasheet.

enum STATUS_REG_G_BITS_T

Gyro STATUS_REG_G bits

enum FIFO_CTRL_REG_G_T

Gyro FIFO_CTRL_REG_G bits

enum G_FM_T

FIFO_CTRL_REG_G_FM values (FIFO Modes)

enum FIFO_SRC_REG_G_BITS_T

FIFO_SRC_REG_G bits

enum INT1_CFG_G_BITS_T

INT1_CFG_G bits

enum INT1_SRC_G_BITS_T

INT1_SRC_G bits

enum REG_XM_T

LSM9DS0 Accelerometer (X) and Magnetometer (M) registers

enum STATUS_REG_M_BITS_T

XM STATUS_REG_M bits

enum INT_CTRL_REG_M_BITS_T

INT_CTRL_REG_M bits

enum INT_SRC_REG_M_BITS_T

INT_SRC_REG_M bits

enum CTRL_REG0_XM_BITS_T

CTRL_REG0_XM bits

enum CTRL_REG1_XM_BITS_T

CTRL_REG1_XM bits

enum XM_AODR_T

CTRL_REG1_XM_AODR values

enum CTRL_REG2_XM_BITS_T

CTRL_REG2_XM bits

enum XM_AST_T

CTRL_REG2_XM_AST values

enum XM_AFS_T

CTRL_REG2_XM_AFS (accel full scale) values

enum XM_ABW_T

CTRL_REG2_XM_ABW (accel anti-alias filter bandwidth) values

enum CTRL_REG3_XM_BITS_T

CTRL_REG3_XM bits

enum CTRL_REG4_XM_BITS_T

CTRL_REG4_XM bits

enum CTRL_REG5_XM_BITS_T

CTRL_REG5_XM bits

enum XM_ODR_T

CTRL_REG5_XM_ODR (magnetometer output data rate) values

enum XM_RES_T

CTRL_REG5_XM_RES (magnetometer resolution) values

enum CTRL_REG6_XM_BITS_T

CTRL_REG6_XM bits

enum XM_MFS_T

CTRL_REG6_XM_MFS (magnetometer full scale) values

enum CTRL_REG7_XM_BITS_T

CTRL_REG7_XM bits

enum XM_MD_T

CTRL_REG7_XM_MD (magnetometer sensor mode) values

enum XM_AHPM_T

CTRL_REG7_AHPM_MD (accel high-pass filter mode) values

enum STATUS_REG_A_BITS_T

XM STATUS_REG_A bits

enum FIFO_CTRL_REG_T

XM FIFO_CTRL_REG bits

enum FM_T

XM FIFO_CTRL_REG_FM values (FIFO Modes)

enum FIFO_SRC_REG_BITS_T

FIFO_SRC_REG bits

enum INT_GEN_X_REG_BITS_T

INT_GEN_1_REG and INT_GEN_2_REG (GEN_X) bits

enum INT_GEN_X_SRC_BITS_T

INT_GEN_1_SRC and INT_GEN_2_SRC (GEN_X) bits

enum INT_GEN_X_THS_BITS_T

INT_GEN_1_THS and INT_GEN_2_THS (GEN_X) bits

enum INT_GEN_X_DUR_BITS_T

INT_GEN_1_DUR and INT_GEN_2_DUR (GEN_X) bits

enum CLICK_CONFIG_BITS_T

CLICK_CONFIG bits

enum CLICK_SRC_BITS_T

CLICK_SRC bits

enum CLICK_THS_BITS_T

CLICK_THS bits

enum CLICK_TIME_LIMIT_BITS_T

CLICK_TIME_LIMIT bits

enum ACT_THS_BITS_T

ACT_THS (sleep-to-wake/return-to-sleep activation threshold) bits

Collaboration diagram for libupm-lsm9ds0:
Generated on Tue Sep 29 2015 15:51:26 for upm by   doxygen 1.8.9.1
