A110X Class Reference

API for the A110X Hall Effect sensors. More...

Detailed Description

• ID: a110x
• Name: A110X Hall Effect Sensor
• Other Names: Grove Hall Sensor
• Other Chips: A1101, A1102, A1103, A1004, A1106
• Category: electric
• Manufacturer: seeed
• Link: http://www.allegromicro.com/en/Products/Magnetic-Digital-Position-Sensor-ICs/Hall-Effect-Unipolar-Switches/A1101-2-3-4-6.aspx
• Connection: gpio
• Kit: robok

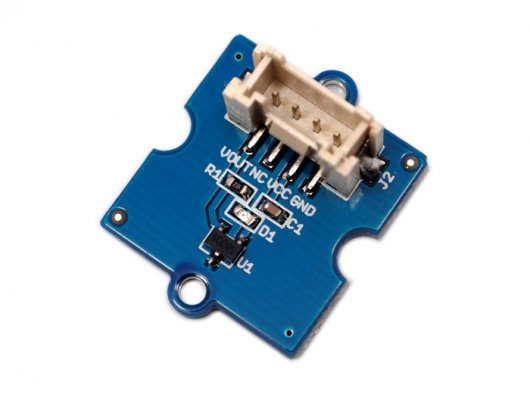

UPM module for the A110X (A1101, A1102, A1103, A1104, and A1106) Hall Effect sensors. It outputs a digital signal indicating whether it is detecting a magnetic field with south polarity perpendicular to the sensor element.

An example showing a simple test for the presence of a field

        // Instantiate an A110X sensor on digital pin D2
        upm_a110x.A110X hall = new upm_a110x.A110X(2);

        // check every second for the presence of a magnetic field (south polarity)
        while(true){
            if(hall.magnetDetected())
                System.out.println("Magnet (south polarity) detected.");
            else
                System.out.println("No magnet detected.");

            Thread.sleep(1000);
        }

An example demonstrating the use of an interrupt handler to count pulses

        // Instantiate an A110X sensor on digital pin D2
        upm_a110x.A110X hall = new upm_a110x.A110X(2);

        // This example uses a user-supplied interrupt handler to count
        // pulses that occur when a magnetic field of the correct polarity
        // is detected.  This could be used to measure the rotations per
        // minute (RPM) of a rotor for example.

        IsrCallback callback = new A110XISR();
        hall.installISR(callback);

        while(true){
            System.out.println("Counter: " + counter);
            Thread.sleep(1000);
        }

Public Member Functions
synchronized void	delete ()
	A110X (int pin)
boolean	magnetDetected ()
void	installISR (IsrCallback cb)
void	uninstallISR ()

Constructor & Destructor Documentation

A110X

(

int

pin

)

A110x digital sensor constructor

Parameters

pin	Digital pin to use

Member Function Documentation

void installISR

(

IsrCallback

cb

)

Installs an interrupt service routine (ISR) to be called when the appropriate magnetic field is detected

Parameters

fptr	Pointer to a function to be called on interrupt
arg	Pointer to an object to be supplied as an argument to the ISR.

boolean magnetDetected

(

)

Determines whether a magnetic field of south polarity has been detected

Returns

True if magnetic field detected

void uninstallISR

(

)

Uninstalls the previously installed ISR

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/a110x/A110X.java
