AM2315 Class Reference

API for the AM2315 Temperature & Humidity Sensor. More...

Detailed Description

• ID: am2315
• Name: AM2315 Temperature & Humidity Sensor
• Category: temp
• Manufacturer: adafruit
• Link: http://www.adafruit.com/products/1293
• Connection: i2c

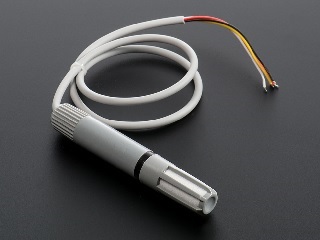

AM2315 by Measurement Specialties (http://www.aosong.com/asp_bin/Products/en/AM2315.pdf) is a digital humidity sensor with temperature output. RH reports between 0 and 100%, and the temperature range is -40 to +125 degC. The sampling period of this sensor is 2 seconds. Reads occurring more often than that return cached data.

Public Member Functions
synchronized void	delete ()
	AM2315 (int bus, int devAddr)
	AM2315 (int bus)
float	getHumidity ()
float	getTemperature ()
float	getTemperatureF ()
int	testSensor ()
int	i2cWriteReg_32 (int reg, long ival)
int	i2cWriteReg_16 (int reg, int ival)
int	i2cWriteReg_8 (int reg, short ival)
long	i2cReadReg_32 (int reg)
int	i2cReadReg_16 (int reg)
short	i2cReadReg_8 (int reg)

Constructor & Destructor Documentation

AM2315	(	int	bus,
		int	devAddr
	)

Instantiates an AM2315 object

Parameters

bus	Number of the used bus
devAddr	Address of the used I2C device
mode	AM2315 oversampling

Member Function Documentation

int i2cReadReg_16

(

int

reg

)

Reads a two-byte register

Parameters

reg	Address of the register

long i2cReadReg_32

(

int

reg

)

Reads a four-byte register

Parameters

reg	Address of the register

short i2cReadReg_8

(

int

reg

)

Reads a one-byte register

Parameters

reg	Address of the register

int i2cWriteReg_16	(	int	reg,
		int	ival
	)

Writes a two-byte (16b) register

Parameters

reg	Address of the register
ival	16b value

int i2cWriteReg_32	(	int	reg,
		long	ival
	)

Writes a four-byte (32b) register

Note: these access routines are not the normal accesses to an I2C device. AM2315 contains a microcontroller that manages the actual readings. These handlers then make requests over I2C using a protocol defined by AM2315.

Parameters

reg	Address of the register
ival	32b value

int i2cWriteReg_8	(	int	reg,
		short	ival
	)

Writes a one-byte (8b) register

Parameters

reg	Address of the register
ival	8b value

---

The documentation for this class was generated from the following file:
