BISS0001 Class Reference

API for the BISS0001 Motion Sensor. More...

Detailed Description

• ID: biss0001

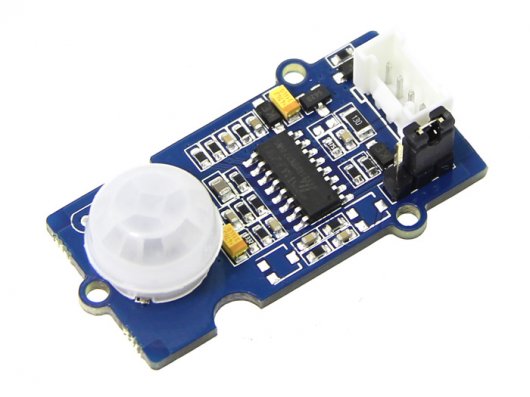

• Name: BISS0001 Motion Sensor
• Other Names: Grove PIR Motion Sensor
• Category: light
• Manufacturer: seeed
• Link: http://www.seeedstudio.com/depot/Grove-PIR-Motion-Sensor-p-802.html
• Connection: gpio
• Kit: tsk

UPM module for the BISS0001 Motion Sensor

        // Instantiate a Grove Motion sensor on GPIO pin D7
        upm_biss0001.BISS0001 motion = new upm_biss0001.BISS0001(7);

        while (true) {
            boolean value = motion.value();

            if(value)
                System.out.println("Detecting moving object");
            else
                System.out.println("No moving objects detected");

            Thread.sleep(1000);
        }

Public Member Functions
synchronized void	delete ()
	BISS0001 (int pin)
boolean	value ()

Constructor & Destructor Documentation

BISS0001

(

int

pin

)

BISS0001 motion sensor constructor

Parameters

pin	Digital pin to use

Member Function Documentation

boolean value

(

)

Gets the motion value from the sensor

Returns

Motion reading

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/biss0001/BISS0001.java
