CJQ4435 Class Reference

API for the CJQ4435 MOSFET. More...

Detailed Description

• ID: cjq4435
• Name: Grove MOSFET
• Other Names: CJQ4435
• Category: electric
• Manufacturer: seeed
• Connection: gpio pwm
• Kit: robok

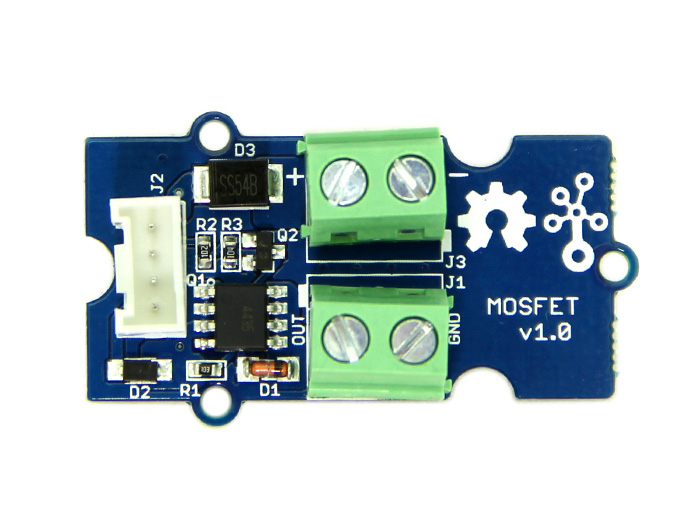

UPM module for the CJQ4435 MOSFET. It was developed using the Grove MOSFET module. A MOSFET is like a switch, but it can switch much faster than a mechanical relay. Here, we implement support via MRAA pulse width modulation (PWM) functions. Note: available periods vary depending on the capabilities of your device.

Public Member Functions
synchronized void	delete ()
	CJQ4435 (int pin)
void	setPeriodUS (int us)
void	setPeriodMS (int ms)
void	setPeriodSeconds (float seconds)
void	enable (boolean enable)
void	setDutyCycle (float dutyCycle)
void	on ()
void	off ()

Constructor & Destructor Documentation

CJQ4435

(

int

pin

)

CJQ4435 constructor

Parameters

pin	Digital pin to use; this pin must be PWM-capable

Member Function Documentation

void enable

(

boolean

enable

)

Enables output

Parameters

enable

Enables PWM output if true, disables otherwise

void off

(

)

Shortcut to turn the output to continuous off (low)

void on

(

)

Shortcut to turn the output to continuous on (high)

void setDutyCycle

(

float

dutyCycle

)

Sets a duty cycle. Duty cycle is a floating-point number between 0.0 (always off) and 1.0 (always on). It represents a proportion of time, per period, during which the output is driven high.

Parameters

dutyCycle

Duty cycle to use

void setPeriodMS

(

int

ms

)

Sets a period in milliseconds

Parameters

ms	Period in milliseconds

void setPeriodSeconds

(

float

seconds

)

Sets a period in seconds

Parameters

seconds

Period in seconds

void setPeriodUS

(

int

us

)

Sets a period in microseconds

Parameters

us	Period in microseconds

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/cjq4435/CJQ4435.java
