ECS1030 Class Reference

API for the ECS1030 Non-Invasive Current/Electricity Sensor. More...

Detailed Description

• ID: ecs1030
• Name: ECS1030 Non-Invasive Current Sensor
• Category: electric
• Manufacturer: sparkfun
• Link: https://www.sparkfun.com/products/11005
• Connection: analog

This non-invasive current sensor can be clamped around the supply line of an electrical load to tell you how much current is passing through it. It does this by acting as an inductor and responding to the magnetic field around a current-carrying conductor. This particular current sensor measures a load up to 30 A, which makes it great for building your own energy monitors.

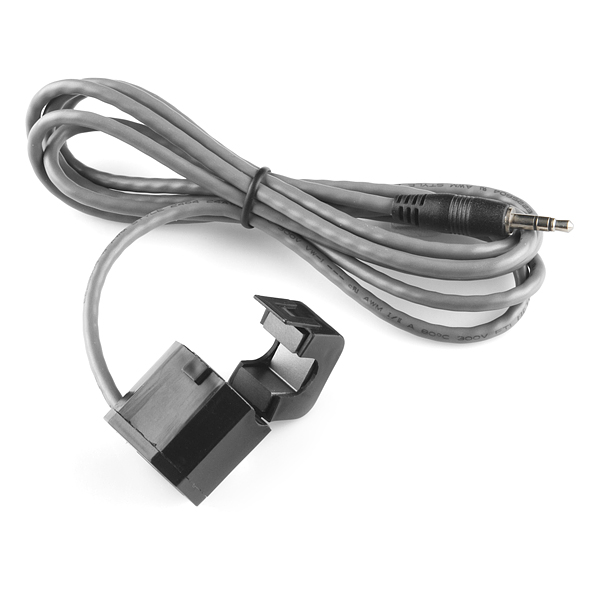

ECS1030 Sensor image provided by SparkFun* under CC BY-NC-SA-3.0.

Public Member Functions
synchronized void	delete ()
	ECS1030 (short pinNumber)
double	getCurrency_A ()
double	getPower_A ()
double	getCurrency_B ()
double	getPower_B ()
String	name ()

Static Public Attributes
static final short	DELAY_MS = javaupm_ecs1030JNI.ECS1030_DELAY_MS_get()
static final short	VOLT_M = javaupm_ecs1030JNI.ECS1030_VOLT_M_get()
static final short	R_LOAD = javaupm_ecs1030JNI.ECS1030_R_LOAD_get()

Constructor & Destructor Documentation

ECS1030

(

short

pinNumber

)

Instantiates an ECS1030 object

Parameters

pinNumber

Number of the data pin

Member Function Documentation

double getCurrency_A

(

)

Returns electric current data for a sampled period

double getCurrency_B

(

)

Returns electric current data for a sampled period

double getPower_A

(

)

Returns power data for a sampled period

double getPower_B

(

)

Returns power data for a sampled period

String name

(

)

Returns the name of the component

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/ecs1030/ECS1030.java
