GroveLed Class Reference

API for the Grove LED. More...

Detailed Description

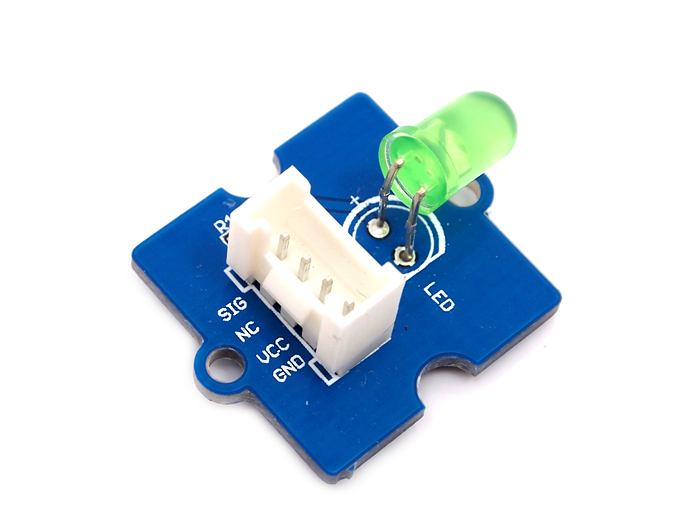

UPM module for the Grove LED (or other similar light-emitting diodes). An LED is a small lightbulb that emits light in response to a small current. The longer wire of an LED connects to the positive seat (anode); the shorter wire connects to the negative seat (cathode). The flat side of the bulb corresponds to the cathode, while the rounded side corresponds to the anode.

        upm_grove.GroveLed led = new upm_grove.GroveLed(2);

        for (int i = 0; i < 10; ++i) {
            led.on();
            Thread.sleep(1000);
            led.off();
            Thread.sleep(1000);
        }
        led.delete();

Public Member Functions
synchronized void	delete ()
	GroveLed (int pin)
int	write (int value)
int	off ()
int	on ()
Public Member Functions inherited from Grove
synchronized void	delete ()
String	name ()

Constructor & Destructor Documentation

GroveLed

(

int

pin

)

Grove LED constructor

Parameters

gpio	Pin to use

Member Function Documentation

int off

(

)

Turns the LED off

Returns

0 if successful, non-zero otherwise

int on

(

)

Turns the LED on

Returns

0 if successful, non-zero otherwise

int write

(

int

value

)

Turns the LED on or off, depending on the value. If the value is positive (greater than or equal to 1), the LED is turned on. Otherwise, for 0 or negative values, the LED is turned off.

Parameters

value

Tells the LED to turn on (for values >=1) or off (for values <1)

Returns

0 if successful, non-zero otherwise

Inheritance diagram for GroveLed:

Collaboration diagram for GroveLed:

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/grove/GroveLed.java
