GroveEHR Class Reference

API for the Grove Ear-clip Heart Rate Sensor. More...

Detailed Description

• ID: groveehr

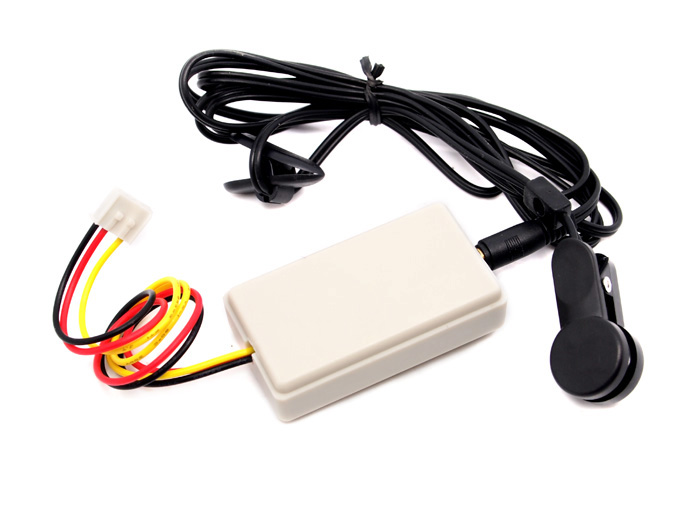

• Name: Grove Ear-clip Heart Rate Sensor
• Category: medical
• Manufacturer: seeed
• Connection: gpio

UPM module for the Grove ear-clip heart rate sensor. It is used to measure your heart rate.

        // Instantiate a Grove Ear-clip Heart Rate sensor on digital pin D2
        upm_groveehr.GroveEHR heart = new upm_groveehr.GroveEHR(2);

        // set the beat counter to 0, init the clock and start counting beats
        heart.clearBeatCounter();
        heart.initClock();
        heart.startBeatCounter();

        while (true) {
            long millis = heart.getMillis();
            long beats = heart.beatCounter();

            // heartRate() requires that at least 5 seconds pass before
            // returning anything other than 0
            int hr = heart.heartRate();

            // output milliseconds passed, beat count, and computed heart rate
            System.out.println("Millis: " + millis + ", Beats: " + beats + ", Heart rate: " + hr);

            Thread.sleep(1000);
        }

Public Member Functions
synchronized void	delete ()
	GroveEHR (int pin)
long	getMillis ()
void	initClock ()
void	clearBeatCounter ()
void	startBeatCounter ()
void	stopBeatCounter ()
long	beatCounter ()
int	heartRate ()

Constructor & Destructor Documentation

GroveEHR

(

int

pin

)

GroveEHR constructor

Parameters

pin	Digital pin to use

Member Function Documentation

long beatCounter

(

)

Gets the beat Counter

Returns

Beat counter

void clearBeatCounter

(

)

Resets the beat counter to 0. The beat counter should be stopped via stopBeatCounter() prior to calling this function.

long getMillis

(

)

Returns the time of milliseconds elapsed since initClock() was last called.

Returns

Elapsed milliseconds

int heartRate

(

)

Computes the heart rate

Returns

Computed heart rate

void initClock

(

)

Resets the clock

void startBeatCounter

(

)

Starts the beat counter

void stopBeatCounter

(

)

Stops the beat counter

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/groveehr/GroveEHR.java
