GROVESCAM Class Reference

API for the Grove Serial Camera. More...

Detailed Description

• ID: grovescam

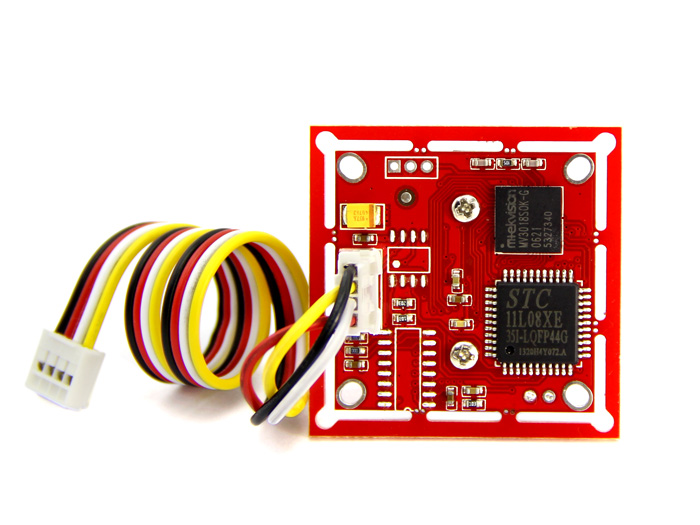

• Name: Grove Serial Camera
• Category: other
• Manufacturer: seeed
• Connection: uart
• Link: http://www.seeedstudio.com/wiki/Grove_-_Serial_Camera_Kit

The driver was tested with the Grove Serial Camera. There is no protocol documentation currently available, so this module was developed based completely on the Seeed Studio* Arduino* sketch.

It is connected via a UART at 115,200 baud.

        // Instantiate a Grove Serial Camera on UART 0
        upm_grovescam.GROVESCAM camera = new upm_grovescam.GROVESCAM(0);

        // make sure port is initialized properly. 115200 baud is the default.
        if (!camera.setupTty()) {
            System.err.println("Failed to setup tty port parameters");
            System.exit(-1);
        }

        if (camera.init())
            System.out.println("Initialized...");
        else
            System.out.println("Initialization failed");

        if (camera.preCapture())
            System.out.println("preCapture succeeded...");
        else
            System.out.println("preCapture failed.");

        if (camera.doCapture())
            System.out.println("doCapture succeeded...");
        else
            System.out.println("doCapture failed.");

        if (camera.getImageSize() > 0) {
            System.out.println("Storing image.jpg...");

            if (camera.storeImage("image.jpg"))
                System.out.println("storeImage succeeded...");
            else
                System.out.println("storeImage failed.");

        }

Classes
class	PIC_FORMATS_T

Public Member Functions
synchronized void	delete ()
	GROVESCAM (int uart, short camAddr)
	GROVESCAM (int uart)
boolean	dataAvailable (long millis)
int	readData (byte[] buffer)
int	writeData (byte[] buffer)
boolean	setupTty (int baud)
boolean	setupTty ()
void	drainInput ()
boolean	init ()
boolean	preCapture (GROVESCAM.PIC_FORMATS_T fmt)
boolean	preCapture ()
boolean	doCapture ()
boolean	storeImage (String fname)
int	getImageSize ()

Static Public Attributes
static final long	MAX_PKT_LEN = javaupm_grovescamJNI.GROVESCAM_MAX_PKT_LEN_get()

Constructor & Destructor Documentation

GROVESCAM	(	int	uart,
		short	camAddr
	)

Grove Serial Camera constructor

Parameters

uart	Default UART to use (0 or 1)
camAddr	3-bit address identifier of the camera; default is 0

Member Function Documentation

boolean dataAvailable

(

long

millis

)

Checks to see if there is data available for reading

Parameters

millis

Number of milliseconds to wait; 0 means no waiting.

Returns

True if there is data available for reading

boolean doCapture

(

)

Starts the capture

Returns

True if successful

void drainInput

(

)

Reads serial input and discards until no more characters are available

int getImageSize

(

)

Returns the picture length. Note: this is only valid after doCapture() has run successfully.

Returns

Image length

boolean init

(

)

Initializes the camera

boolean preCapture

(

GROVESCAM.PIC_FORMATS_T

fmt

)

Tells the camera to prepare for a capture

Parameters

fmt	One of the PIC_FORMATS_T values

boolean setupTty

(

int

baud

)

Sets up proper tty I/O modes and the baud rate. For this device, the default baud rate is 9,600 (B9600).

Parameters

baud	Desired baud rate

Returns

True if successful

boolean storeImage

(

String

fname

)

Stores the captured image in a file

Parameters

fname

Name of the file to write

Returns

True if successful

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/grovescam/GROVESCAM.java
