HM11 Class Reference

API for the HM-11 4.0 Bluetooth Low Energy Module. More...

Detailed Description

• ID: hm11
• Name: HM-11 Bluetooth Low Energy
• Other Names: Grove BLE
• Other Chips: HM-10, HM-12
• Category: wifi
• Manufacturer: seeed
• Connection: uart
• Link: http://www.seeedstudio.com/wiki/images/c/cd/Bluetooth4_en.pdf

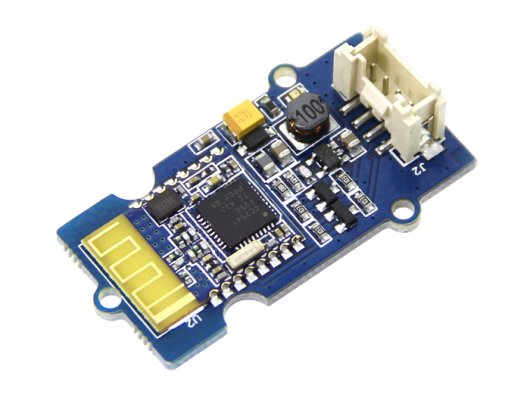

The driver was tested with the Grove BLE module. It's an HM-11 BLE 4.0 module based on a TI CC2541 chip. It operates using a standard 'AT' command set. See the datasheet for a full list of available commands and their possible responses:

http://www.seeedstudio.com/wiki/images/c/cd/Bluetooth4_en.pdf

It is connected via a UART at 9,600 baud.

        // Instantiate a HM11 BLE Module on UART 0
        upm_hm11.HM11 ble = new upm_hm11.HM11(0);

        // make sure port is initialized properly. 9600 baud is the default.
        if (!ble.setupTty()) {
            System.err.println("Failed to setup tty port parameters");
            System.exit(-1);
        }

        printUsage();

        if (args.length > 0) {
            System.out.println("Sending command line argument (" + args[0] + ")...");
            sendCommand(ble, args[0].getBytes());
        } else {
            // query the module address
            String addr = "AT+ADDR?";
            System.out.println("Querying module address (" + addr + ")...");
            sendCommand(ble, addr.getBytes());

            Thread.sleep(1000);

            // query the module address
            String pin = "AT+PASS?";
            System.out.println("Querying module pin (" + pin + ")...");
            sendCommand(ble, pin.getBytes());

            // Other potentially useful commands are:
            //
            // AT+VERS? - query module version
            // AT+ROLE0 - set as slave
            // AT+ROLE1 - set as master
            // AT+CLEAR - clear all previous settings
            // AT+RESET - restart the device
            //
            // A comprehensive list is available from the datasheet at:
            // http://www.seeedstudio.com/wiki/images/c/cd/Bluetooth4_en.pdf

        }

Public Member Functions
synchronized void	delete ()
	HM11 (int uart)
boolean	dataAvailable (long millis)
int	readData (byte[] buffer)
int	writeData (byte[] buffer)
boolean	setupTty (int baud)
boolean	setupTty ()

Constructor & Destructor Documentation

HM11

(

int

uart

)

HM11 object constructor

Parameters

uart	Default UART to use (0 or 1)

Member Function Documentation

boolean dataAvailable

(

long

millis

)

Checks to see if there is data available for reading

Parameters

millis

Number of milliseconds to wait; 0 means no waiting

Returns

True if there is data available for reading

boolean setupTty

(

int

baud

)

Sets up proper tty I/O modes and the baud rate. For this device, the default baud rate is 9,600 (B9600).

Parameters

baud	Desired baud rate.

Returns

True if successful

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/hm11/HM11.java
