HP20X Class Reference

API for the HP20X-based Grove Barometer (High-Accuracy) More...

Detailed Description

• ID: hp20x

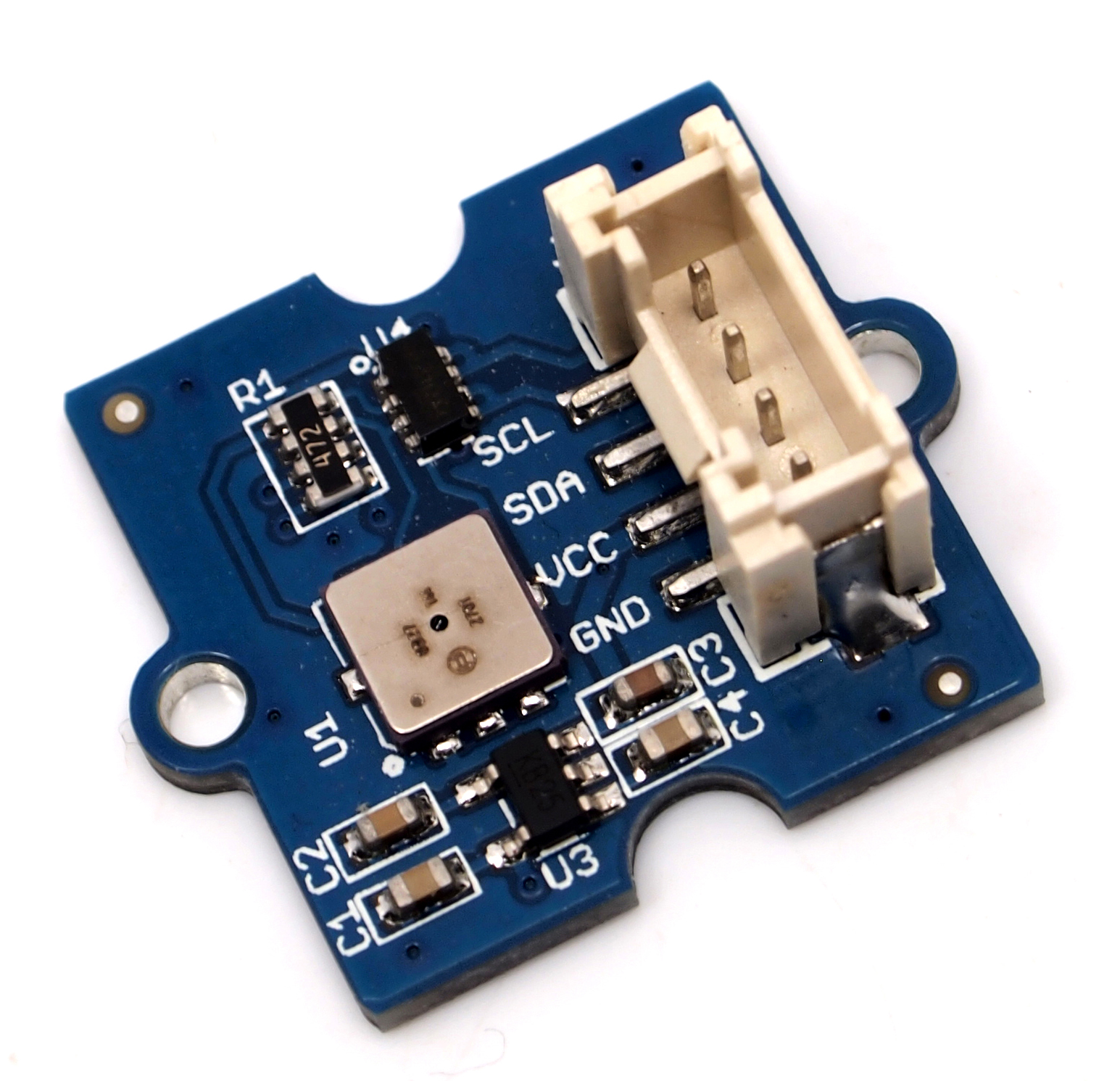

• Name: Grove Barometer (High-Accuracy)
• Other Names: HP20X Barometer (High-Accuracy)
• Category: pressure
• Manufacturer: seeed
• Link: http://www.seeedstudio.com/depot/Grove-Barometer-HighAccuracy-p-1865.html
• Connection: i2c

This is a high-accuracy barometer providing pressure, altitude, and temperature data. It can be calibrated for a given altitude offset, and a wide range of interrupt generating capabilities are supported. As usual, see the HP20X datasheet for more details.

This module was developed using a Grove Barometer (High-Accuracy) based on an HP206C chip.

Classes
class	CHNL_BITS_T
class	DSR_BITS_T
class	HP20X_CMD_T
class	HP20X_REG_T
class	INT_CFG_BITS_T
class	INT_EN_BITS_T
class	INT_SRC_BITS_T
class	PARA_BITS_T

Public Member Functions
synchronized void	delete ()
	HP20X (int bus, short address)
	HP20X (int bus)
boolean	init (HP20X.DSR_BITS_T dsr)
boolean	init ()
boolean	writeCmd (short cmd)
boolean	writeReg (HP20X.HP20X_REG_T reg, short data)
short	readReg (HP20X.HP20X_REG_T reg)
int	readData ()
boolean	isReady ()
boolean	waitforDeviceReady ()
float	getTemperature ()
float	getPressure ()
float	getAltitude ()
void	compensationEnable (boolean enable)
boolean	setInterruptEnable (short bits)
boolean	setInterruptConfig (short bits)
short	getInterruptSource ()
void	setDSR (HP20X.DSR_BITS_T dsr)
void	recalibrateInternal ()
void	softReset ()
void	setAltitudeOffset (short off)
void	setPAThreshholds (short low, short med, short high)
void	setTemperatureThreshholds (byte low, byte med, byte high)

Constructor & Destructor Documentation

HP20X	(	int	bus,
		short	address
	)

HP20X constructor

Parameters

bus	I2C bus to use
address	Address for this device

Member Function Documentation

void compensationEnable

(

boolean

enable

)

Enables or disables the on-chip compensator. This allows the chip to filter and clean up the output data.

Parameters

enable

True to enable, false otherwise

float getAltitude

(

)

Returns the computed altitude in meters

Returns

Altitude

short getInterruptSource

(

)

Gets the interrupt source register. This register indicates which interrupts have been triggered. In addition, it indicates when certain operations have been completed.

Returns

One of more of the INT_SRC_BITS_T values

float getPressure

(

)

Returns the pressure in millibars

Returns

Pressure

float getTemperature

(

)

Returns the temperature in Celsius

Returns

Temperature

boolean init

(

HP20X.DSR_BITS_T

dsr

)

Sets up initial values and starts operation

Parameters

dsr	Data sampling rate; one of the DSR_BITS_T values

Returns

True if successful

boolean isReady

(

)

Checks to see if the DR_RDY bit is set, indicating the device can accept commands

Returns

True if the device is ready, false otherwise

int readData

(

)

Reads 3 bytes of data in response to a conversion request, and converts it to an integer

Returns

Value read back (temperature, pressure, etc.)

short readReg

(

HP20X.HP20X_REG_T

reg

)

Reads a register and returns its value

Parameters

reg	Register to read; one of the HP20X_REG_T values

Returns

Value of a specified register

void recalibrateInternal

(

)

Starts an internal recalibration of analog blocks. This is faster than a soft reset.

void setAltitudeOffset

(

short

off

)

Sets the altitude offset for your region. See the datasheet for more details. Setting this correctly for your region is required for accurate altitude data.

Parameters

off

Offset

void setDSR

(

HP20X.DSR_BITS_T

dsr

)

Sets the data sampling rate. Higher rates are more precise, but take more time per measurement.

Parameters

dsr	One of the DSR_BITS_T values

boolean setInterruptConfig

(

short

bits

)

Sets up the interrupt configuration register. This register defines which events can cause an interrupt to be indicated.

Parameters

bits	One or more of the INT_EN_BITS_T bits

Returns

True if successful, false otherwise

boolean setInterruptEnable

(

short

bits

)

Sets up the interrupt enable register. This register defines which events can cause a hardware interrupt pin to be pulled high (active).

Parameters

bits	One or more of the INT_EN_BITS_T bits

Returns

True if successful, false otherwise

void setPAThreshholds	(	short	low,
		short	med,
		short	high
	)

Sets pressure/altitude thresholds for interrupt generation

Parameters

low	Low threshold to generate an interrupt
med	Medium threshold to generate an interrupt
high	High threshold to generate an interrupt

void setTemperatureThreshholds	(	byte	low,
		byte	med,
		byte	high
	)

Sets temperature thresholds for interrupt generation

Parameters

low	Low threshold to generate an interrupt
med	Medium threshold to generate an interrupt
high	High threshold to generate an interrupt

void softReset

(

)

Executes a soft reset. All register values are reset to power-on defaults. This function returns when the reset is complete and the device reports it is ready.

boolean waitforDeviceReady

(

)

Checks to see if the device is ready, and sleeps/retries if not. Returns once the device indicates it's ready.

Returns

True if the device is ready; false if retries are exhausted

boolean writeCmd

(

short

cmd

)

Sends a command to the device

Parameters

cmd	Command to send; usually, one of the HP20X_CMD_T values

Returns

True if successful

boolean writeReg	(	HP20X.HP20X_REG_T	reg,
		short	data
	)

Writes a value to a register

Parameters

reg	Register to write to; one of the HP20X_REG_T values
data	Value to write

Returns

True if successful

---

The documentation for this class was generated from the following file:
