Lcm1602 Class Reference

API for the LCM1602 I2C controller for HD44780-based displays. More...

Detailed Description

• ID: lcm1602
• Name: LCM1602 Display
• Category: display
• Manufacturer: adafruit sparkfun seeed
• Link: https://www.adafruit.com/datasheets/TC1602A-01T.pdf
• Connection: i2c gpio

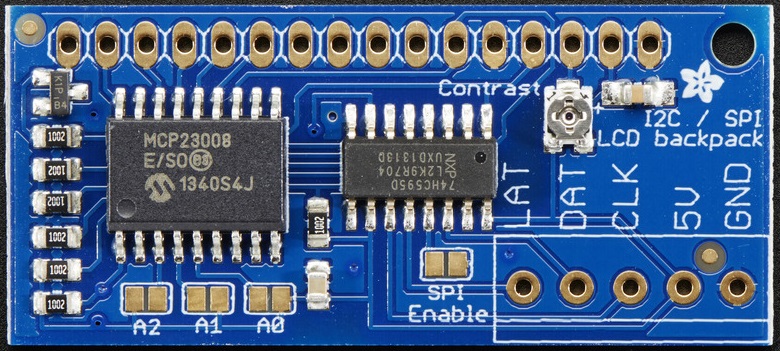

This supports all sizes of HD44780 displays, from 16x2 to 4x20. The controller has no idea of the actual display hardware, so it lets you write farther than you can see. These displays with such controllers are available from various manufacturers with different I2C addresses. Adafruit* TC1602A-01T seems to be a well-documented example. The driver also supports parallel GPIO connections directly to the HD44780 in case you are not using an I2C expander/backpack.

Public Member Functions
synchronized void	delete ()
	Lcm1602 (int bus, int address, boolean isExpander, short numColumns, short numRows)
	Lcm1602 (int bus, int address, boolean isExpander, short numColumns)
	Lcm1602 (int bus, int address, boolean isExpander)
	Lcm1602 (int bus, int address)
	Lcm1602 (short rs, short enable, short d0, short d1, short d2, short d3, short numColumns, short numRows)
	Lcm1602 (short rs, short enable, short d0, short d1, short d2, short d3, short numColumns)
	Lcm1602 (short rs, short enable, short d0, short d1, short d2, short d3)
int	write (String msg)
int	setCursor (int row, int column)
int	clear ()
int	home ()
int	createChar (short charSlot, byte[] charData)
int	displayOn ()
int	displayOff ()
int	cursorOn ()
int	cursorOff ()
int	cursorBlinkOn ()
int	cursorBlinkOff ()
int	scrollDisplayLeft ()
int	scrollDisplayRight ()
int	entryLeftToRight ()
int	entryRightToLeft ()
int	autoscrollOn ()
int	autoscrollOff ()
Public Member Functions inherited from LCD
synchronized void	delete ()
int	write (int x, int y, String msg)
int	write (String msg)
int	setCursor (int row, int column)
int	clear ()
int	home ()
String	name ()

Constructor & Destructor Documentation

Lcm1602	(	int	bus,
		int	address,
		boolean	isExpander,
		short	numColumns,
		short	numRows
	)

Lcm1602 constructor; calls libmraa initialisation functions

Parameters

bus	I2C bus to use
address	Slave address the LCD is registered on
isExpander	True if we are dealing with an I2C expander, false otherwise. Default is true.

Lcm1602	(	short	rs,
		short	enable,
		short	d0,
		short	d1,
		short	d2,
		short	d3,
		short	numColumns,
		short	numRows
	)

Lcm1602 alternate constructor, used for GPIO based HD44780 controllers supporting RS, Enable, and 4 data pins in 4-bit mode.

Parameters

rs	Register select pin
enable	Enable pin
d0	Data 0 pin
d1	Data 1 pin
d2	Data 2 pin
d3	Data 3 pin

Member Function Documentation

int autoscrollOff

(

)

Left justify text entered from the cursor

Returns

Result of operation

int autoscrollOn

(

)

Right justify text entered from the cursor

Returns

Result of operation

int clear

(

)

Clears the display of all characters

Returns

Result of the operation

int createChar	(	short	charSlot,
		byte[]	charData
	)

Create a custom character

Parameters

charSlot	the character slot to write, only 8 are available
charData	The character data (8 bytes) making up the character

Returns

Result of operation

int cursorBlinkOff

(

)

Turn cursor blink off

Returns

Result of operation

int cursorBlinkOn

(

)

Turn cursor blink on

Returns

Result of operation

int cursorOff

(

)

Turn the cursor off

Returns

Result of operation

int cursorOn

(

)

Turn the cursor on

Returns

Result of operation

int displayOff

(

)

Turn the display off

Returns

Result of operation

int displayOn

(

)

Turn the display on

Returns

Result of operation

int entryLeftToRight

(

)

set the entry mode so that characters are added left to right

Returns

Result of operation

int entryRightToLeft

(

)

set the entry mode so that characters are added right to left

Returns

Result of operation

int home

(

)

Returns to the original coordinates (0,0)

Returns

Result of the operation

int scrollDisplayLeft

(

)

Scroll the display left, without changing the character RAM

Returns

Result of operation

int scrollDisplayRight

(

)

Scroll the display right, without changing the character RAM

Returns

Result of operation

int setCursor	(	int	row,
		int	column
	)

Sets the cursor to specified coordinates

Parameters

row	Row to set the cursor to
column	Column to set the cursor to

Returns

Result of the operation

int write

(

String

msg

)

Writes a string to the LCD

Parameters

msg	std::string to write to the display; note: only ASCII characters are supported

Returns

Result of the operation

Inheritance diagram for Lcm1602:

Collaboration diagram for Lcm1602:

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/lcd/Lcm1602.java
