SSD1327 Class Reference

API for SSD1327 I2C-controlled OLED displays. More...

Detailed Description

• ID: ssd1327
• Name: SSD1327 OLED Display
• Other Names: Grove OLED Display 1.12"
• Category: display
• Manufacturer: seeed adafruit
• Link: http://garden.seeedstudio.com/images/8/82/SSD1327_datasheet.pdf
• Link: http://www.seeedstudio.com/wiki/Grove_-_OLED_Display_1.12%22
• Connection: i2c

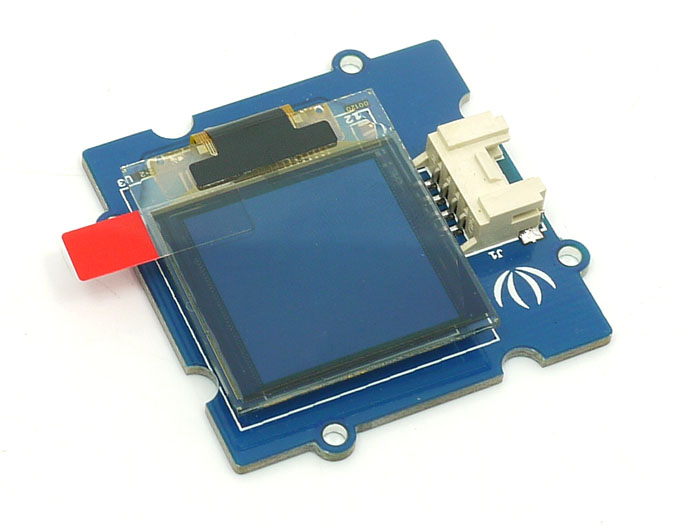

SSD1327 is a 96x96 dot-matrix OLED/PLED segment driver with a controller. This implementation was tested using the Grove LED 96×96 Display module, which is an OLED monochrome display.

        upm_i2clcd.SSD1327 lcd = new upm_i2clcd.SSD1327(0);

        // If you don't set the display to be white, the seeed logo will appear
        // jagged
        lcd.setGrayLevel((short) 12);

        byte[] image = new byte[SeeedLogo.length];
        for (int i = 0; i < SeeedLogo.length; i++)
            image[i] = (byte) SeeedLogo[i];

        lcd.draw(image);

        // Simple print hello world
        for (short i = 0; i < 12; i++) {
            lcd.setCursor(i, 0);
            lcd.setGrayLevel(i);
            lcd.write("Hello World");
        }

Public Member Functions
synchronized void	delete ()
	SSD1327 (int bus, int address)
	SSD1327 (int bus)
int	draw (byte[] data)
void	setGrayLevel (short level)
int	write (String msg)
int	setCursor (int row, int column)
int	clear ()
int	home ()
Public Member Functions inherited from LCD
synchronized void	delete ()
int	write (int x, int y, String msg)
int	write (String msg)
int	setCursor (int row, int column)
int	clear ()
int	home ()
String	name ()

Constructor & Destructor Documentation

SSD1327	(	int	bus,
		int	address
	)

SSD1327 constructor; calls libmraa initialisation functions

Parameters

bus	I2C bus to use
address	Slave address the LCD is registered on

Member Function Documentation

int clear

(

)

Clears the display of all characters

Returns

Result of the operation

int home

(

)

Returns to the original coordinates (0,0)

Returns

Result of the operation

int setCursor	(	int	row,
		int	column
	)

Sets the cursor to specified coordinates

Parameters

row	Row to set the cursor to
column	Column to set the cursor to

Returns

Result of the operation

void setGrayLevel

(

short

level

)

Sets the gray level for the LCD panel

Parameters

gray	level from 0 to 255

Returns

Result of the operation

int write

(

String

msg

)

Writes a string to the LCD

Parameters

msg	std::string to write to the display; note: only ASCII characters are supported

Returns

Result of the operation

Inheritance diagram for SSD1327:

Collaboration diagram for SSD1327:

---

The documentation for this class was generated from the following file:

• /var/lib/jenkins/workspace/upm-doc-stable/build-33/src/lcd/SSD1327.java
